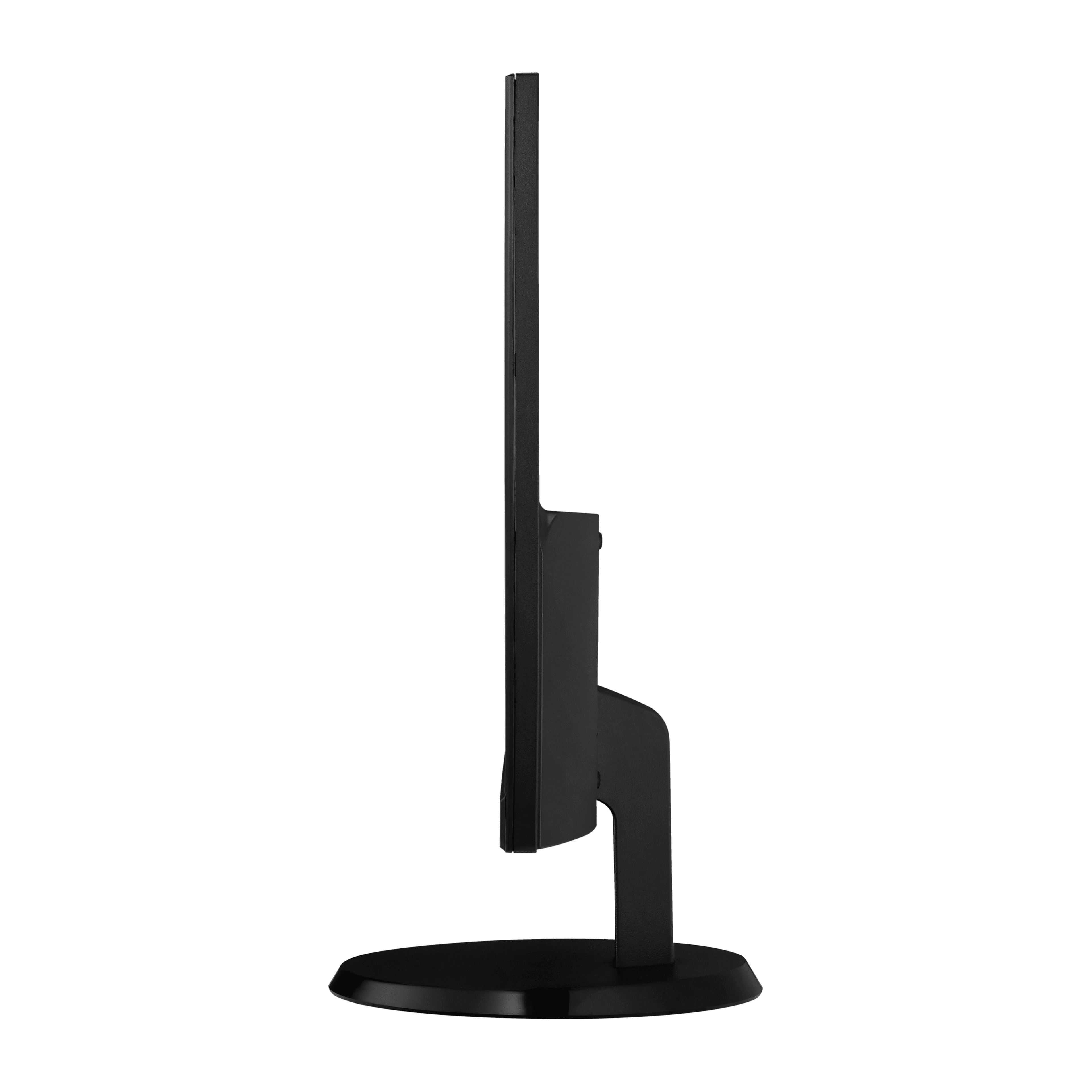

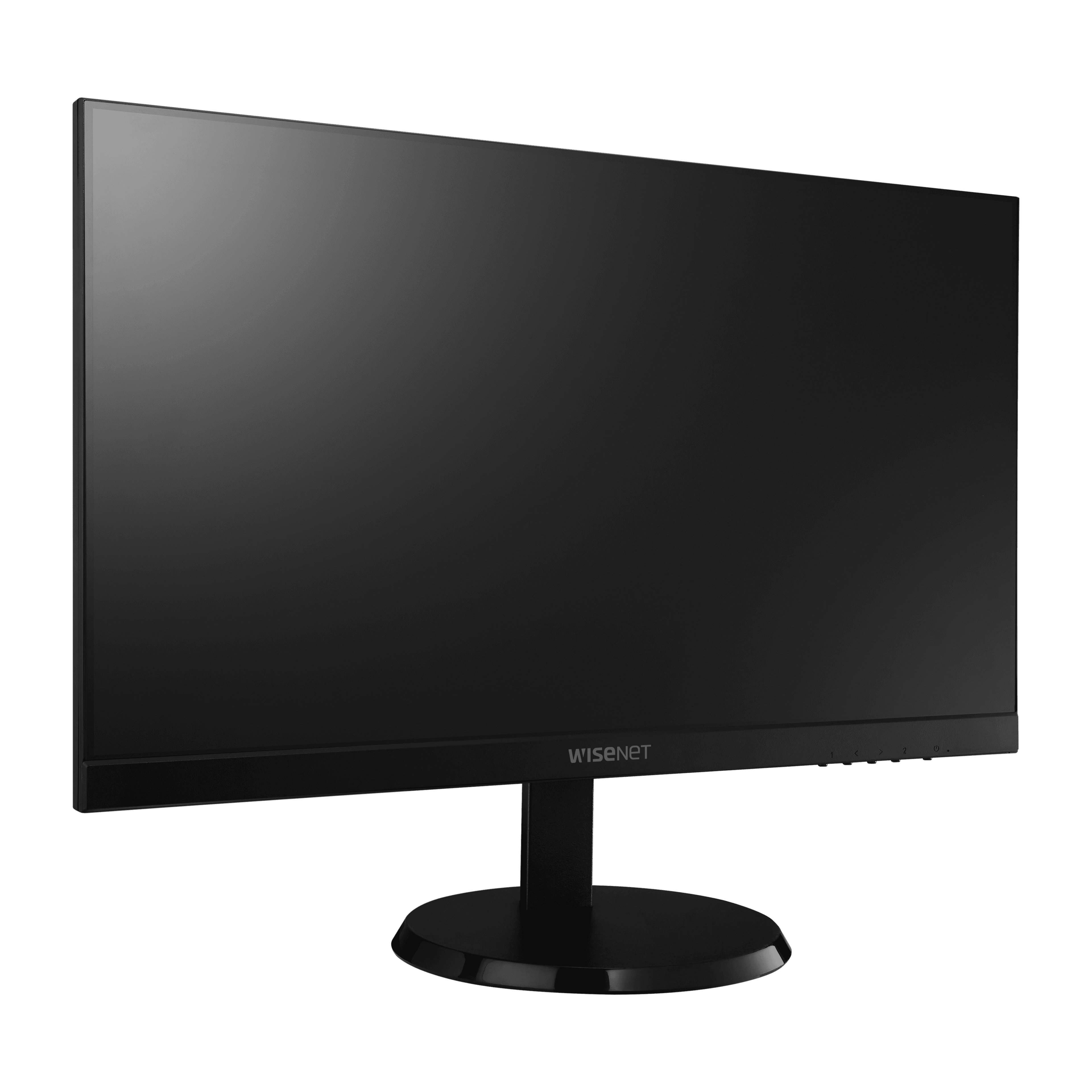

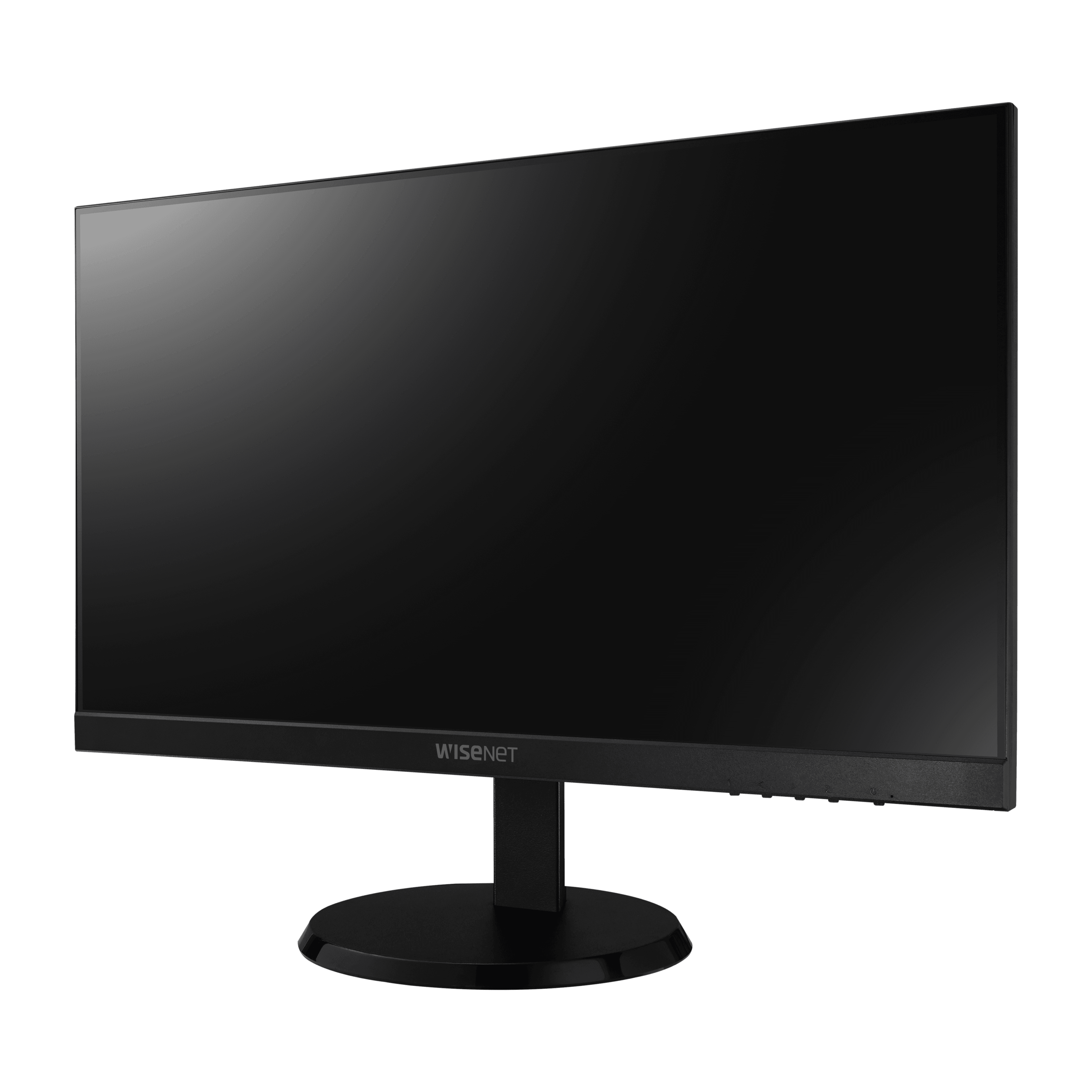

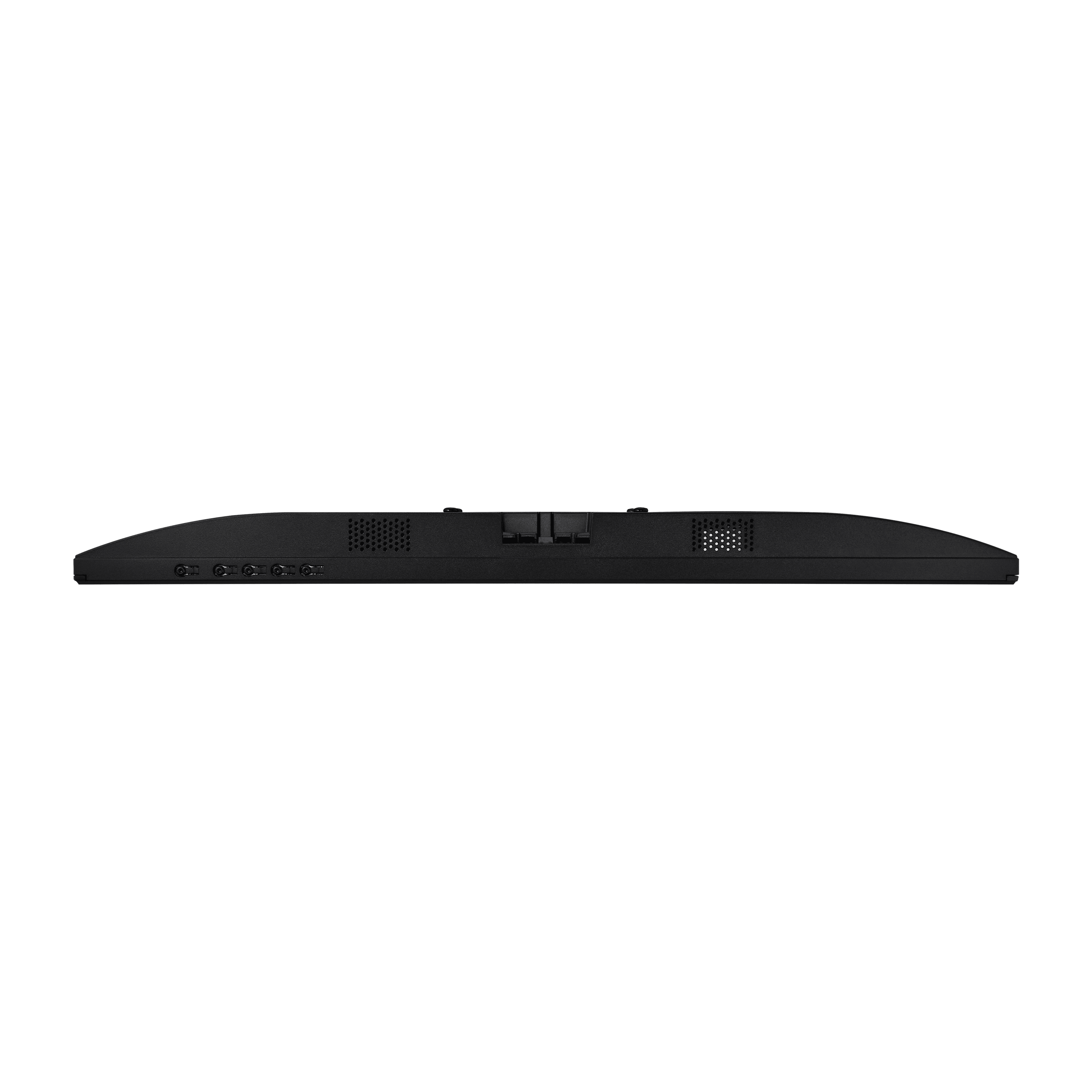

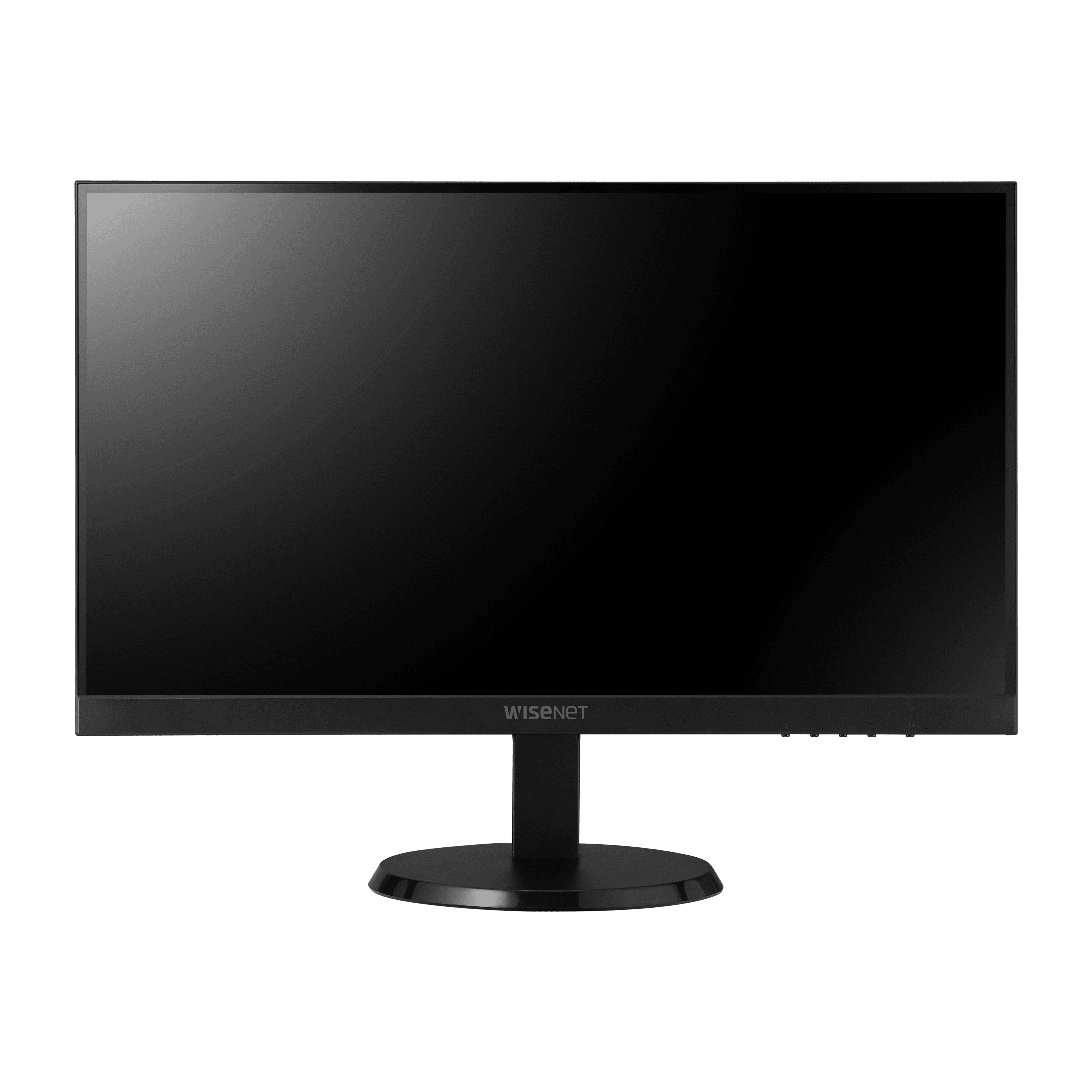

SMT-2212
22" LED monitorKey Features
• 22” FHD Monitor, support up to 1920*1080 60Hz (FHD)
• Brightness 250 cd/m²（Typ）, Contrast 2000:1(Min), 3000:1(Typ)
• Viewing Angle (H/V) : 178°/178°, Response Time : 6.5ms(Typical)
• Video Input : HDMI(1), VGA(1)
• Framelss design with monitor stand
• Panel Life : 30,000 hours
• Designed and tested on 24/7 operation
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SMT-2212_230314_RU.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260202_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_DE.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_ES.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_FR.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_IT.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_PL.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_TR.pdf | 2026-04-19 | |
| Manuals | Manuals_SMT-2212_260220_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SMT-2212_221025_Common_O.pdf | 2026-04-19 | |
| CAD | CAD_SMT-2212_240321_Common.dwg | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SMT-2212_220929_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_221026_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_221027_KO_SDoC_KC.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_221031_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_CB.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230315_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230321_KO_KC(SAFETY).pdf | 2026-04-19 | |
| Certification | Certification_SMT-2212_230224_EN_FCC-IC.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SMT-2212_20251107_EN_162918.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SMT-2212_230314_CS.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_DE.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_EN.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_ES.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_FR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_IT.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_NL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_PL.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_TR.pdf | 2026-04-19 | |
| Quick Guide | Quick-Guide_SMT-2212_230314_ZH.pdf | 2026-04-19 |
Specifications
Display
| Type | LED Monitor | |
| Screen Size | 22inch | |
| Max. Resolution | 1920x1080 | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 3000:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7M | |
| Response Time | 6.5ms | |
| Panel Life | 30,000 hours |
Interface
| Video | Connectors | VGA(1), HDMI(1) |
| VGA | Connector | VGA |
| Available Format | 1920x1080@60Hz | |
| HDMI | Connector | HDMI |
| Available Format | 1920x1080@60Hz |
On Screen Display
| Functions | VESA™ DPMS Compatible | |
| Language | English, French, German, Italian, Simplified Chinese, Traditional Chinese, Korean, Japanese, Espanola, Portuguese, Russian, Arabic |
General
| Electrical | Input Voltage | DC 12V 5A, Adapter included |
| Power Consumption | 30W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions with Stand (WxHxD) | 491.9x186.7x371.4mm(19.4x7.4x14.6") |
| Dimensions without Stand (WxHxD) | 491.9x36.1x289.4mm(19.4x1.4x11.4") | |
| Weight | 2.59Kg(5.7lb) | |
| Packing Dimension (WxHxD) | 542*106*352mm(21.3x4.2x13.9") | |
| Packing Weight | 3.13Kg(6.9lb) | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100x100mm |
Display
| Type | LED Monitor | |
| Screen Size | 22inch | |
| Max. Resolution | 1920x1080 | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 3000:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7M | |
| Response Time | 6.5ms | |
| Panel Life | 30,000 hours |
Interface
| Video | Connectors | VGA(1), HDMI(1) |
| VGA | Connector | VGA |
| Available Format | 1920x1080@60Hz | |
| HDMI | Connector | HDMI |
| Available Format | 1920x1080@60Hz |
On Screen Display
| Functions | VESA™ DPMS Compatible | |
| Language | English, French, German, Italian, Simplified Chinese, Traditional Chinese, Korean, Japanese, Espanola, Portuguese, Russian, Arabic |
General
| Electrical | Input Voltage | DC 12V 5A, Adapter included |
| Power Consumption | 30W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions with Stand (WxHxD) | 491.9x186.7x371.4mm(19.4x7.4x14.6") |
| Dimensions without Stand (WxHxD) | 491.9x36.1x289.4mm(19.4x1.4x11.4") | |
| Weight | 2.59Kg(5.7lb) | |
| Packing Dimension (WxHxD) | 542*106*352mm(21.3x4.2x13.9") | |
| Packing Weight | 3.13Kg(6.9lb) | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100x100mm |
