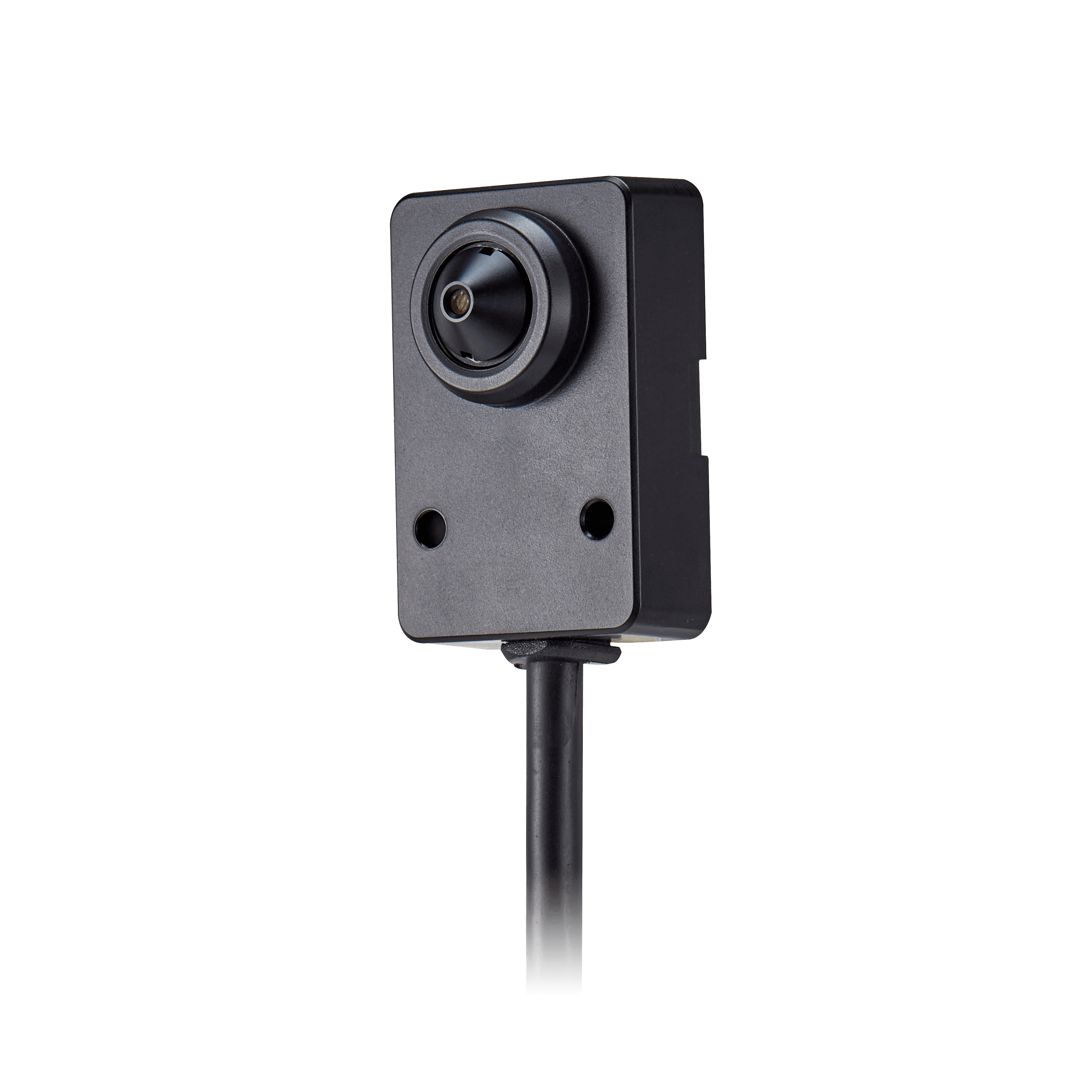

SLA-T4680VA
2MP Lens Module for PNM-9000QBKey Features
- Color : 0.06Lux(F2.5, 1/30sec)
- 4.6mm fixed focal
- Compatible with PNM-9000QB
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SLA-T4680VA_20210408_Common.dxf | 2026-07-20 | |
| CAD | CAD_SLA-T4680VA_20210408_Common.pdf | 2026-07-20 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SLA-T4680VA_20260612_EN_170042.pdf | 2026-07-20 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_SLA-T1080FA%2CSLA-T2480A%2CSLA-T4680A%2CSLA-T2480VA%2CSLA-T4680VA_250723_Common.pdf | 2026-07-20 | |
| Quick Guide | Quick%20Guide_SLA-T1080FA%2CSLA-T2480A%2CSLA-T4680A%2CSLA-T2480VA%2CSLA-T4680VA_250724_FR.pdf | 2026-07-20 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.06 |
| BW(1/30sec, 30IRE) | 0.06 |
Lens
| Focal Length (mm) | 4.6 | |
| Max. Aperture Ratio (F number) | Wide | 2.5 |
| Tele | 2.5 | |
| Angular Field of View | Horizontal | 73° |
| Vertical | 39° | |
| Diagonal | 85° | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Humidity | Less than 90% RH | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | Less than 90% RH |
Mechanical
| Color | Black | |
| Material | Plastic, Metal | |
| Product Dimensions | W30xH27.9xD45mm | |
| Product Weight | 321g | |
| Supported Products | XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.06 |
| BW(1/30sec, 30IRE) | 0.06 |
Lens
| Focal Length (mm) | 4.6 | |
| Max. Aperture Ratio (F number) | Wide | 2.5 |
| Tele | 2.5 | |
| Angular Field of View | Horizontal | 73° |
| Vertical | 39° | |
| Diagonal | 85° | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Humidity | Less than 90% RH | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | Less than 90% RH |
Mechanical
| Color | Black | |
| Material | Plastic, Metal | |
| Product Dimensions | W30xH27.9xD45mm | |
| Product Weight | 321g | |
| Supported Products | XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B |
