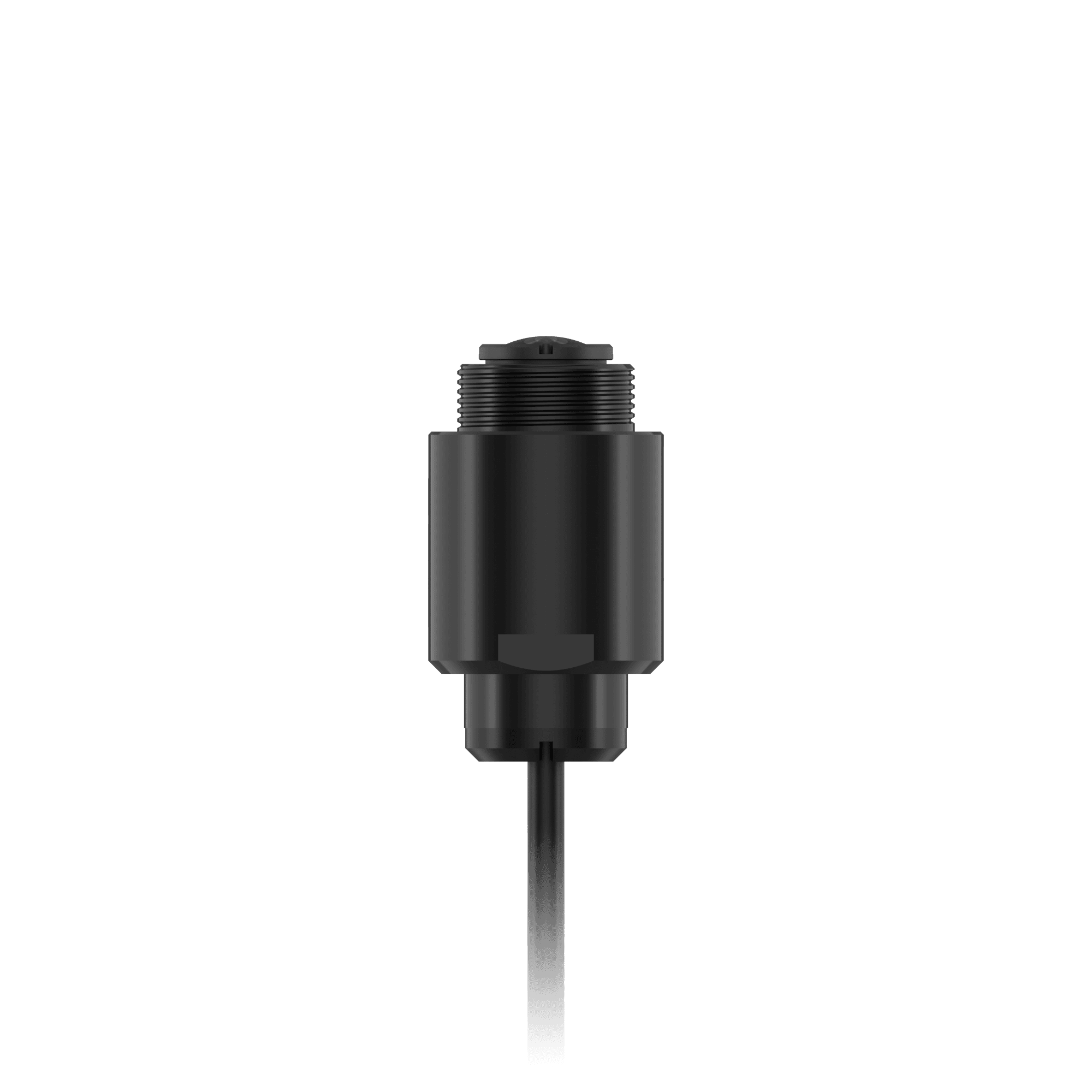

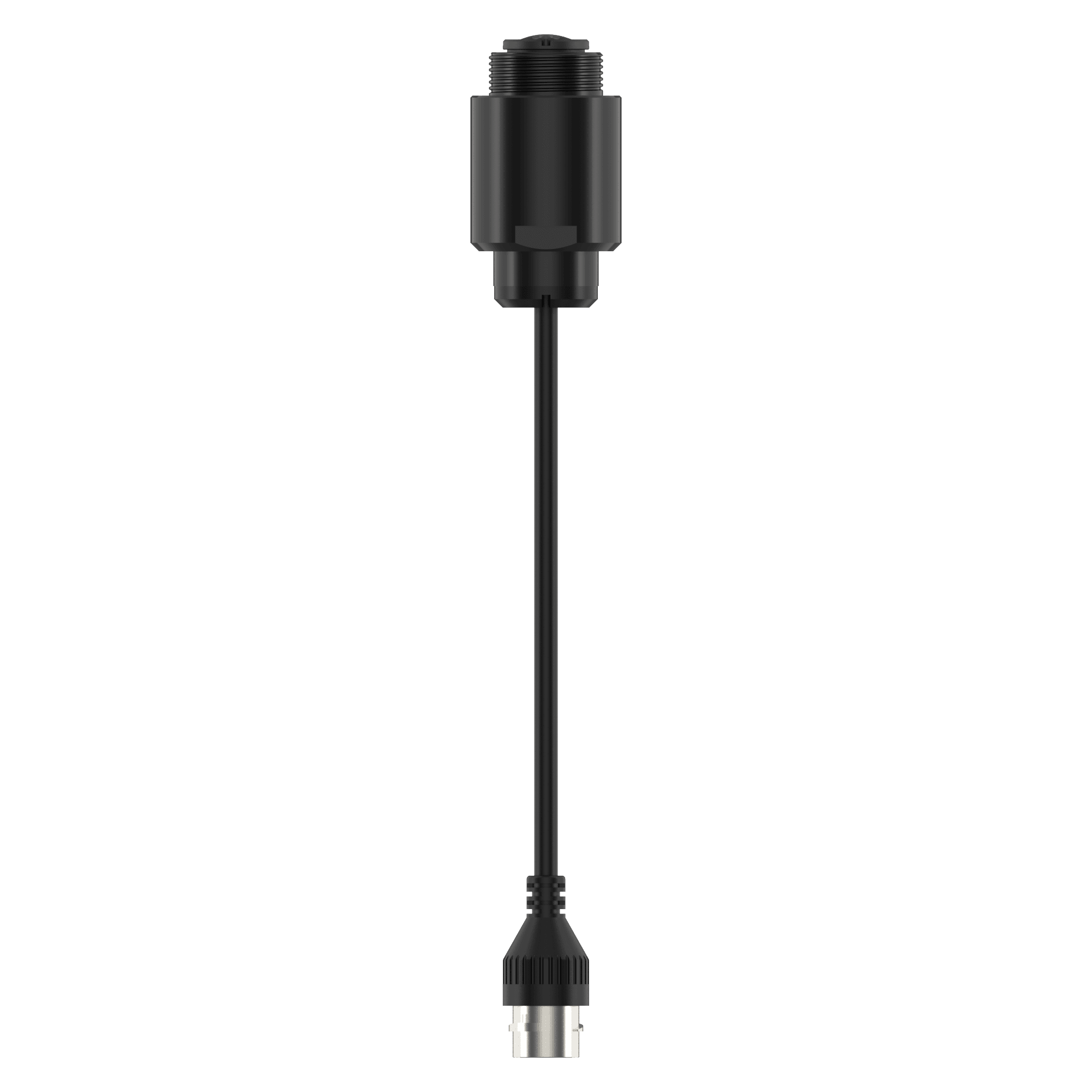

SLA-T2480WA
2MP Lens ModuleKey Features
- Color: 0.045Lux(F2.0, 1/30sec)
- 2.4mm fixed focal
- Product Dimensions / Weight: ø35x63.2mm(ø1.38x2.49"), Cable: 8m(26.2ft)
- IP66, NEMA 4X
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SLA-T2480WA_231124_EN.dxf | 2026-07-31 | |
| CAD | CAD_SLA-T2480WA_231124_EN.pdf | 2026-07-31 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SLA-T2480WA_20260612_EN_170501.pdf | 2026-07-31 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_SLA-T2480WDA%2CSLA-T2480WA%2CSLA-F2480WDA%2CSLA-F2480WA_251017_EN.pdf | 2026-07-31 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.045 |
| BW(1/30sec, 30IRE) | 0.045 |
Lens
| Focal Length (mm) | 2.4 | |
| Max. Aperture Ratio (F number) | Wide | 2.0 |
| Tele | 2.0 | |
| Angular Field of View | Horizontal | 138° |
| Vertical | 73° | |
| Diagonal | 165° | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH |
Mechanical
| Color | Black | |
| Material | Plastic | |
| Product Dimensions | ø35x63.2mm(ø1.38x2.49"), Cable: 8m(26.2ft) | |
| Product Weight | 101g(0.22lb) | |
| Supported Products | XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B |
Certification & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | EN IEC 63000, IEC 60529 IP66, NEMA 250 type 4X |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.045 |
| BW(1/30sec, 30IRE) | 0.045 |
Lens
| Focal Length (mm) | 2.4 | |
| Max. Aperture Ratio (F number) | Wide | 2.0 |
| Tele | 2.0 | |
| Angular Field of View | Horizontal | 138° |
| Vertical | 73° | |
| Diagonal | 165° | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH |
Mechanical
| Color | Black | |
| Material | Plastic | |
| Product Dimensions | ø35x63.2mm(ø1.38x2.49"), Cable: 8m(26.2ft) | |
| Product Weight | 101g(0.22lb) | |
| Supported Products | XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B |
Certification & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | EN IEC 63000, IEC 60529 IP66, NEMA 250 type 4X |
