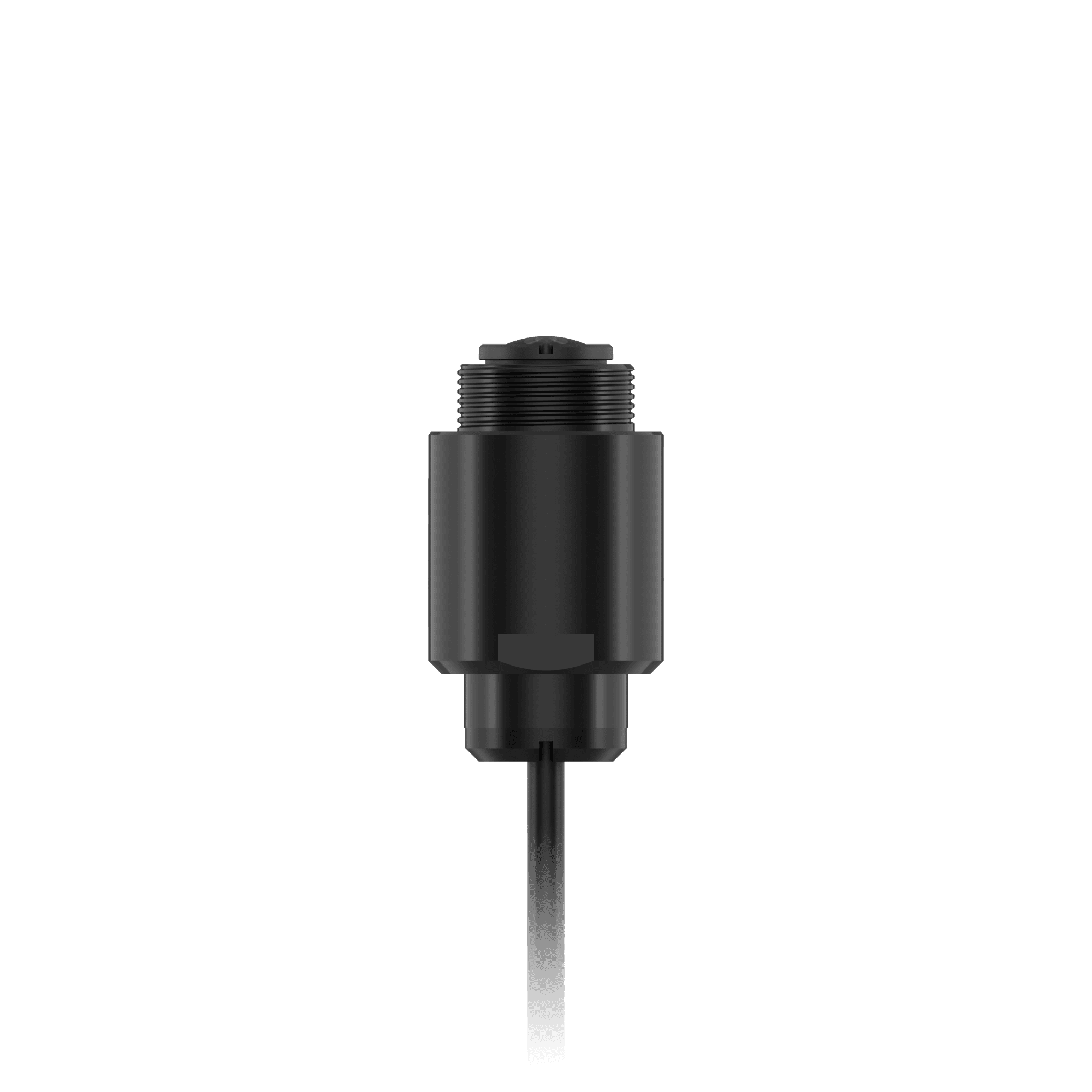

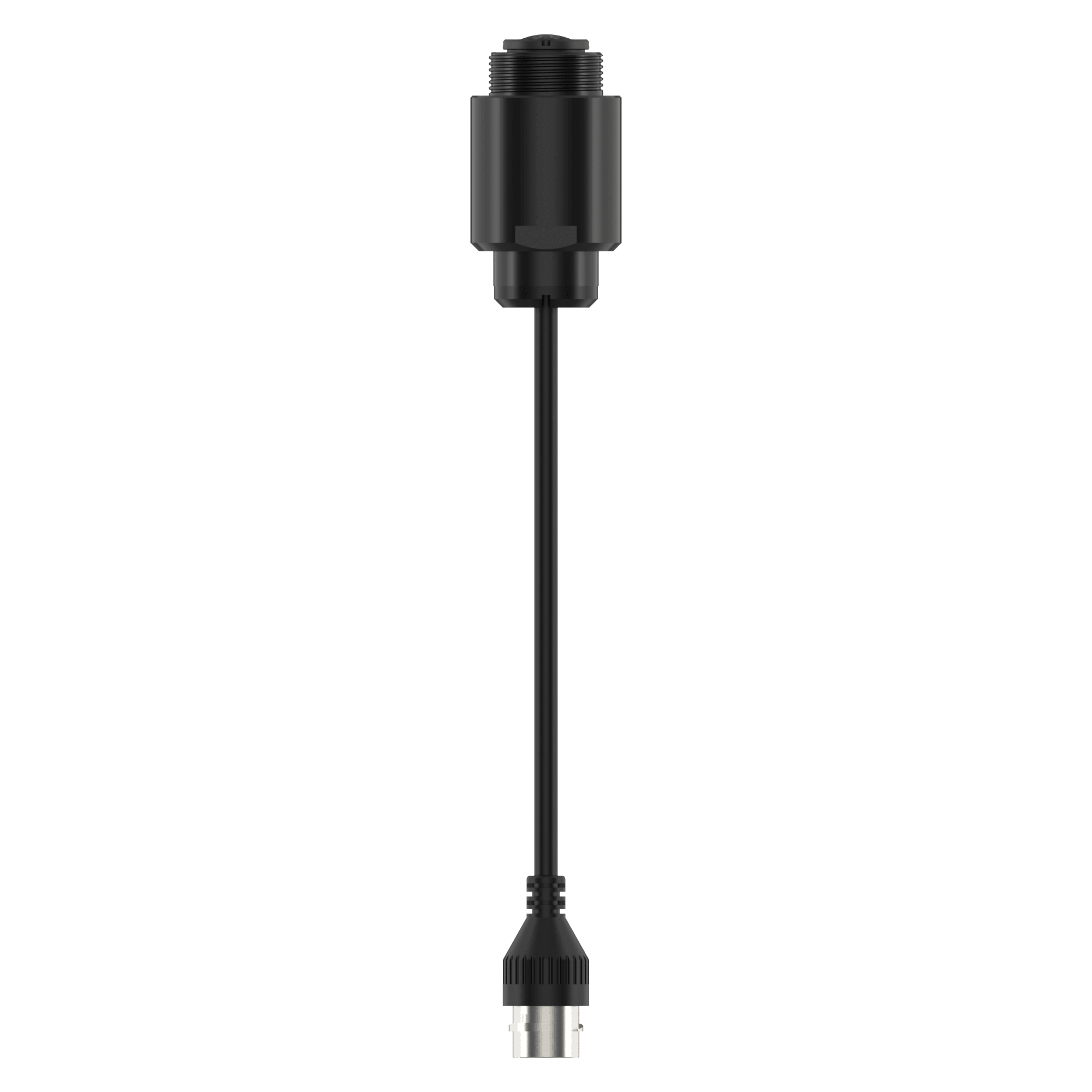

SLA-T16080WANew
2MP, 16mm Waterproof Lens for XNB-6002Key Features
- Color: 0.045Lux(F1.8, 1/30sec)
- 16mm fixed focal
- Product Dimensions / Weight: ø35x65.1mm(ø1.38x2.56"), 102.25g(0.225lb)
- IP66, NEMA 4X
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SLA-T16080WA_251231_Common.dxf | 2026-09-23 | |
| CAD | CAD_SLA-T16080WA_251231_Common.pdf | 2026-09-23 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SLA-T16080WA_260102_EN_IECEN60068-2.pdf | 2026-09-23 | |
| Certification | Certification_SLA-T16080WA_260102_EN_IP66.pdf | 2026-09-23 | |
| Certification | Certification_SLA-T16080WA_260120_EN_NEMA4X.pdf | 2026-09-23 | |
| Certification | Certification_SLA-T16080WA_260204_EN_DoC_CE.pdf | 2026-09-23 | |
| Certification | Certification_SLA-T16080WA_260204_EN_DoC_UKCA.pdf | 2026-09-23 | |
| Certification | Certification_SLA-T16080WA_260204_EN_EMC_CE%2CUKCA.pdf | 2026-09-23 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SLA-T16080WA_20260923_EN_141136.pdf | 2026-09-23 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_SLA-T16080WA_260202_EN.pdf | 2026-09-23 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.045 |
| BW(1/30sec, 30IRE) | 0.045 |
Lens
| Focal Length (mm) | 16mm | |
| Max. Aperture Ratio (F number) | Wide | F1.8 |
| Tele | F1.8 | |
| Angular Field of View | Horizontal | 19.5° |
| Vertical | 11° | |
| Diagonal | 22.3° | |
| Min. Object Distance | 25m | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH |
Mechanical
| Color | Black | |
| Material | Metal | |
| Product Dimensions | ø35x65.1mm(ø1.38x2.56"), Cable: 8m(26.2ft) | |
| Product Weight | 102.25g(0.225lb) |
Certification & Standards
| EMC | CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A | |
| Environment | EN IEC 63000, IEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10 |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.045 |
| BW(1/30sec, 30IRE) | 0.045 |
Lens
| Focal Length (mm) | 16mm | |
| Max. Aperture Ratio (F number) | Wide | F1.8 |
| Tele | F1.8 | |
| Angular Field of View | Horizontal | 19.5° |
| Vertical | 11° | |
| Diagonal | 22.3° | |
| Min. Object Distance | 25m | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH |
Mechanical
| Color | Black | |
| Material | Metal | |
| Product Dimensions | ø35x65.1mm(ø1.38x2.56"), Cable: 8m(26.2ft) | |
| Product Weight | 102.25g(0.225lb) |
Certification & Standards
| EMC | CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A | |
| Environment | EN IEC 63000, IEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10 |
