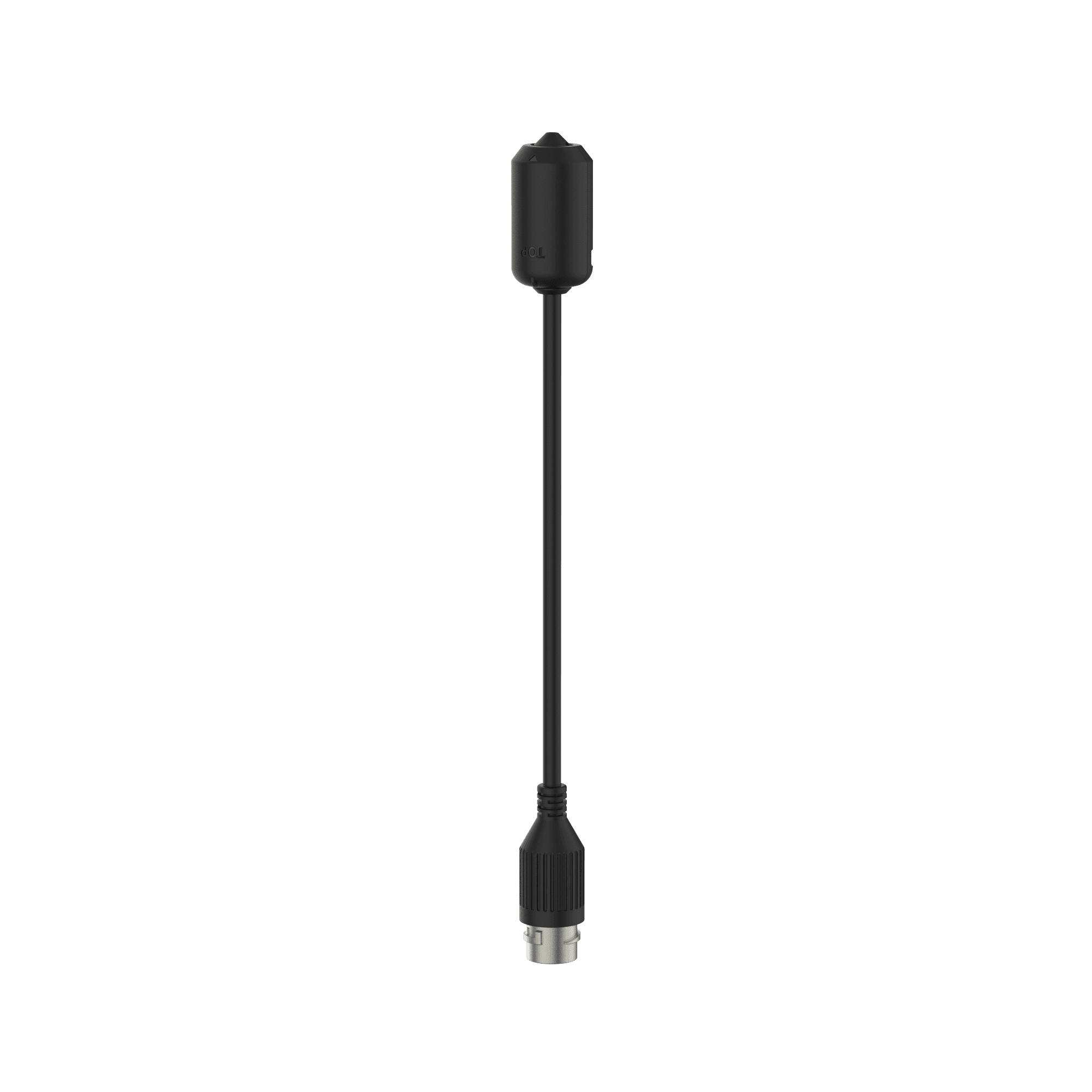

SLA-F4780A
5MP Lens ModuleKey Features
- Discrete Pinhole type
- Compact Cylindrical Design
- 4.72mm Fixed Focal Length
- 70° Horizontal Field of View (HFoV)
- 8m Cable for Flexible Installation
- Compatible with PNM-C20000QB
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SLA-F4780A_250620_Common.dxf | 2026-06-08 | |
| CAD | CAD_SLA-F4780A_250620_Common.pdf | 2026-06-08 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SLA-F4780A_250624_EN_DoC_CE.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A_250624_EN_DoC_UKCA.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A_250624_EN_EMC_CE%2CUKCA.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A_250624_EN_FCC%2CIC.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A_250624_EN_RCM.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A_250624_EN_VCCI.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A%2CSLA-F2480A_250724_EN_Report_UL.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A%2CSLA-F2480A_250724_EN_UL.pdf | 2026-06-08 | |
| Certification | Certification_SLA-F4780A%2CSLA-F2480A_250825_EN_IECEN60068-2.pdf | 2026-06-08 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SLA-F4780A_20260608_EN_172842.pdf | 2026-06-08 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_SLA-F1080FA%2CSLA-F2480A%2CSLA-F4780A%2CSLA-F2480VA%2CSLA-F4780VA_250708_EN.pdf | 2026-06-08 | |
| Quick Guide | Quick%20Guide_SLA-F1080FA%2CSLA-F2480A%2CSLA-F4780A%2CSLA-F2480VA%2CSLA-F4780VA_250723_Common.pdf | 2026-06-08 | |
| Quick Guide | Quick%20Guide_SLA-F1080FA%2CSLA-F2480A%2CSLA-F4780A%2CSLA-F2480VA%2CSLA-F4780VA_250724_FR.pdf | 2026-06-08 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.09 |
| BW(1/30sec, 30IRE) | 0.09 |
Lens
| Focal Length (mm) | 4.72 | |
| Max. Aperture Ratio (F number) | Wide | 2.07 |
| Tele | 2.07 | |
| Angular Field of View | Horizontal | 70° |
| Vertical | 50° | |
| Diagonal | 96° | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Humidity | 0~95% RH | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | Less than 90% RH |
Mechanical
| Color | Black | |
| Material | Plastic | |
| Product Dimensions | ø24x44.9mm(ø0.94x1.77"), Cable: 8m(26.2ft) | |
| Product Weight | 34.2g(0.08lb), Cable: 350g(0.77lb) | |
| Supported Products | PNM-C20000QB |
Certification & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.09 |
| BW(1/30sec, 30IRE) | 0.09 |
Lens
| Focal Length (mm) | 4.72 | |
| Max. Aperture Ratio (F number) | Wide | 2.07 |
| Tele | 2.07 | |
| Angular Field of View | Horizontal | 70° |
| Vertical | 50° | |
| Diagonal | 96° | |
| Mount Type | RJ12 connected with main unit | |
| Focus Control | Fixed |
Environmental & Electrical
| Operating Condition | Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Humidity | 0~95% RH | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | Less than 90% RH |
Mechanical
| Color | Black | |
| Material | Plastic | |
| Product Dimensions | ø24x44.9mm(ø0.94x1.77"), Cable: 8m(26.2ft) | |
| Product Weight | 34.2g(0.08lb), Cable: 350g(0.77lb) | |
| Supported Products | PNM-C20000QB |
Certification & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
