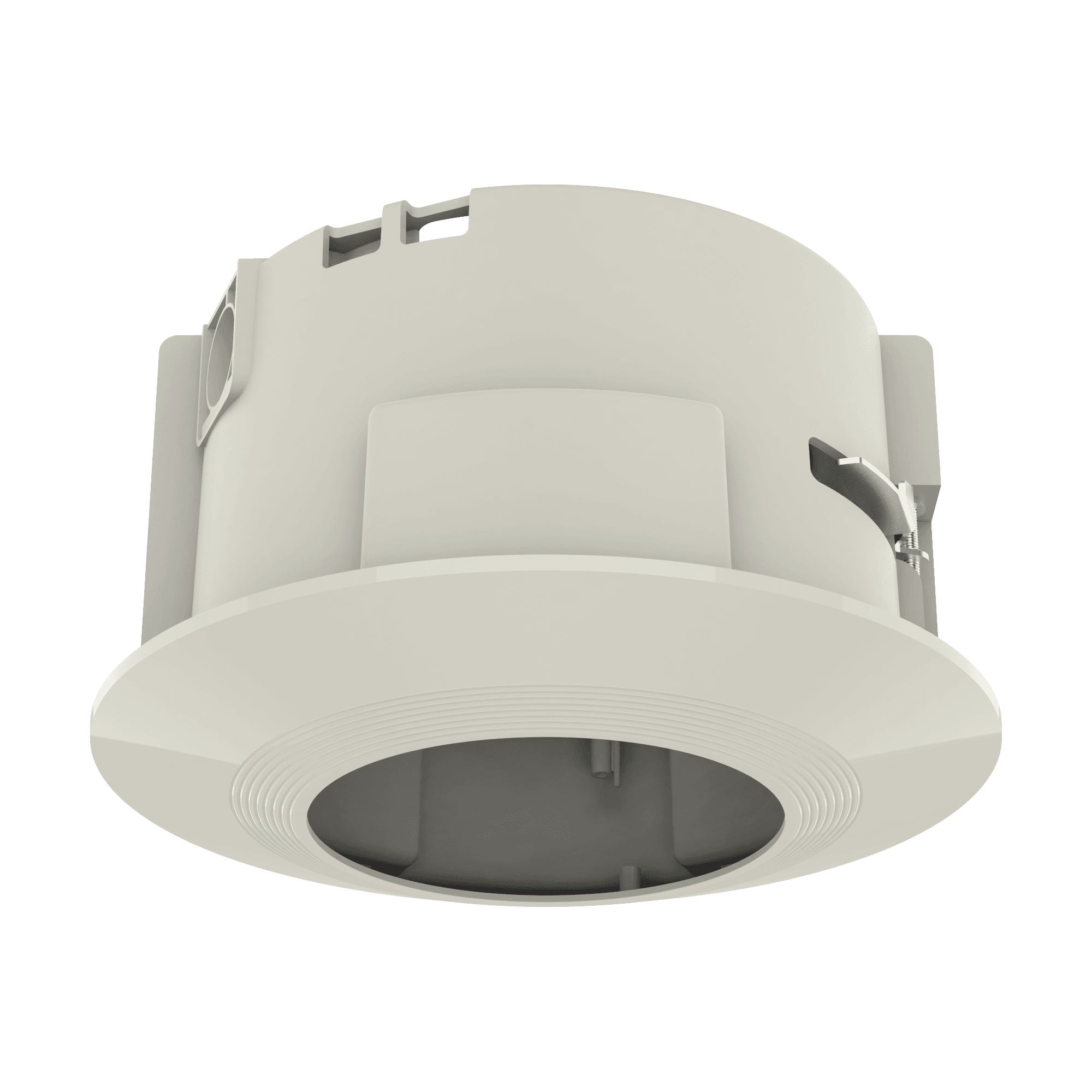

SHP-1680F
Flush MountKey Features
- Can be used with XNV-6120/6120R/6085, XND-6085/6085V
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHP-1680F,SHP-1680FW_230317_EN.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHP-1680F_20260227_EN_155342.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SHP-1680F_181207_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SHP-1680F_181207_Common_mm.rfa | 2026-04-19 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_SHP-1680F_241023_Common.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | Ivory | |
| Material | PC(Polycarbonate) | |
| Product dimensions / weight | ø232x135.5mm(ø9.13x5.33") / 605g(1.33lb) | |
| Tile thickness | ~40mm | |
| Supported products | XNP-6120H ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | Ivory | |
| Material | PC(Polycarbonate) | |
| Product dimensions / weight | ø232x135.5mm(ø9.13x5.33") / 605g(1.33lb) | |
| Tile thickness | ~40mm | |
| Supported products | XNP-6120H ※ For further compatible models, please visit our website or use Toolbox |
