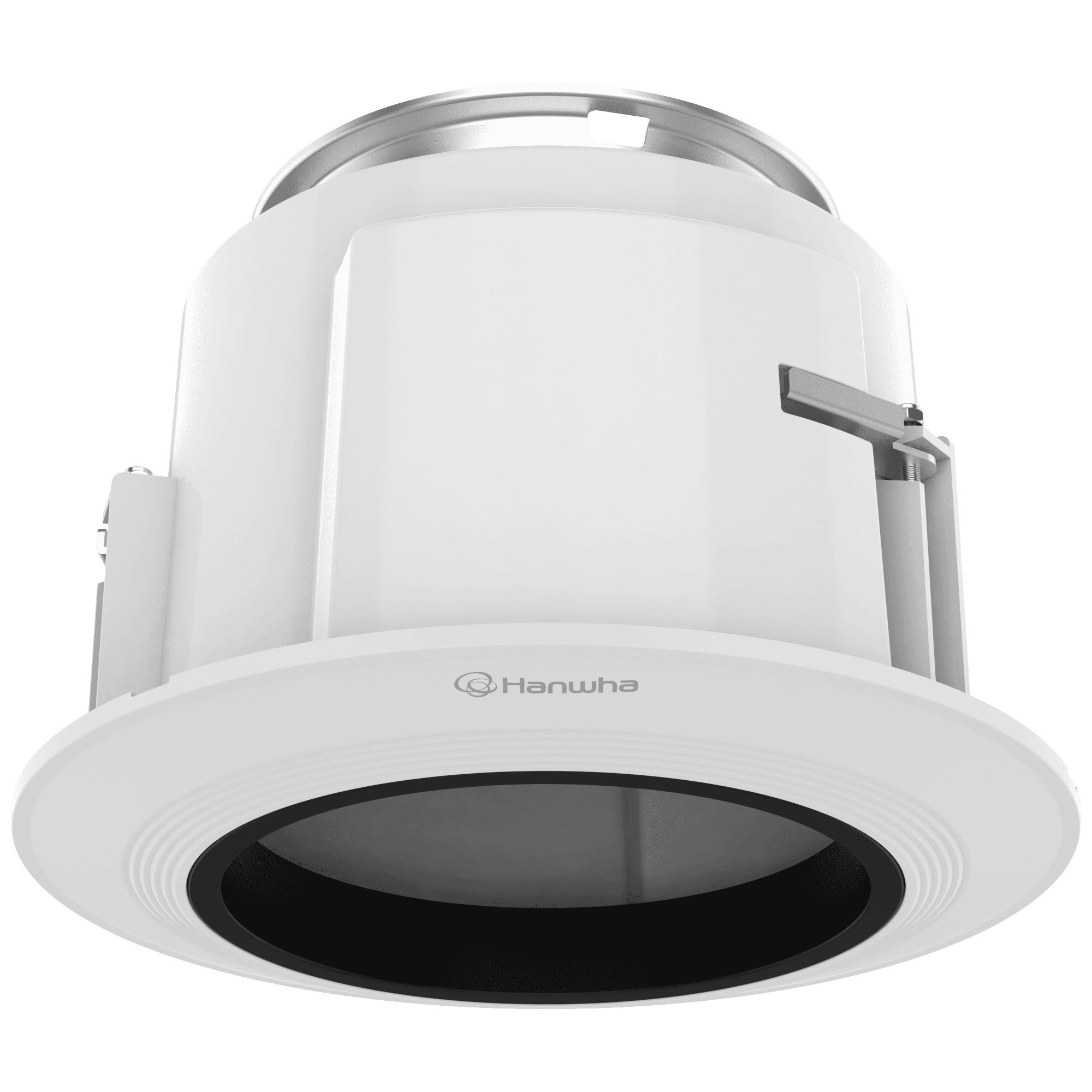

SHP-1563FW
In-ceiling MountKey Features
- Enclosure : Aluminum, Plastic
- Dimensions : Φ268x190mm (Φ10.55x7.48”)
- Weight : 1.2kg (2.65lb)
- Color : White
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHP-1563FPW,SHP-1563FW_230412_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHP-1560FW,SHP-1563FW_240102_Common.dxf | 2026-04-19 | |
| CAD | CAD_SHP-1560FW,SHP-1563FW_240102_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHP-1563FW_20260227_EN_092324.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø268x190mm(ø10.55x7.48") / 1200g(2.65lb) | |
| Tile thickness | 3~70mm | |
| Conduit hole | 19.1mm(3.4")(M25), 12.7mm(1/2")(M20) | |
| Supported products | XNP-C6403, XNP-C6403R, QNP-6250R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø268x190mm(ø10.55x7.48") / 1200g(2.65lb) | |
| Tile thickness | 3~70mm | |
| Conduit hole | 19.1mm(3.4")(M25), 12.7mm(1/2")(M20) | |
| Supported products | XNP-C6403, XNP-C6403R, QNP-6250R ※ For further compatible models, please visit our website or use Toolbox |
