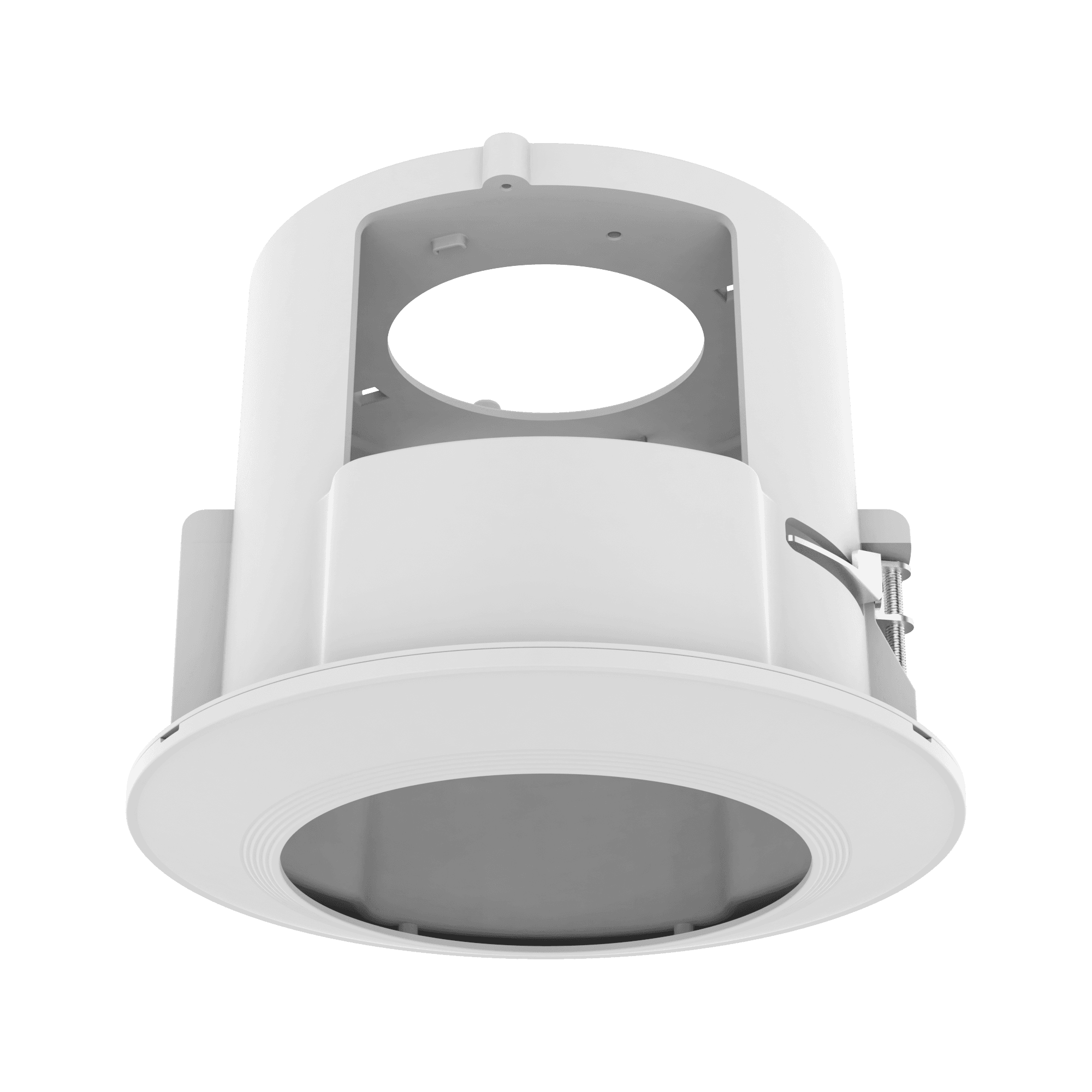

SHP-1520FW
In-ceiling MountKey Features
- Dimension : W212.1 X H164.5mm
- Weight : 450g
- Temperature : -10°C ~ 50°C
- Material : PC
- Color : White
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHP-1520FW_230326_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SHP-1520FW_230326_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHP-1520FW_200327.dxf | 2026-04-19 | |
| CAD | CAD_SHP-1520FW_200327.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHP-1520FW_20260227_EN_132815.pdf | 2026-04-19 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_SHP-1520FW_241023_Common.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate) | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø212.1x164.5mm / 450g |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate) | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø212.1x164.5mm / 450g |
Accessories
QNP-6320
QNP-6250
