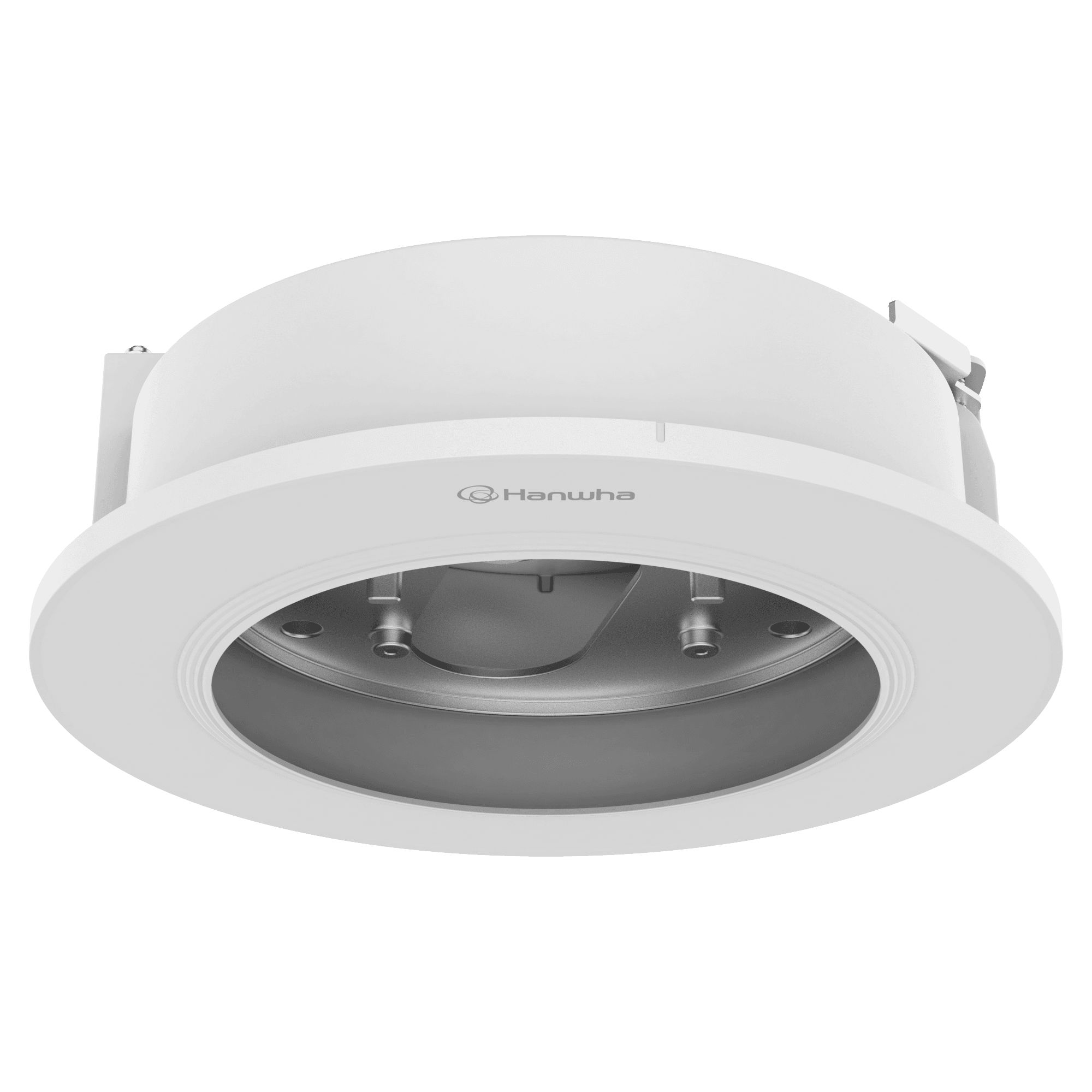

Product Image 1
SHD-2000FPW
In-ceiling Mount

Key Features

  • Material : Enclosure : Aluminum / Top cover : Polycarbonate(PC)
  • Color : White
  • Product dimensions / weight : ø265.1x96.8mm(ø10.44x3.81") / 1500g (3.31lb)
    ※ Ceiling hole size : ø240mm (ø9.45")
  • Max. load : 3.5kg (7.72lb)
    ※ Maximum load of ceiling board : 6.5kg (13.3lb)
NDAA

Downloads

View Selection

CAD

CategoryFile NameLast Update
CADCAD_SHD-2000FPW_240419_Common_F.dxf2026-04-19
CADCAD_SHD-2000FPW_240419_Common.pdf2026-04-19

DataSheet

CategoryFile NameLast Update
DataSheetDataSheet_SHD-2000FPW_20260226_EN_170235.pdf2026-04-19

Specifications

Mechanical

ColorWhite
MaterialPC(Polycarbonate), Aluminum
RAL codeRAL9003
Product dimensions / weightø265.1x96.8mm(ø10.44x3.81") / 1500g(3.31lb)
Tile thickness10~70mm(0.4~2.8")
Mount Screw sizeTR20
Max. load3.5kg(7.72lb) ※ Maximum load of ceiling board: 6.5kg(13.3lb)
Conduit hole19.1mm(3/4")(M25), 12.7mm(1.2")(M20)
Supported productsPNM-C16013RVQ ※ For further compatible models, please visit our website or use Toolbox
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
