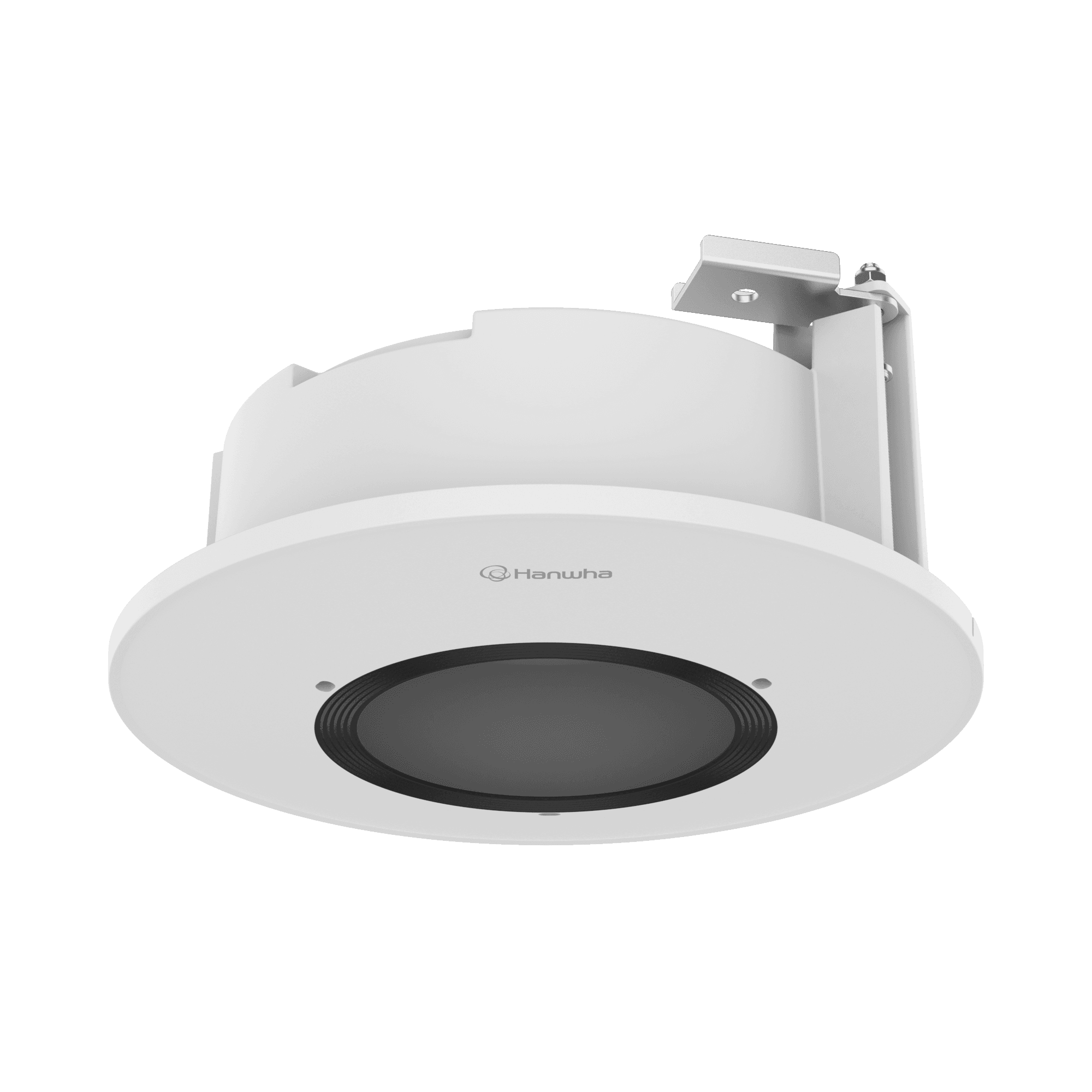

SHD-1601FPW
Plenum-rated In-ceiling MountKey Features
- Material: Aluminum(Body), PC(Rim)
- Dimensions: Ø220x99.3mm (Ø8.66x3.91")
- Weight: 830g (1.83lb)
- Color: White
- Supported products: XNF-A9014RV/A9014R/A8014RV/A8014R
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHD-1601FPW%2CSHD-1602FPW_251217_EN.pdf | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHD-1601FPW_20260406_EN_083327.pdf | 2026-08-13 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø220x99.3mm(ø8.66x3.91") / 830g(1.83lb) | |
| Tile thickness | 5~70mm | |
| Mount Screw size | TR20 | |
| Max. load | 3.5kg | |
| Conduit hole | 19.1mm(3/4")(M25), 12.7mm(1/2")(M20) | |
| Supported products | XNF-A9014RV, XNF-A9014R, XNF-A8014RV, XNF-A8014R |
Acc. Selector
| Accessory Category | Mount | |
| Accessory Category 2 | In-ceiling | |
| Placement | In-ceiling | |
| Accessory Type | Plenum rated type Dome/Multi |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø220x99.3mm(ø8.66x3.91") / 830g(1.83lb) | |
| Tile thickness | 5~70mm | |
| Mount Screw size | TR20 | |
| Max. load | 3.5kg | |
| Conduit hole | 19.1mm(3/4")(M25), 12.7mm(1/2")(M20) | |
| Supported products | XNF-A9014RV, XNF-A9014R, XNF-A8014RV, XNF-A8014R |
Acc. Selector
| Accessory Category | Mount | |
| Accessory Category 2 | In-ceiling | |
| Placement | In-ceiling | |
| Accessory Type | Plenum rated type Dome/Multi |
