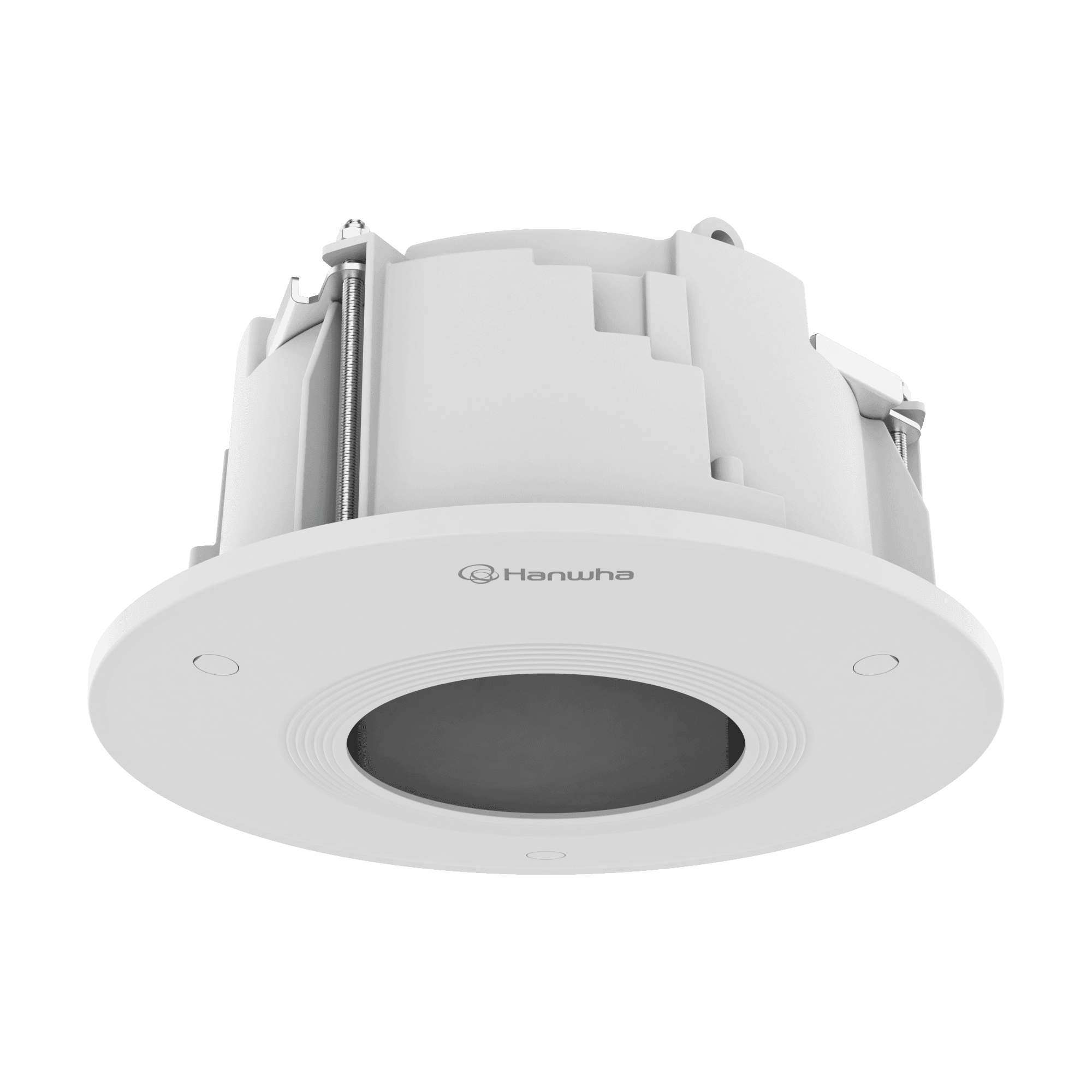

SHD-1600FPW
In-ceiling Mount

Key Features

  • Body: Aluminum / Rim : PC
  • Dimensions : Ø234 x H123.24mm (9.21" x 4.85")
  • Weight : 1,200g (2.65 lb)
  • Color : White
NDAA

Downloads

View Selection

Manuals

CategoryFile NameLast Update
ManualsManuals_SHD-1600FPW_230326_EN.pdf2026-04-19
ManualsManuals_SHD-1600FPW_230326_ZH.pdf2026-04-19

CAD

CategoryFile NameLast Update
CADCAD_SHD-1600FPW_201029_EN_website.dxf2026-04-19
CADCAD_SHD-1600FPW_201029_EN_website.pdf2026-04-19

DataSheet

CategoryFile NameLast Update
DataSheetDataSheet_SHD-1600FPW_20260227_EN_095416.pdf2026-04-19

BIM&Revit

CategoryFile NameLast Update
BIM&RevitBIM&Revit_SHD-1600FPW_201221_Common_inch.rfa2026-04-19
BIM&RevitBIM&Revit_SHD-1600FPW_201221_Common_mm.rfa2026-04-19

Specifications

Mechanical

ColorWhite
MaterialPC(Polycarbonate), Aluminum
RAL codeRAL9003
Product dimensions / weightø234x123.24mm(ø9.21x4.85") / 1200g(2.65lb)
Tile thickness5~70mm
Conduit hole19.1mm(3/4")(M25), 12.7mm(1/2")(M20)
Supported productsXND-C6083RV, XNV-C6083R ※ For further compatible models, please visit our website or use Toolbox
