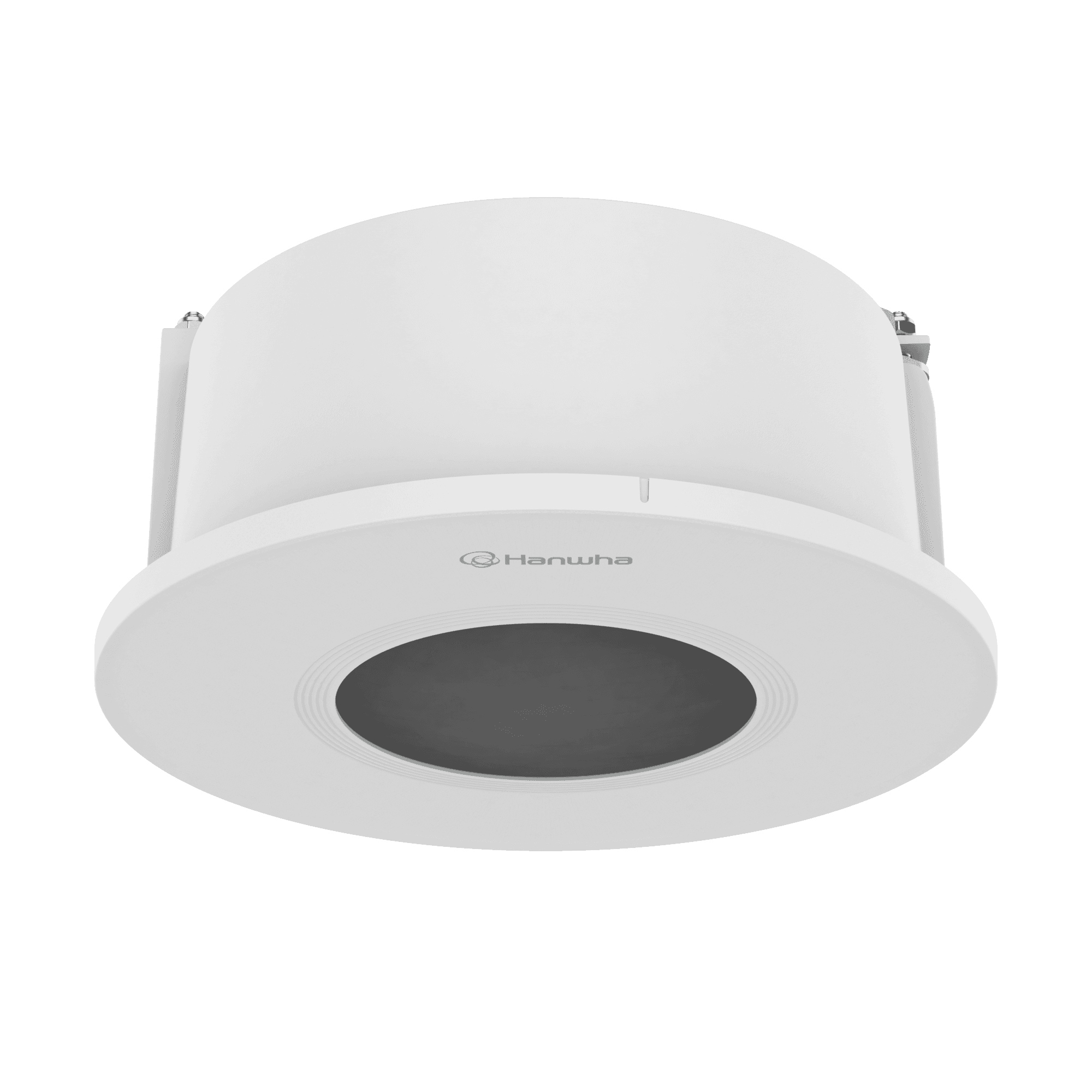

SHD-1400FPW
In-ceiling MountKey Features
- Color : White
- Material : Aluminum
- Product dimensions / weight : ø202.3x92.7mm(ø7.96x3.65") / 835g (1.84lb)
※ Ceiling hole size : ø185mm (ø7.28")
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHD-1400FPW,SHD-1400FW_230907_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHD-1400FPW_240828_Common.dxf | 2026-04-19 | |
| CAD | CAD_SHD-1400FPW_240828_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHD-1400FPW_20260227_EN_091516.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø202.3x92.7mm / 835g | |
| Tile thickness | 10~70mm | |
| Mount Screw size | TR20 | |
| Max. load | 2kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C6083R, QNV-C8083R, QNV-C9083R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø202.3x92.7mm / 835g | |
| Tile thickness | 10~70mm | |
| Mount Screw size | TR20 | |
| Max. load | 2kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C6083R, QNV-C8083R, QNV-C9083R ※ For further compatible models, please visit our website or use Toolbox |
