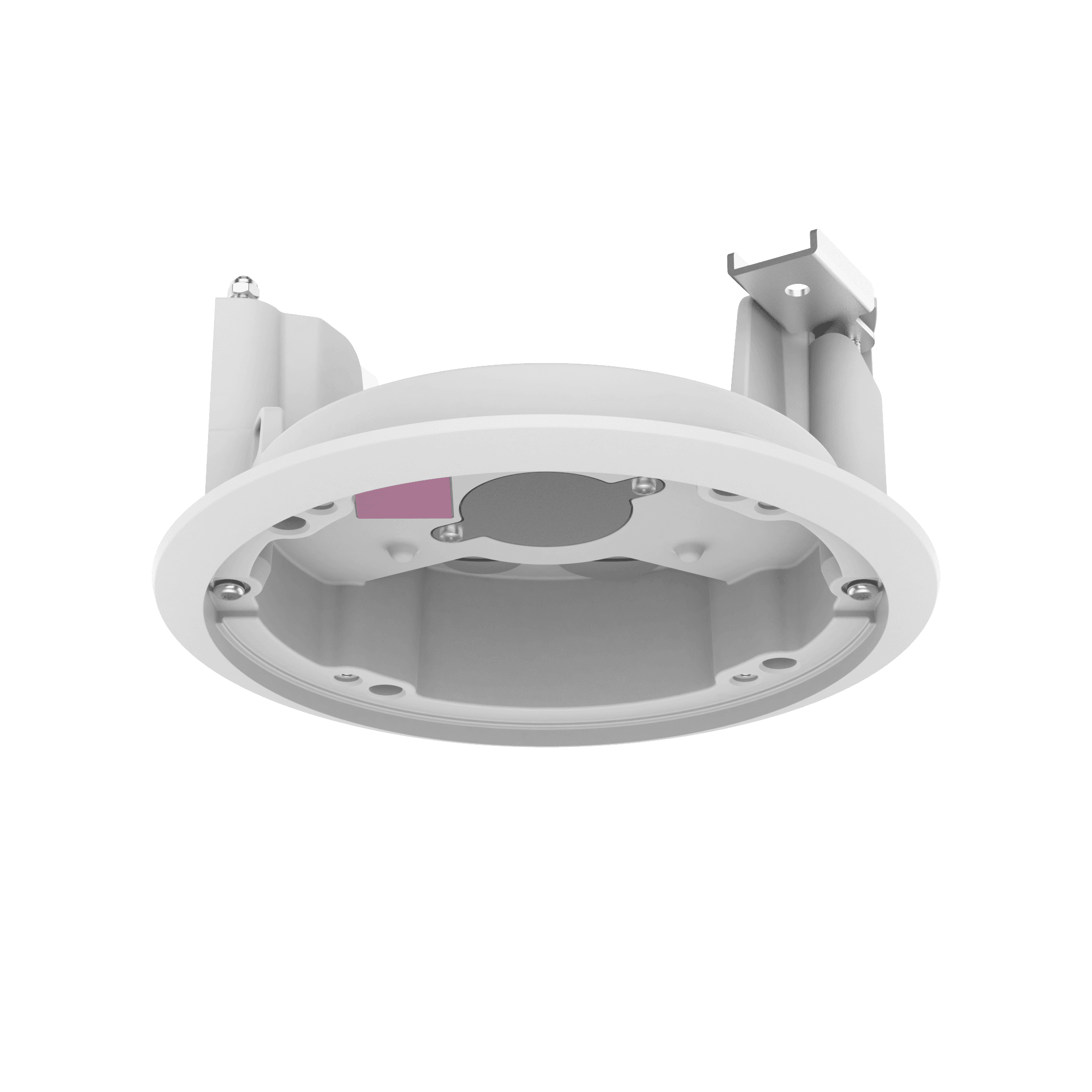

Key Features

Material: Aluminum
Product dimensions / Weight: ø205x103mm (ø8.07x4.05") / 770g (1.70lb)
※ Ceiling hole size : ø181mm (ø7.12")
Tile thickness : 10~70mm (0.4~2.8")
Color : White

Downloads

View Selection

Manuals

	Category	File Name	Last Update
	Manuals	Manuals_SHD-1370FPW_230711_EN.pdf	2026-04-19

DataSheet

	Category	File Name	Last Update
	DataSheet	DataSheet_SHD-1370FPW_20260227_EN_091904.pdf	2026-04-19

Specifications

Mechanical

Color		White
Material		Aluminum
RAL code		RAL9003
Product dimensions / weight		ø205x103mm(ø8.07x4.05") / 770g(1.70lb)
Tile thickness		10~70mm(0.4~2.8")
Mount Screw size		TR20
Max. load		3kg(6.61lb) ※ Maximum load of ceiling board: 6.5kg(14.30lb)
Conduit hole		12.7mm(1/2")(M20) / 19.1mm(3/4")(M25)
Supported products		PNV-A6081R, XNV-6083R, XNV-6123R, XNV-6083RZ ※ For further compatible models, please visit our website or use Toolbox

Accessories

PNV-A6081R

PNV-A9081R

XNV-8082R

XNV-9082R

XNV-6083R

XNV-8083R

XNV-8093R

XNV-9083R

XNV-6123R

XNV-6083Z

XNV-8083Z

XNV-6083RZ

XNV-8083RZ

XNV-9083RZ
