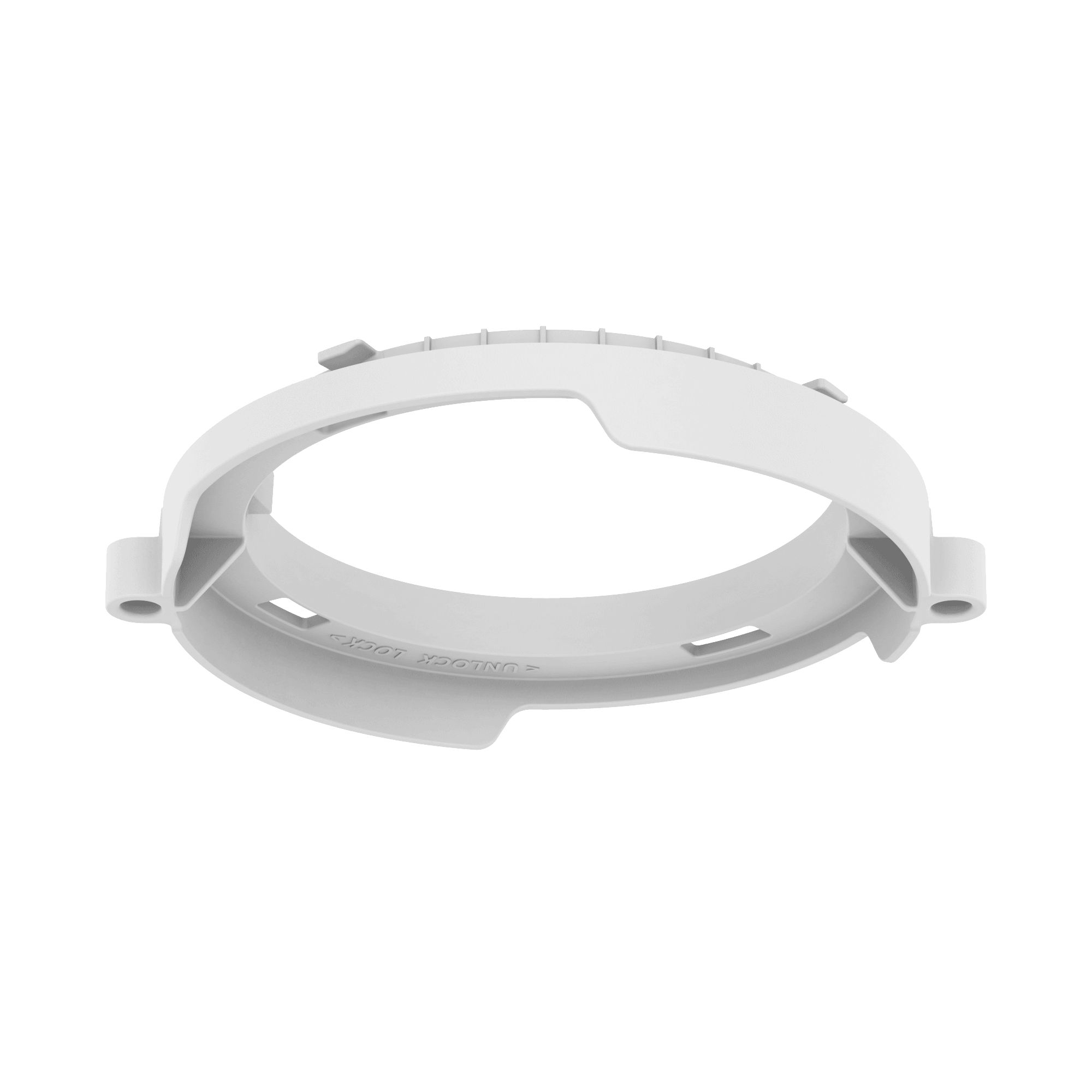

SHD-1350P
In-ceiling Retrofit SpacerKey Features
• Color : White
• Material : Top cover : PC(Polycarbonate) / Spacer : Aluminum
• Product dimensions / weight : 152.8x133x26.5mm (6.02x5.24x1.04") / 90g (0.20lb)

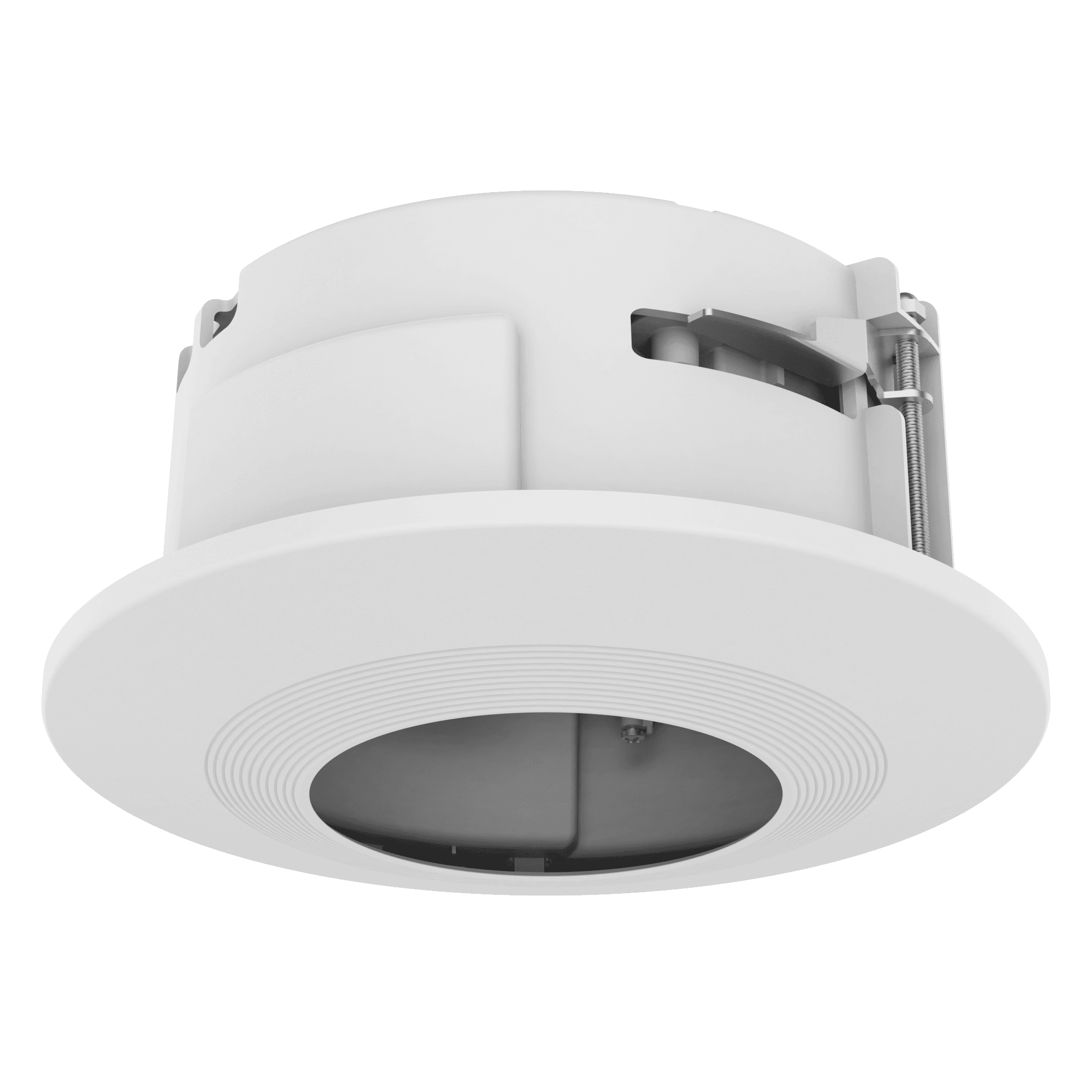

• Supported products : SHD-3000F4 (In-ceiling Mount) / XND-6083RV, PND-A6081RV (Camera)
※ For further compatible models, please refer to the datasheet
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHD-1350P_240321_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHD-1350P_240426_Common.dxf | 2026-04-19 | |
| CAD | CAD_SHD-1350P_240426_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHD-1350P_20251014_EN_171800.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 152.8x133x26.5mm (6.02x5.24x1.04") / 90g (0.20lb) | |
| Supported products | - In-ceiling Mount : SHD-3000F4/FW4 - Camera : XND-6083RV/8083RV/8093RV/9083RV, PND-A6081RV/A9081RV, XND-6081RV/8081RV, XND-6081VZ/8081VZ, XND-6081V, XND-8082RV/9082RV |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 152.8x133x26.5mm (6.02x5.24x1.04") / 90g (0.20lb) | |
| Supported products | - In-ceiling Mount : SHD-3000F4/FW4 - Camera : XND-6083RV/8083RV/8093RV/9083RV, PND-A6081RV/A9081RV, XND-6081RV/8081RV, XND-6081VZ/8081VZ, XND-6081V, XND-8082RV/9082RV |
