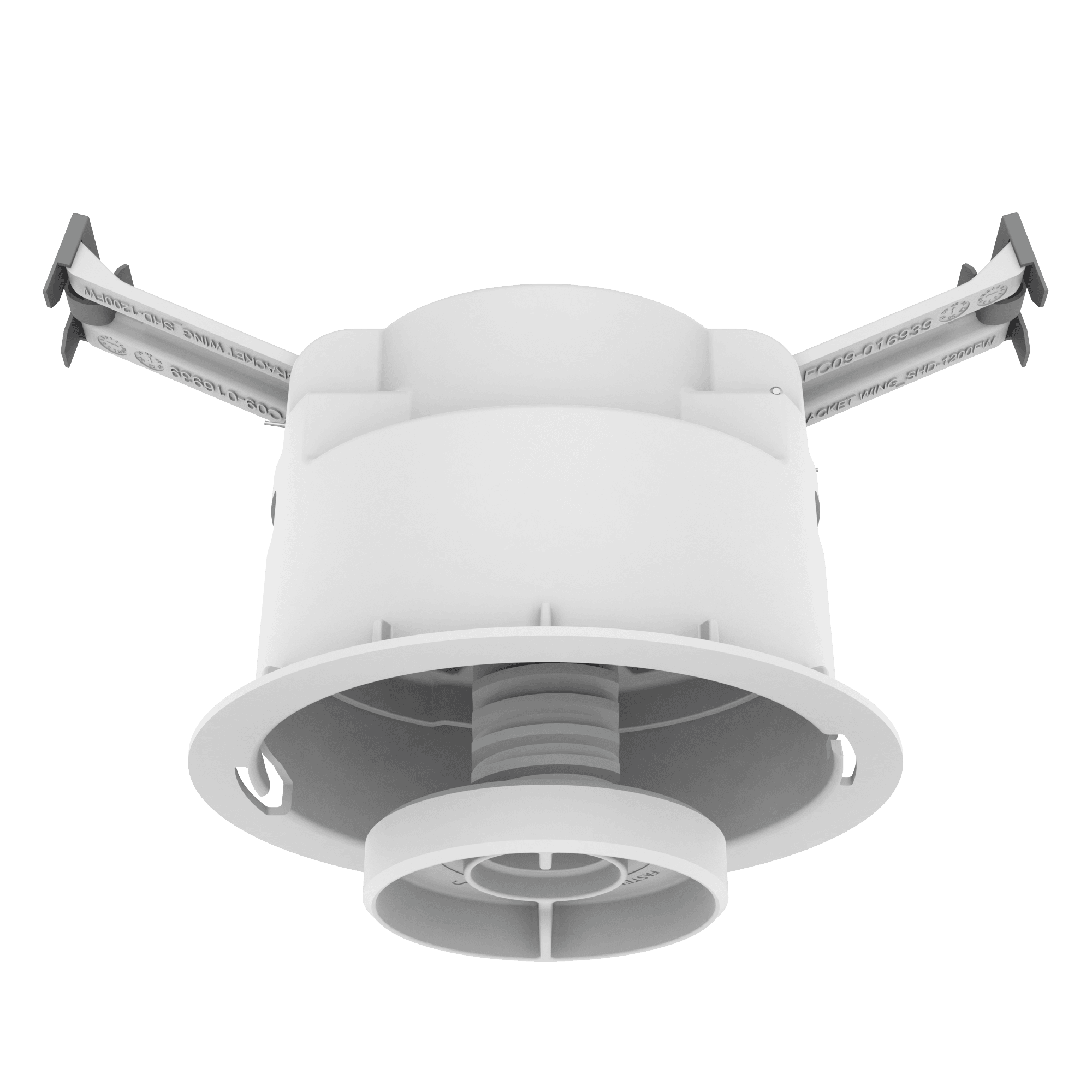

SHD-1200FW
In-ceiling Mount

Key Features

  • Color: White
  • Material : PC(Polycarbonate)
  • Dimensions : 175x162x147mm (6.89x6.38x5.79")
    ※ Ceiling hole size : ø140mm (ø5.51")
  • Weight : 275g (0.61lb)
  • Max. load : 0.6kg (1.32lb)
    ※ Maximum load of ceiling board : 3kg (6.61lb)
NDAA

Downloads

View Selection

Manuals

CategoryFile NameLast Update
ManualsManuals_SHD-1100FW,SHD-1101FW,SHD-1200FW_240605_EN.pdf2026-04-19

CAD

CategoryFile NameLast Update
CADCAD_SHD-1200FW_250307_Common.dxf2026-04-19
CADCAD_SHD-1200FW_250307_Common.pdf2026-04-19

DataSheet

CategoryFile NameLast Update
DataSheetDataSheet_SHD-1200FW_20260226_EN_165028.pdf2026-04-19

Specifications

Mechanical

ColorWhite
MaterialPC(Polycarbonate)
RAL codeRAL9003
Product dimensions / weight175x162x147mm(6.89x6.38x5.79") / 275g(0.61lb)
Tile thickness10~60mm(0.4~2.4")
Max. load0.6kg(1.32lb) ※ Maximum load of ceiling board: 3kg(6.61lb)
Supported productsQNV-C8013R, QNV-C8023R ※ For further compatible models, please visit our website or use Toolbox

Accessories

QNV-C8013R

QNV-C8013R

QNV-C8023R

QNV-C8023R
