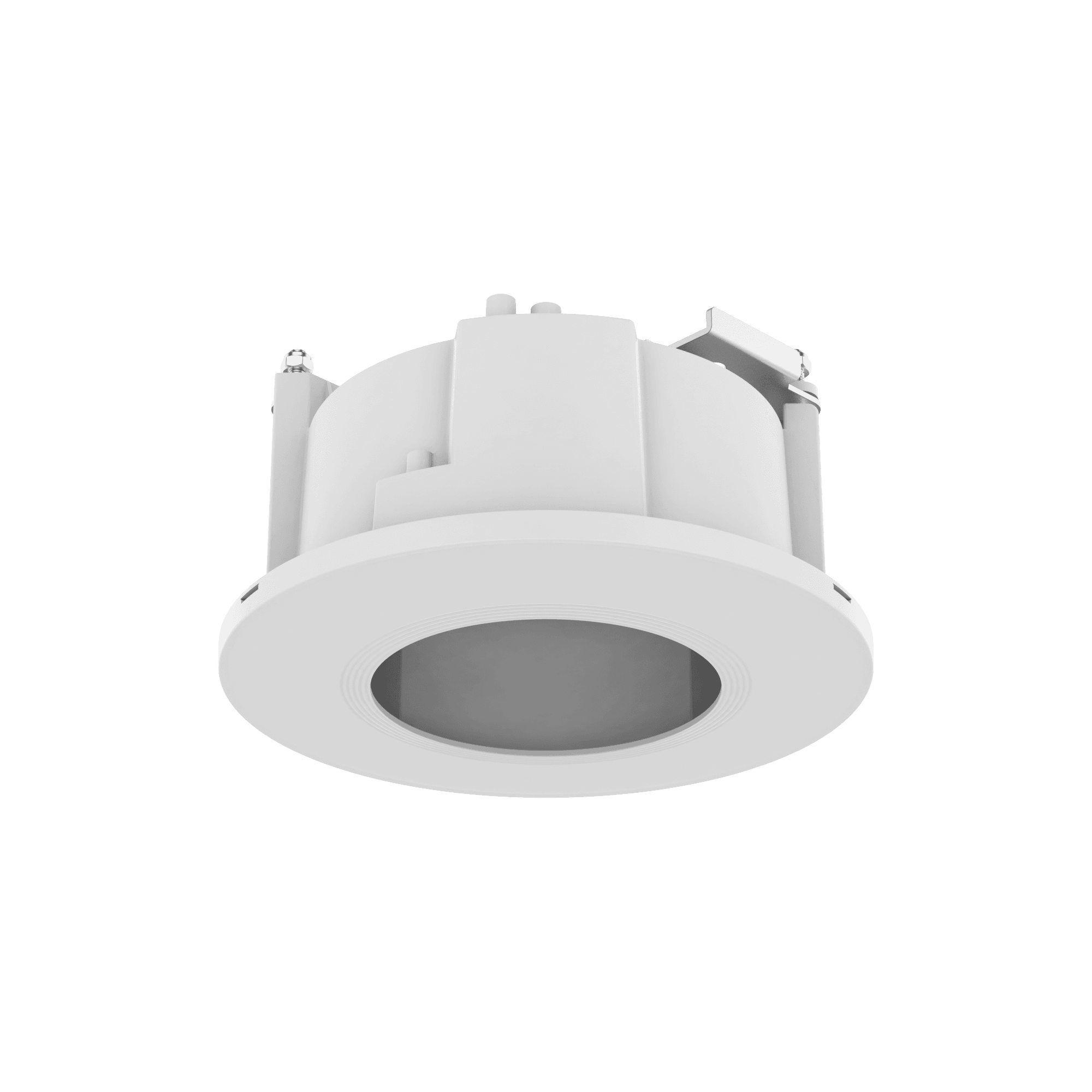

SHD-1198FW
In-ceiling MountKey Features
- Poly carbonate
- Dimensions : Ø170 X 100.6(H)
- Weight : 320g
- Color: White
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHD-1198FW_230518_EN.pdf | 2026-04-19 | |
| Manuals | Manuals_SHD-1198FW_230518_ZH.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHD-1198FW_191128.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHD-1198FW_20260227_EN_134052.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SHD-1198FW_200610_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SHD-1198FW_200610_Common_mm.rfa | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate) | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø170x100.6mm(6.72x3.96") / 320g(0.71lb) | |
| Supported products | QND-6082R, LND-6072R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate) | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø170x100.6mm(6.72x3.96") / 320g(0.71lb) | |
| Supported products | QND-6082R, LND-6072R ※ For further compatible models, please visit our website or use Toolbox |
