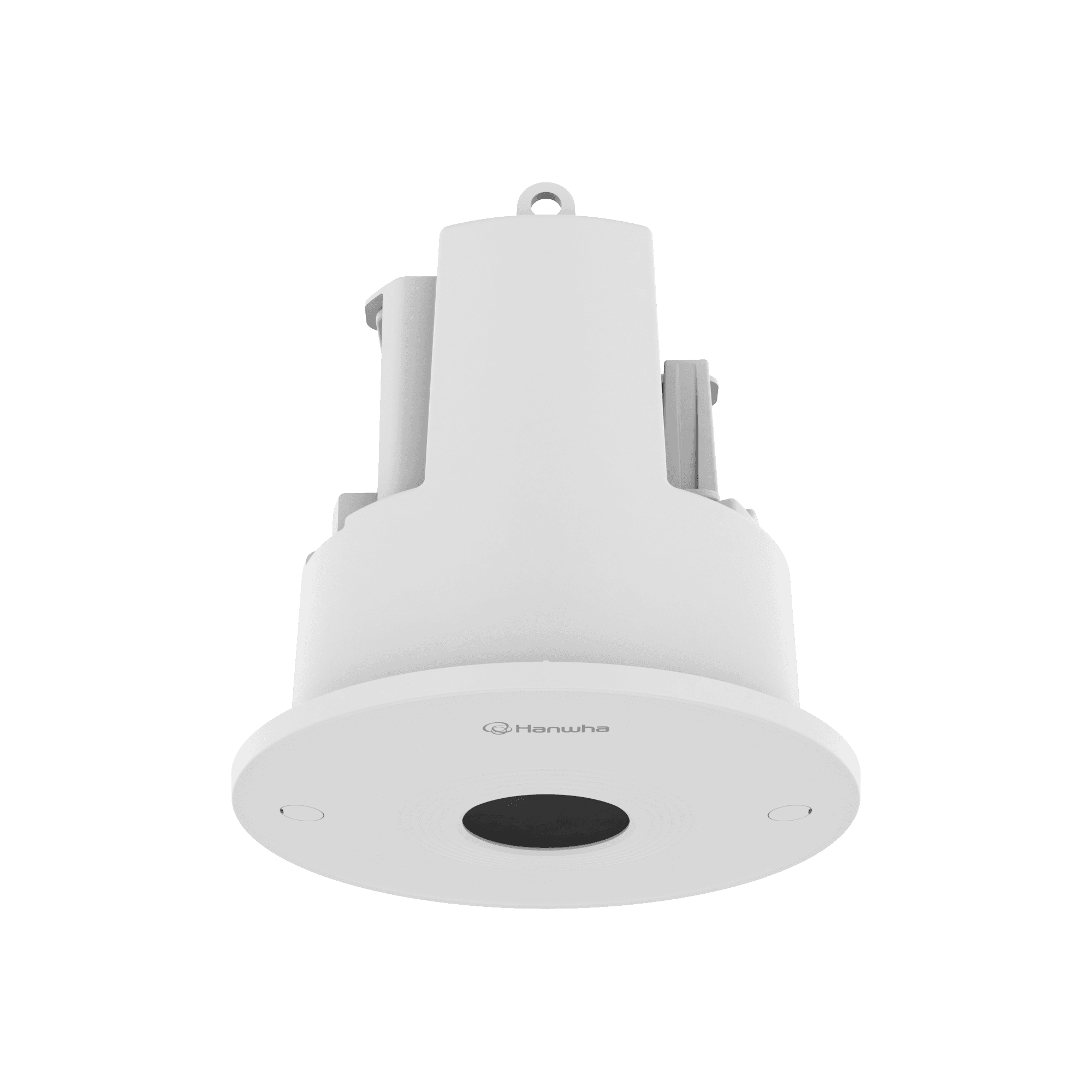

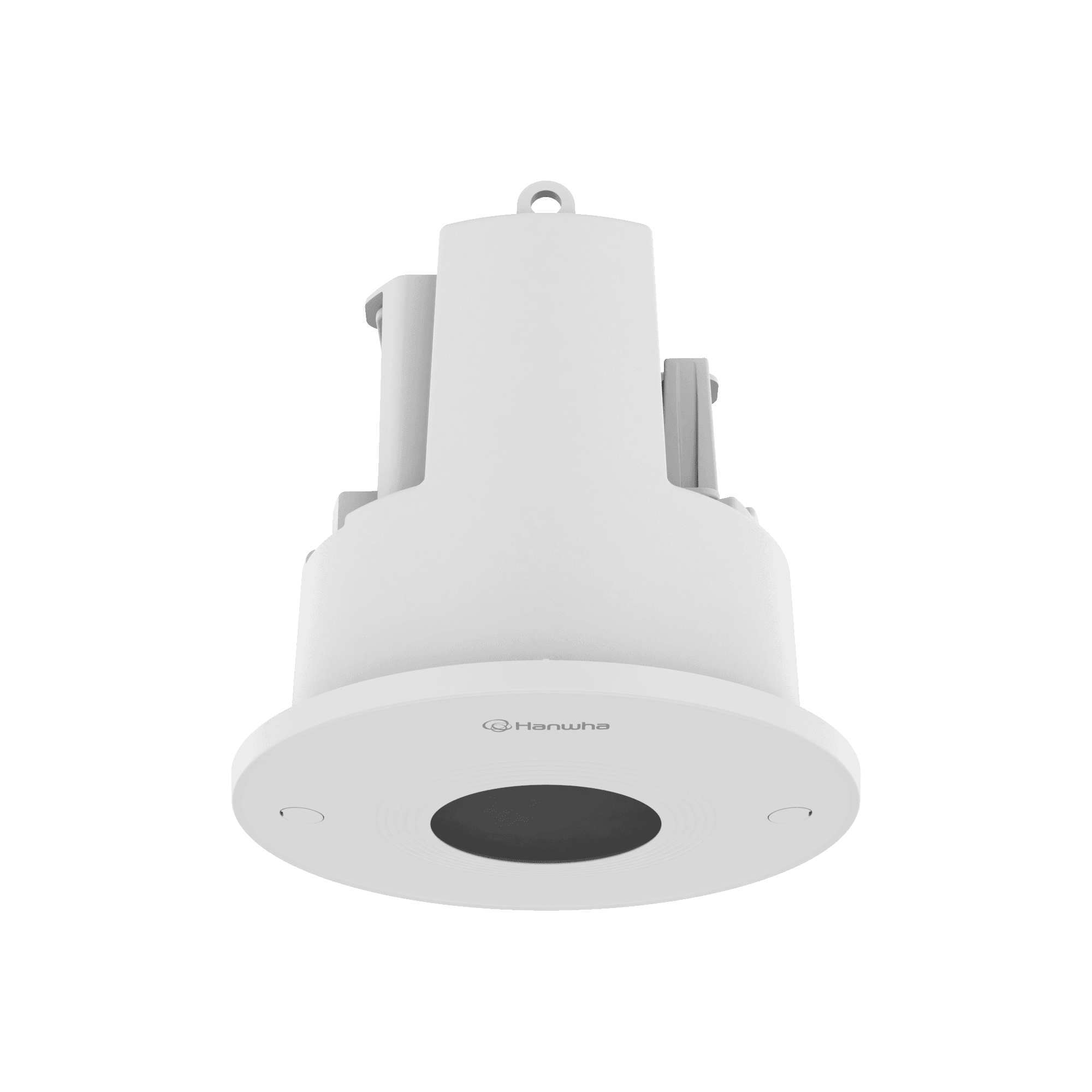

SHD-1128FPW
In-ceiling MountKey Features
- Enclosure: Aluminum / Top cover : Polycarbonate (PC)
- Dimensions : Ø160mm x H145.5mm (6.30" x 5.73")
- Weight : 692g (1.53 lb)
- Color : White
- QR installation guide support
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHD-1128FPW_230326_Common.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHD-1128FPW_210603_EN_Common.dwg | 2026-04-19 | |
| CAD | CAD_SHD-1128FPW_210603_EN_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHD-1128FPW_20260227_EN_095141.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø160x145.5mm(ø6.30x5.73") / 692g(1.53lb) | |
| Tile thickness | 5~70mm | |
| Conduit hole | 19.1mm(3/4")(M25) / 12.7mm(1/2")(M20) | |
| Supported products | QND-6011, QND-6012R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø160x145.5mm(ø6.30x5.73") / 692g(1.53lb) | |
| Tile thickness | 5~70mm | |
| Conduit hole | 19.1mm(3/4")(M25) / 12.7mm(1/2")(M20) | |
| Supported products | QND-6011, QND-6012R ※ For further compatible models, please visit our website or use Toolbox |
