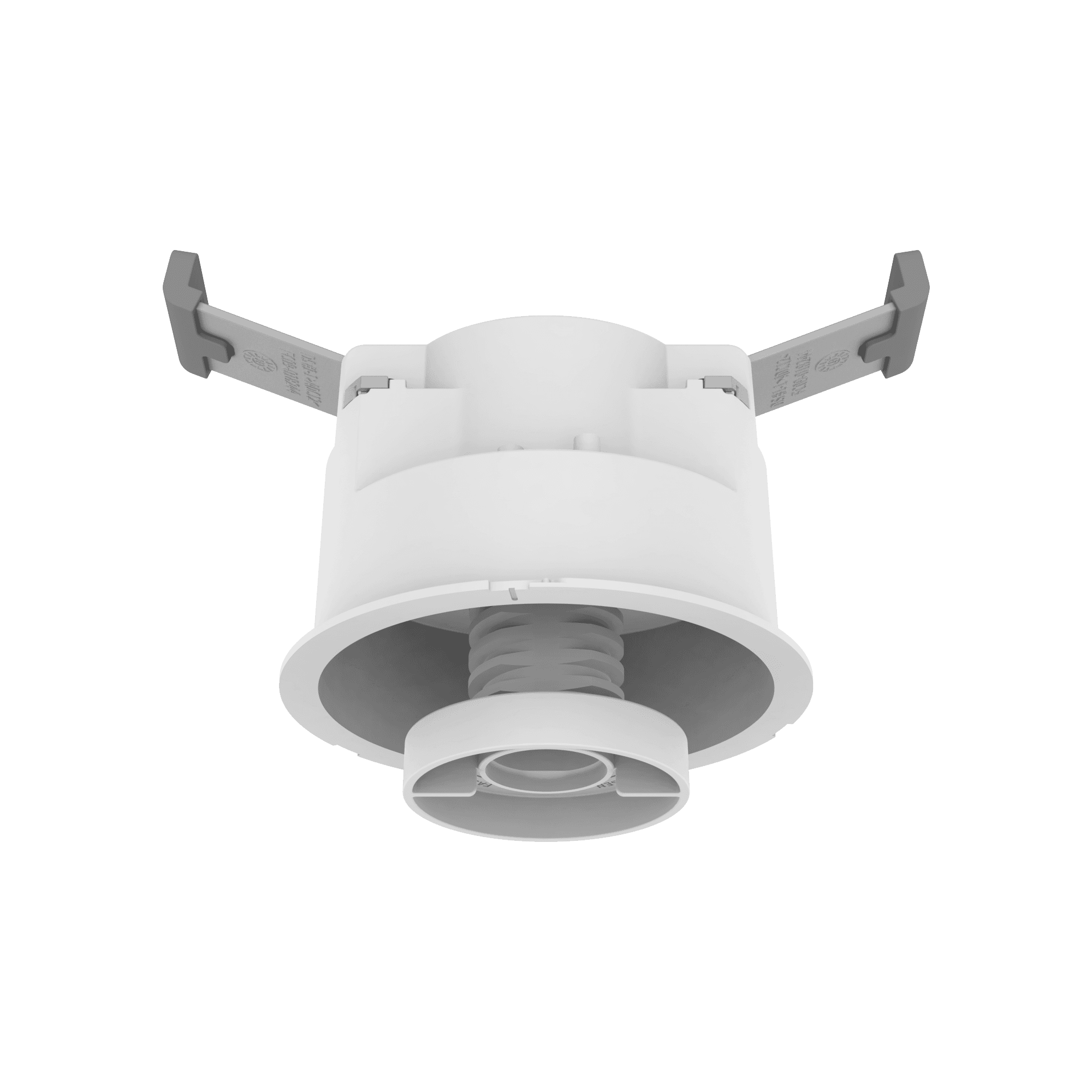

SHD-1000F1
In-ceiling MountKey Features
- Color : White
- Materials : PC(Polycarbonate)
- Dimensions (WXH) : ø137x131mm (ø5.39x5.15")
※ Ceiling hole size : ø119mm (ø4.69") - Weight : 250g (0.55lb)
- Max. load : 1.5kg (3.31lb)
※ Maximum load of ceiling board : 3kg (6.61lb)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHD-1000F1_250122_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHD-1000F1_250213_Common.dxf | 2026-04-19 | |
| CAD | CAD_SHD-1101FWSHD-1200FW_250212_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHD-1000F1_20260226_EN_164422.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate) | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø137x125mm(ø5.39x4.92") / 250g(0.55lb) | |
| Tile thickness | 10~60mm(0.4~2.4") | |
| Max. load | 1.5kg(3.31lb) ※ Maximum load of ceiling board: 3kg(6.61lb) | |
| Supported products | QNF-9010, QNF-8010 |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate) | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø137x125mm(ø5.39x4.92") / 250g(0.55lb) | |
| Tile thickness | 10~60mm(0.4~2.4") | |
| Max. load | 1.5kg(3.31lb) ※ Maximum load of ceiling board: 3kg(6.61lb) | |
| Supported products | QNF-9010, QNF-8010 |
Accessories
QNF-9010
QNF-8010
