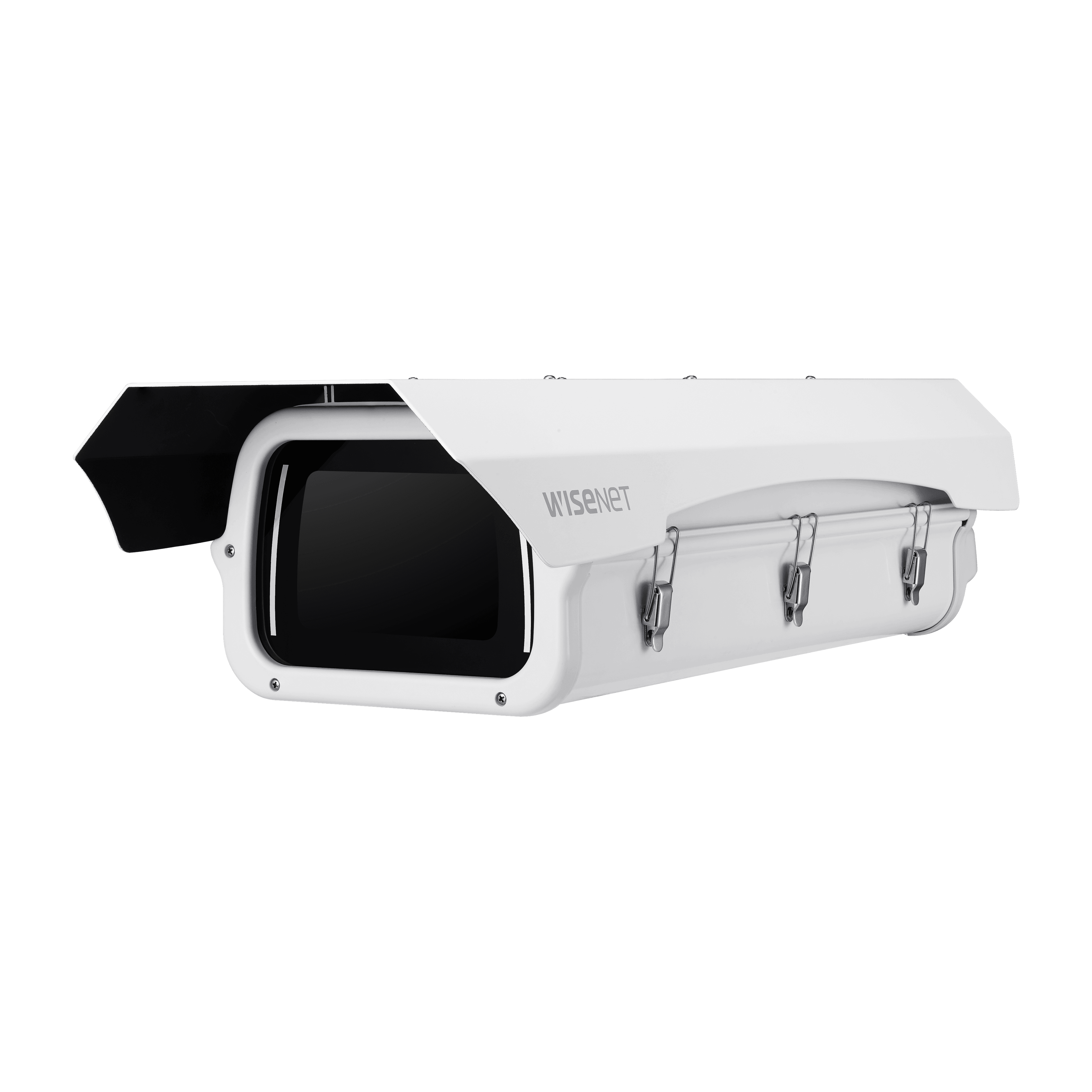

SHB-9000H
Box Camera HousingKey Features
• Compatible camera: TNB-9000
• Material
- Body/Sun shield : Aluminum
- Front&Rear cap : ABS
• Operating Temperature: -50°C ~ +60°C(-58°F ~ +140°F) / 10-100% RH (condensing)
• Weight: 6.2kg(13.67 lb)
• Color: White
• IP66
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHB-9000H_230411_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SHB-9000H_210114.dwg | 2026-04-19 | |
| CAD | CAD_SHB-9000H_210114.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SHB-9000H_200624_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_200624_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_210727_EN_UL.pdf.pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_200624_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_200624_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_200624_EN_FCC-IC.pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_200624_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_SHB-9000H_200624_EN_VCCI.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHB-9000H_20250906_EN_091026.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SHB-9000H_200928_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SHB-9000H_200928_Common_mm.rfa | 2026-04-19 |
Specifications
Environmental
| Operating Temperature / Humidity | -50°C~+60°C / 10~100% RH(condensing) | |
| Storage Temperature / Humidity | -50°C~+60°C / 0~90% RH | |
| Fan/Heater | Support (Thermostat controlled) | |
| Certification | IP66 |
Electrical
| Input Voltage | 220VAC | |
| Power Consumption | AC Fan(10W): 5Wx2EA / AC Heater(50W): 3.7W(Max. 50W)x2EA |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 300x184x700mm / 6,200g | |
| Supported products | TNB-9000 ※ For further compatible models, please visit our website or use Toolbox |
Environmental
| Operating Temperature / Humidity | -50°C~+60°C / 10~100% RH(condensing) | |
| Storage Temperature / Humidity | -50°C~+60°C / 0~90% RH | |
| Fan/Heater | Support (Thermostat controlled) | |
| Certification | IP66 |
Electrical
| Input Voltage | 220VAC | |
| Power Consumption | AC Fan(10W): 5Wx2EA / AC Heater(50W): 3.7W(Max. 50W)x2EA |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 300x184x700mm / 6,200g | |
| Supported products | TNB-9000 ※ For further compatible models, please visit our website or use Toolbox |
Accessories

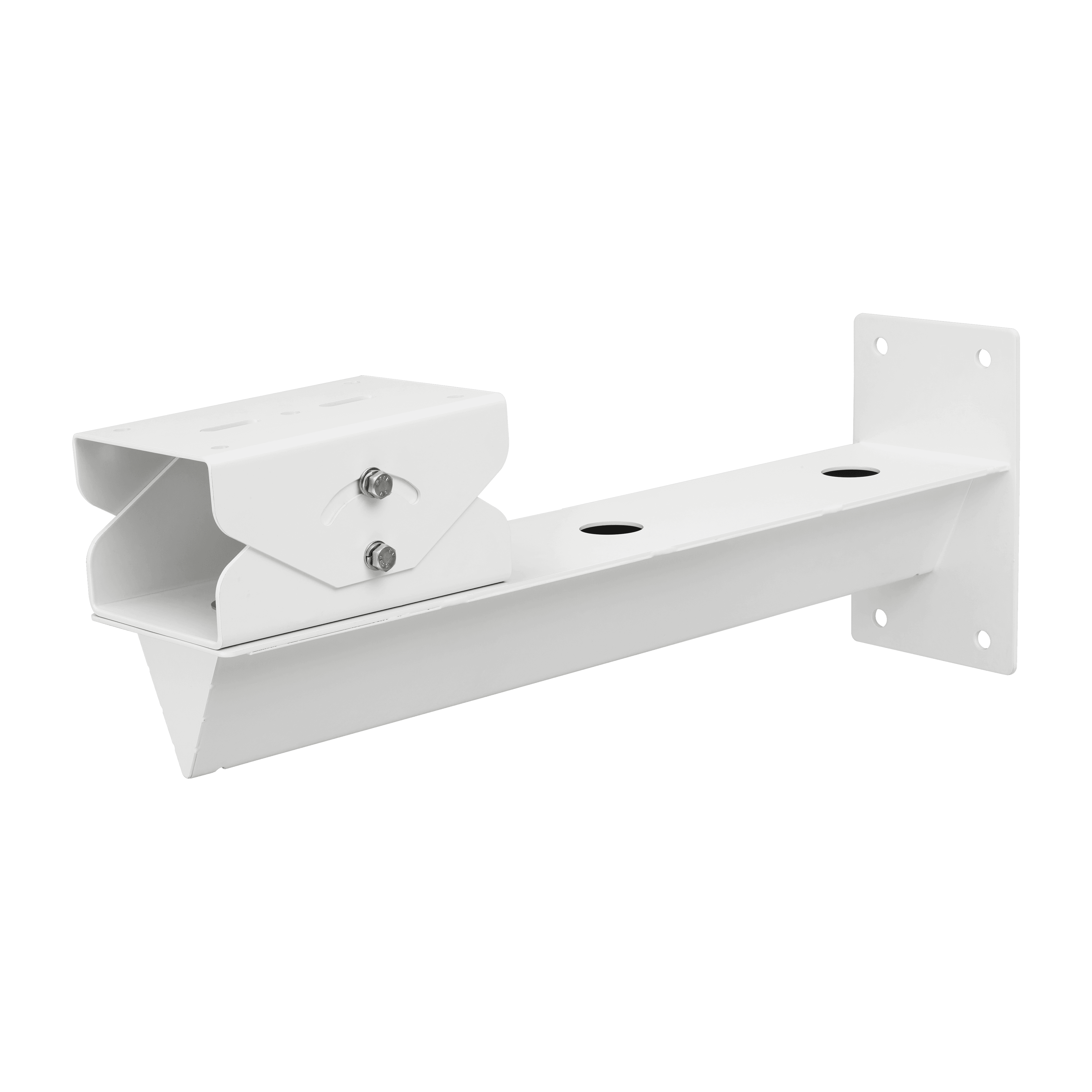

SBP-300KMW1
TNB-9000
