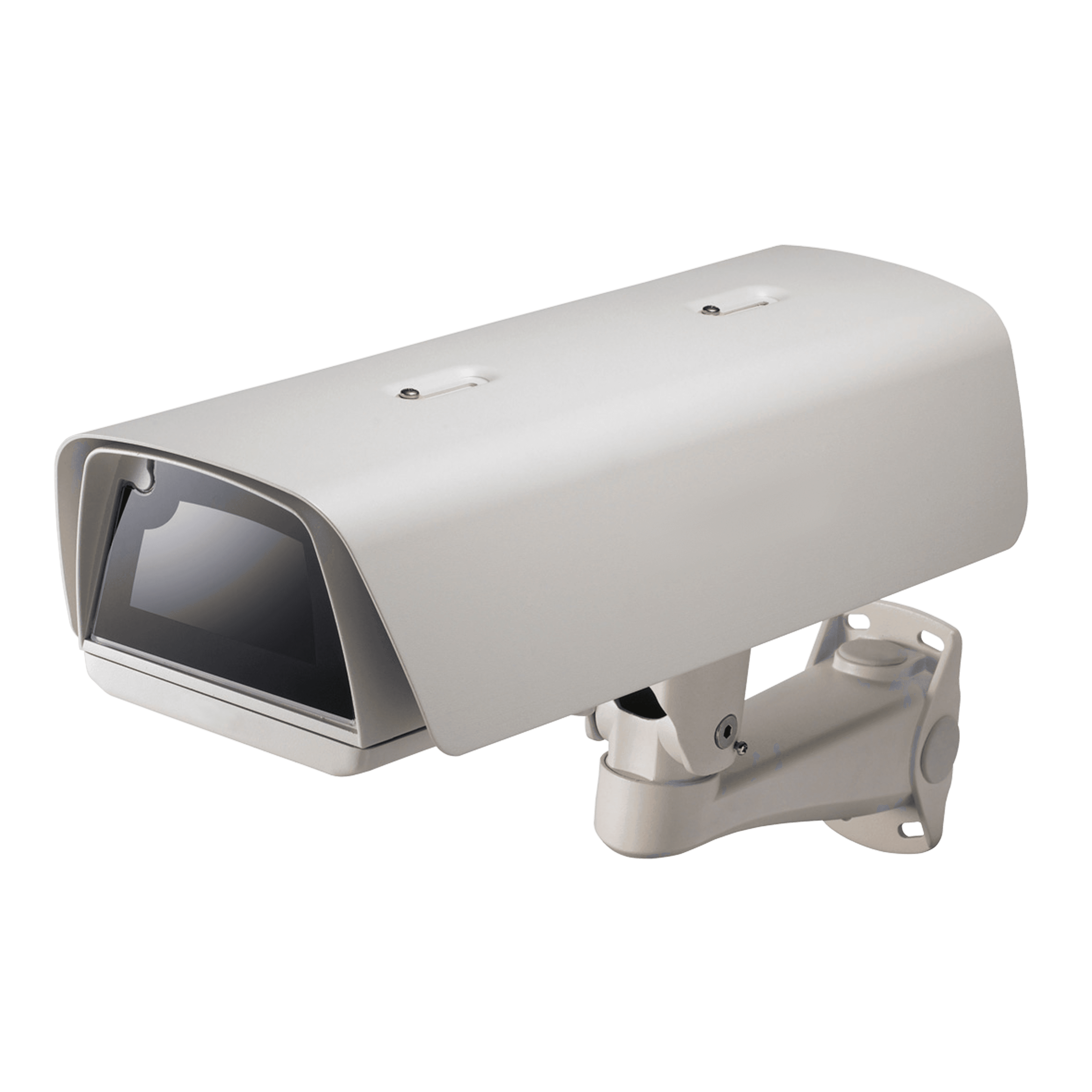

SHB-4300H
Housing for Fixed CameraKey Features
• For fixed camera application
• Aluminum diecasting construction
• Fully cable managed bracket
• De-mister heater, fan
• Support three cable glands, IP66
• 24V ACSHB-4300H1 : Extreme weather proof housing
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SHB-4300H,SHB-4301H,SHB-4301H2_230410_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | SHB-4300H-2D.dwg | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | SHB-4300H-Certification-IP66.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SHB-4300H_20251014_EN_172628.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SHB-4300H_180912_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SHB-4300H_180912_Common_mm.rfa | 2026-04-19 |
Specifications
Environmental
| Operating Temperature / Humidity | -35°C ~ +50°C (-31°F ~ +122°) / 0~90% RH | |
| Fan/Heater | Support (Heater : 5°C ± 5°C on / Blower : 45°C ± 5°C on) | |
| Certification | IP66, CE (Class A) |
Electrical
| Input Voltage | 24VAC | |
| Power Consumption | 25W AC FAN(2W) : 2W * 1EA AC HEATER(20W) : 20W * 1EA |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product dimensions / weight | Outside : 184(W)x127(H)x460(D)mm Inside : 91(W)x78(H)x190(D)mm | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~90° | |
| Supported products | Box cameras (Network / Analog) |
Environmental
| Operating Temperature / Humidity | -35°C ~ +50°C (-31°F ~ +122°) / 0~90% RH | |
| Fan/Heater | Support (Heater : 5°C ± 5°C on / Blower : 45°C ± 5°C on) | |
| Certification | IP66, CE (Class A) |
Electrical
| Input Voltage | 24VAC | |
| Power Consumption | 25W AC FAN(2W) : 2W * 1EA AC HEATER(20W) : 20W * 1EA |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product dimensions / weight | Outside : 184(W)x127(H)x460(D)mm Inside : 91(W)x78(H)x190(D)mm | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~90° | |
| Supported products | Box cameras (Network / Analog) |
