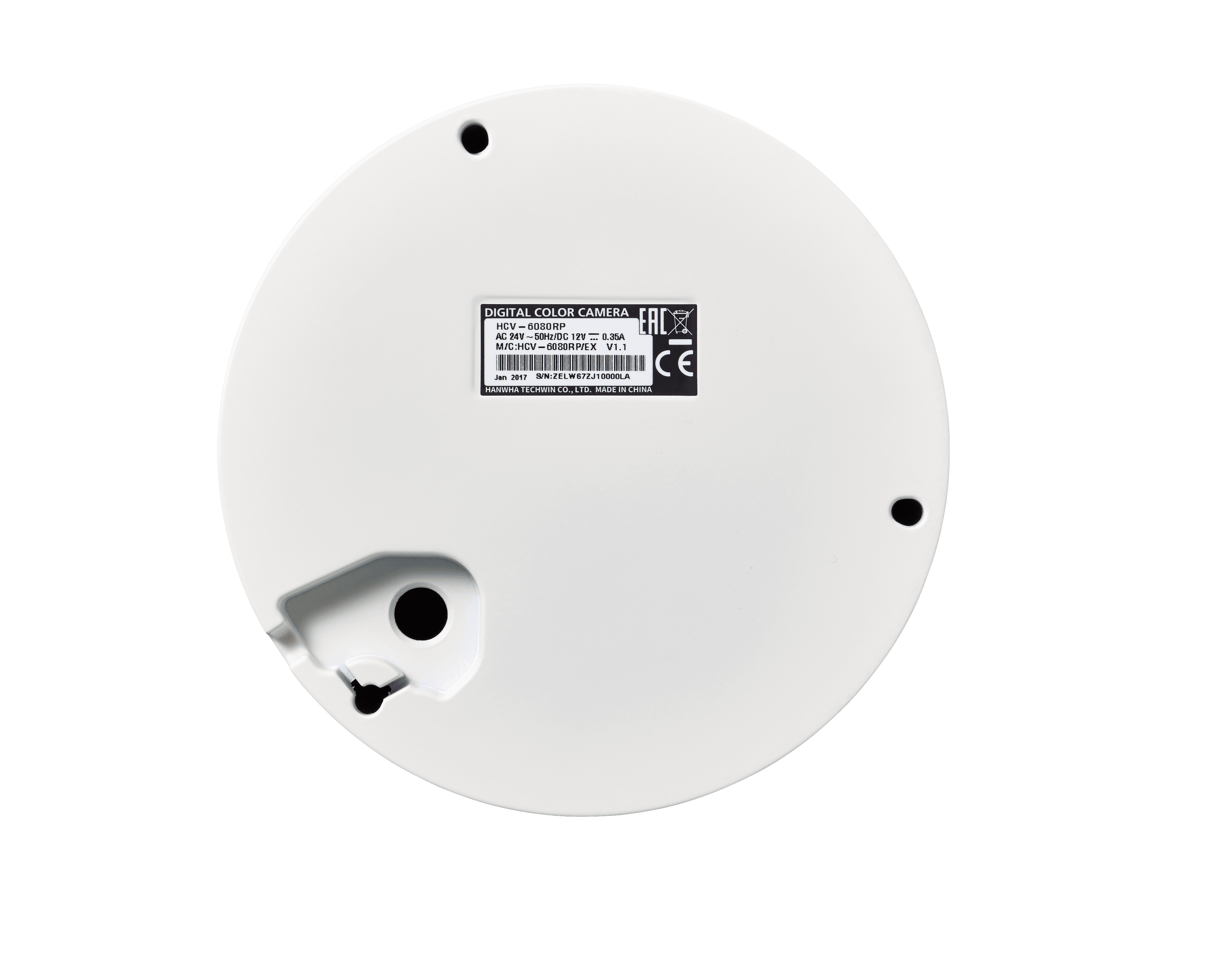

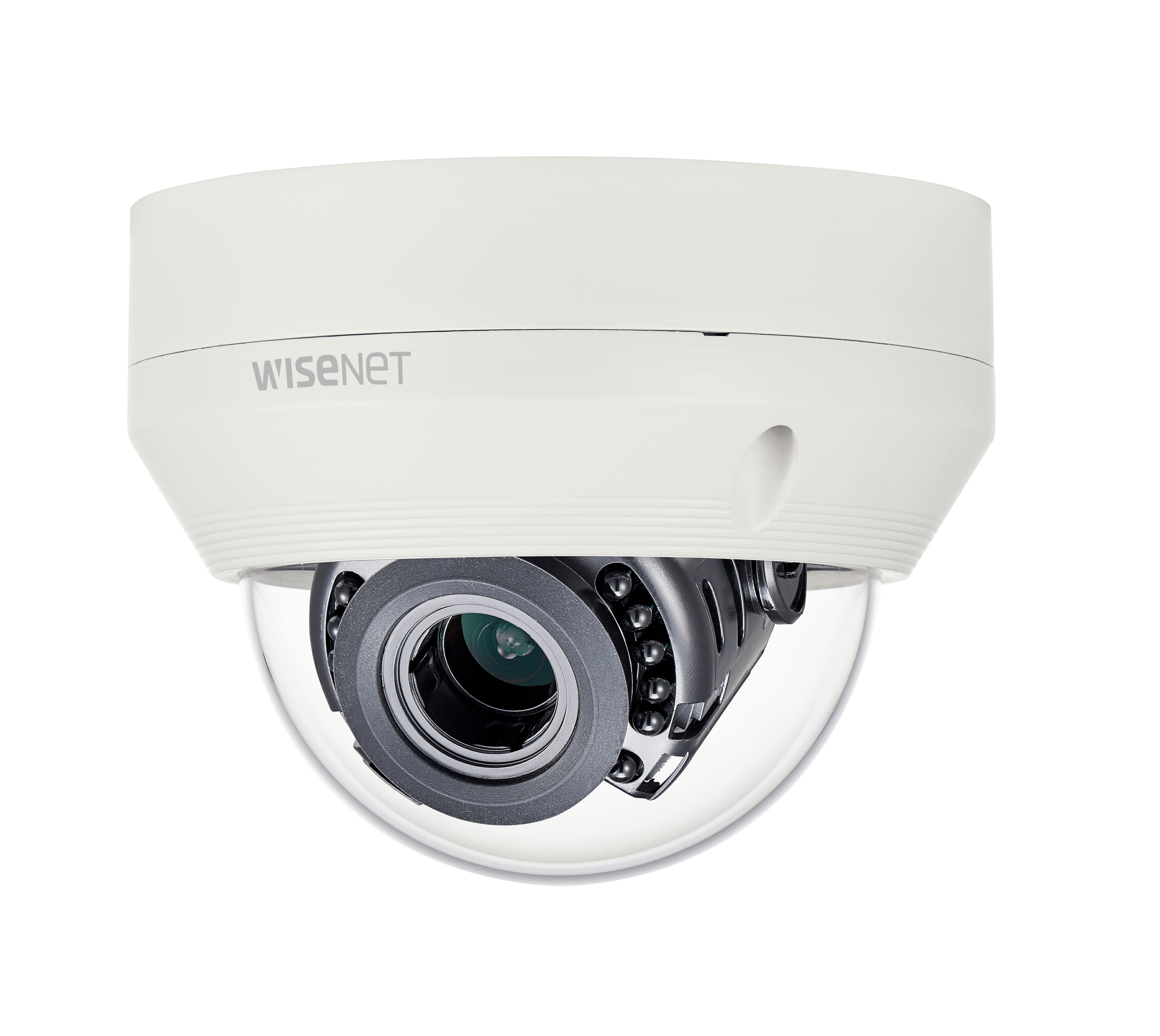

SCV-6085R
2MP Analog IR Vandal Dome CameraKey Features
• Full HD (1,920 x 1,080 30fps) resolution
• 0.11Lux (Color), 0Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), Motion detection
• IR viewable length 30m (98.42ft)
• Transmission distance max. 500m
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SCD-6085R%2CSCV-6085R_250811_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HCV-6070RHCV-6080RHCV-7070RSCV-6085R_170726_EN.pdf | 2026-04-19 | |
| CAD | CAD_HCV-6070RHCV-6080RHCV-7070RSCV-6085R_170726.dxf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SCV-6085R_200720_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_SCV-6085R_200818_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_SCV-6085R_200805_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_SCV-6085R_200805_EN_FCC.pdf | 2026-04-19 | |
| Certification | Certification_SCV-6085R_200805_EN_VCCI.pdf | 2026-04-19 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_SCV-6085R_201215_EN.doc | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SCV-6085R_20250906_EN_055303.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SCV-6085R_201221_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SCV-6085R_201221_Common_mm.rfa | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SCV-6085R_230613_Common.pdf | 2026-04-19 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.11 |
| BW(1/30sec, 30IRE) | 0.011 | |
| Video Out | BNC: AHD | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 3.2~10 | |
| Optical Zoom Ratio | 3.1x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 110.2°~32° |
| Vertical | 55.4°~18° | |
| Diagonal | 128.4°~36.6° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, DWDR | |
| Digital Noise Reduction | SSNRⅣ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Output 1ea |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| IR Viewable Length | 30m(98.42ft) | |
| Coaxial Protocol | ACP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -10°C | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | 0.46A |
| 24VAC | 0.45A |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product Dimensions | Ø137 x 106.1mm (Ø5.39" x 4.18") | |
| Product Weight | 715g(1.58lb) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 26.8m(87.89ft) |
| Tele | 133.9m(439.36ft) | |
| Observe (63PPM/ 19PPF) | Wide | 10.7m(35.16ft) |
| Tele | 53.6m(175.74ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 5.4m(17.58ft) |
| Tele | 26.8m(87.87ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.7m(8.79ft) |
| Tele | 13.4m(43.94ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.11 |
| BW(1/30sec, 30IRE) | 0.011 | |
| Video Out | BNC: AHD | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 3.2~10 | |
| Optical Zoom Ratio | 3.1x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 110.2°~32° |
| Vertical | 55.4°~18° | |
| Diagonal | 128.4°~36.6° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, DWDR | |
| Digital Noise Reduction | SSNRⅣ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Output 1ea |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| IR Viewable Length | 30m(98.42ft) | |
| Coaxial Protocol | ACP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -10°C | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | 0.46A |
| 24VAC | 0.45A |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product Dimensions | Ø137 x 106.1mm (Ø5.39" x 4.18") | |
| Product Weight | 715g(1.58lb) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 26.8m(87.89ft) |
| Tele | 133.9m(439.36ft) | |
| Observe (63PPM/ 19PPF) | Wide | 10.7m(35.16ft) |
| Tele | 53.6m(175.74ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 5.4m(17.58ft) |
| Tele | 26.8m(87.87ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.7m(8.79ft) |
| Tele | 13.4m(43.94ft) |
