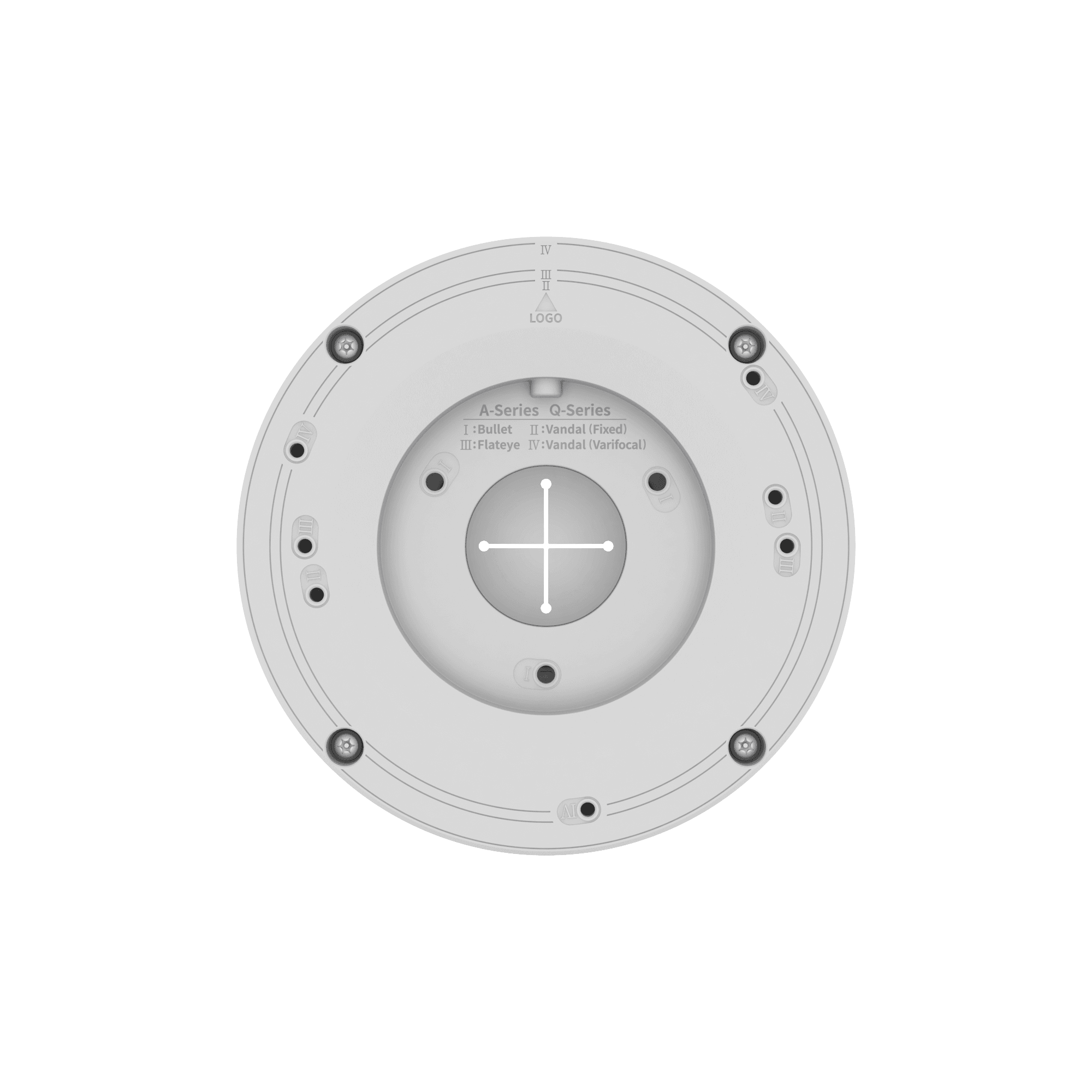

SBV-A14B
Back BoxKey Features
• Product dimensions / weight :
Ø144.0x51.0mm(Ø5.67x2.01"), 440g
• Mount Screw size : TR20
• Conduit hole : 19.1mm(3/4") (M25)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBV-A14B_231012_EN.pdf | 2026-08-10 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBV-A14B_240216_EN.dwg | 2026-08-10 | |
| CAD | CAD_SBV-A14B_240216_EN.dxf | 2026-08-10 | |
| CAD | CAD_SBV-A14B_240216_EN.pdf | 2026-08-10 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-A14B_20250906_EN_090649.pdf | 2026-08-10 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø144x51mm / 450g | |
| Mount Screw size | TR20 | |
| Max. load | 2kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |

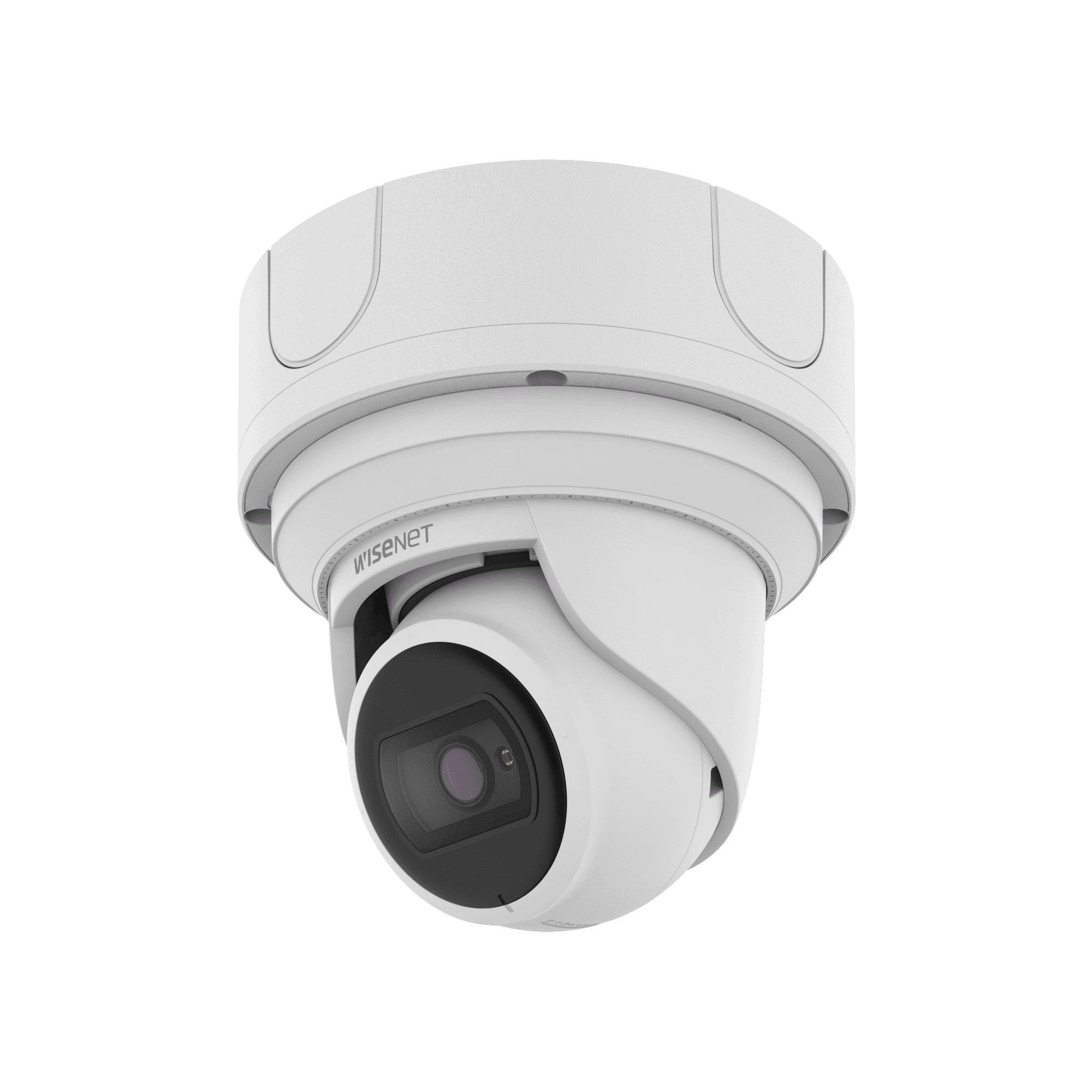

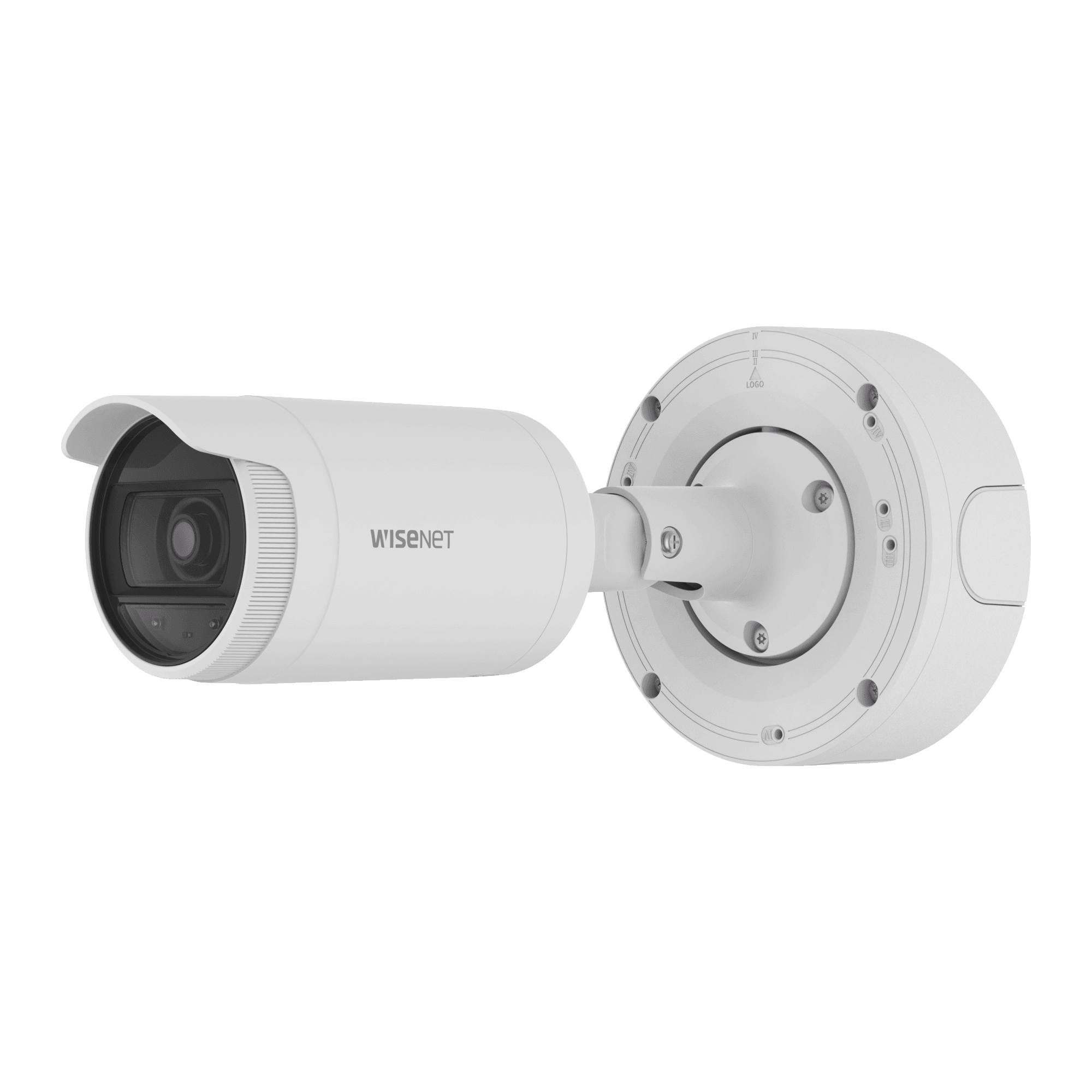

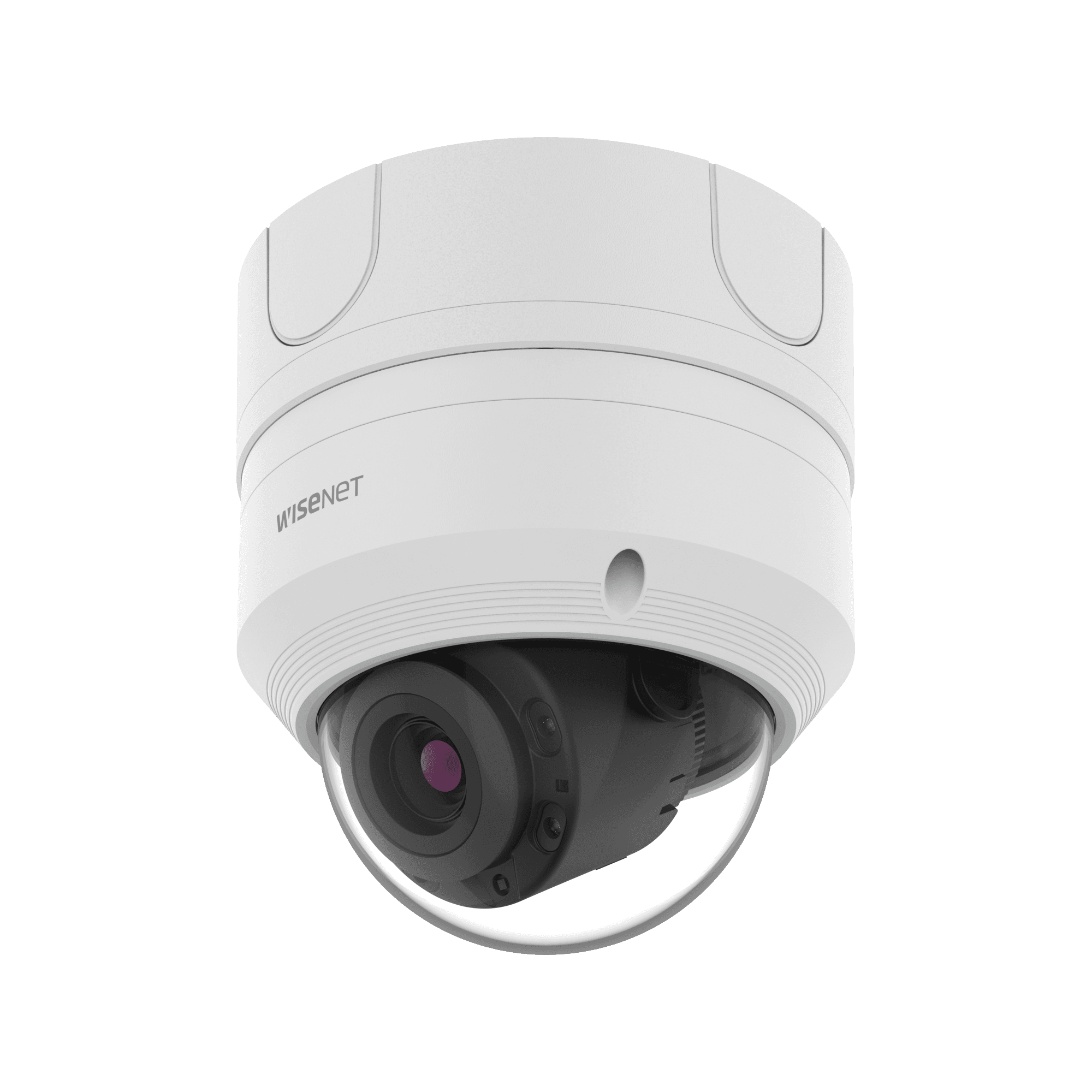

| Supported products | ANO-L6082R, ANO-L7082R, ANV-L6082R, ANV-L7082R, ANE-L6012R, ANE-L7012R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø144x51mm / 450g | |
| Mount Screw size | TR20 | |
| Max. load | 2kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | ANO-L6082R, ANO-L7082R, ANV-L6082R, ANV-L7082R, ANE-L6012R, ANE-L7012R ※ For further compatible models, please visit our website or use Toolbox |
Accessories
QNV-6072R
QNV-6072R1
QNV-6082R
QNV-6082R1
QNV-7082R
QNV-8080R
LNV-6072R
ANV-L6012R
ANV-L6082R
ANV-L7012R
ANV-L7082R
ANO-L6012R
ANO-L6022R
ANO-L6082R
ANO-L7012R
ANO-L7022R
ANE-L6012R
ANE-L7012R
ANE-L7012L
