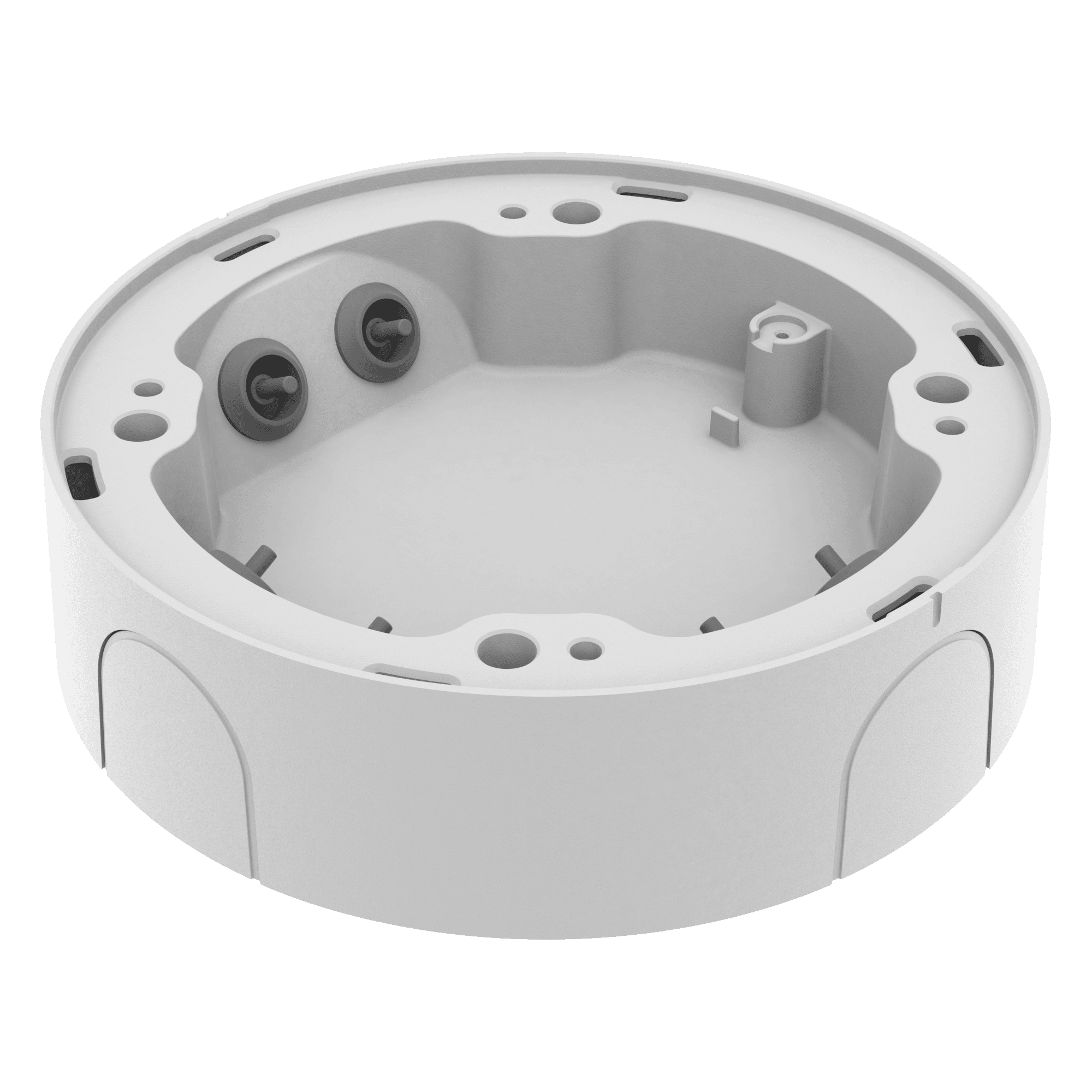

SBV-180WW
Waterproof Back BoxKey Features
• Color : White
• Material : Aluminum
• Weight : 1,183g (2.61lb)
• Operation Temperature : -50°C ~ +60°C(-58°F ~ +140°F)
• Operation Humidity : Less than 100% RH
• Certification : IP66, IK10, NEMA4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBV-180WW_230322_Common.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBV-180WW_210625_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBV-180WW_210625_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-180WW_20250906_EN_090534.pdf | 2026-04-19 |
Specifications
Environmental
| Certification | IP66, NEMA 4X |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø184.2x61mm / 1,183g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R ※ For further compatible models, please visit our website or use Toolbox |
Environmental
| Certification | IP66, NEMA 4X |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø184.2x61mm / 1,183g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R ※ For further compatible models, please visit our website or use Toolbox |
