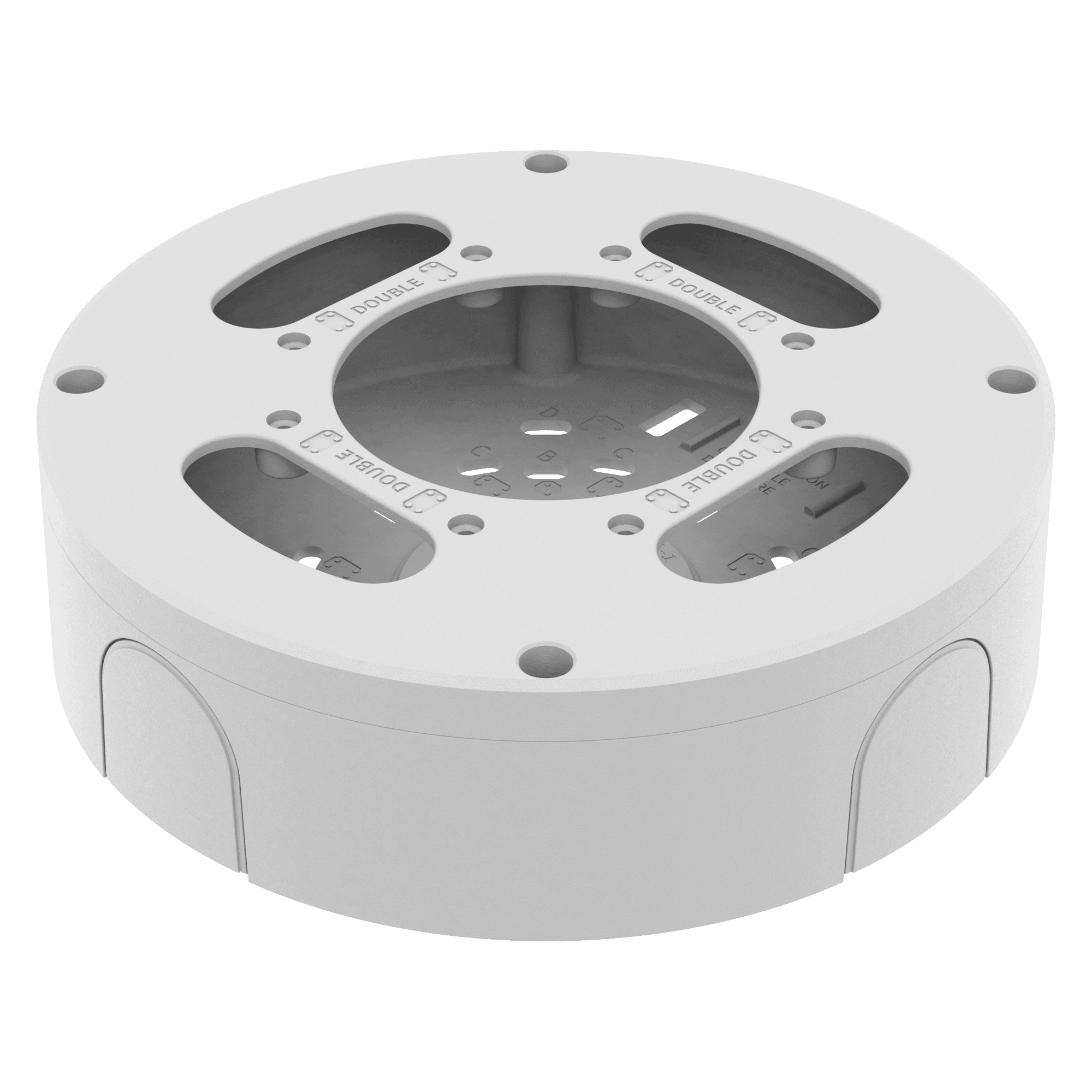

SBV-180BW
Back BoxKey Features
• Material : Aluminum
• Dimensions : Ø183.8x51mm(Ø7.23x2.01")
• Weight : 650g
• Color : White

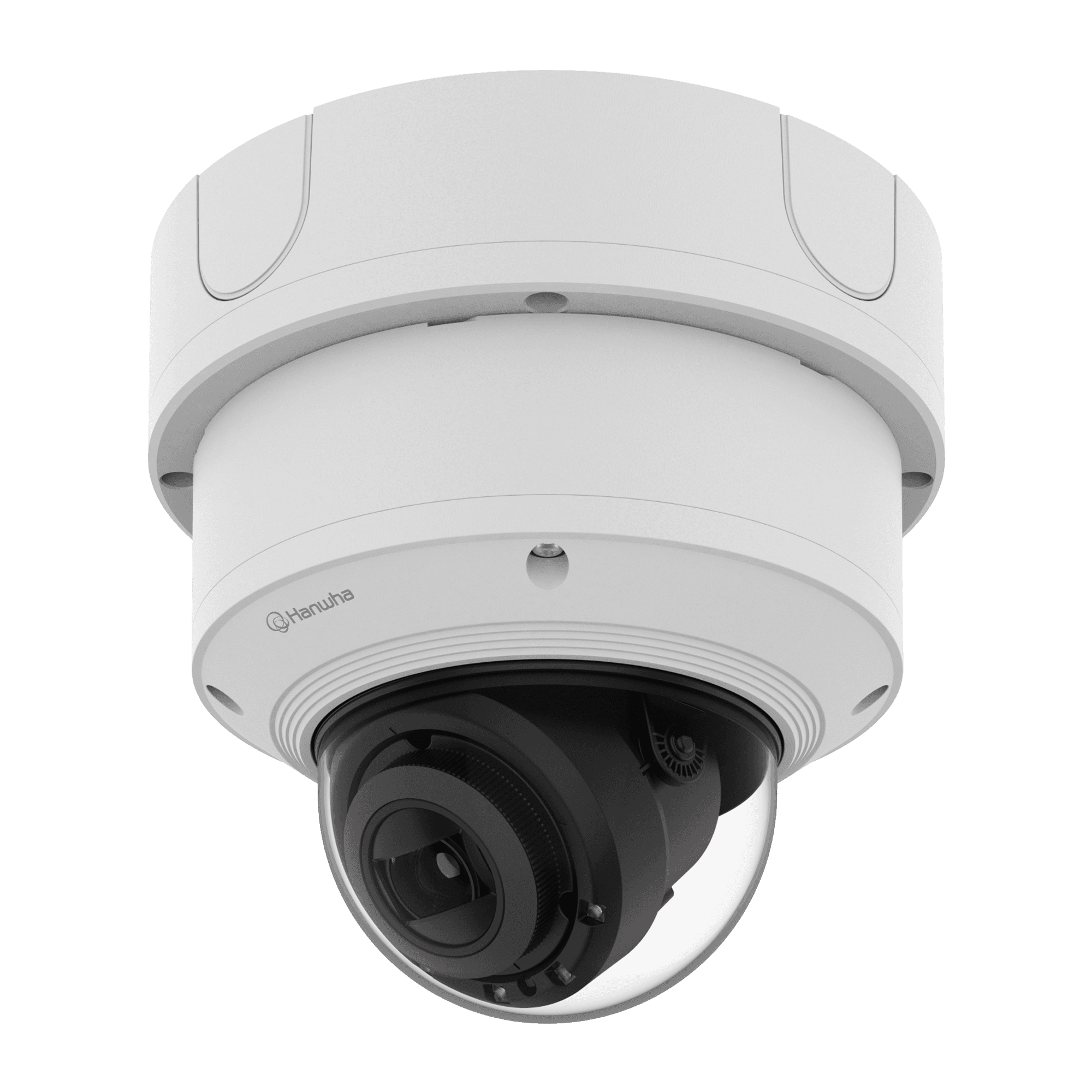

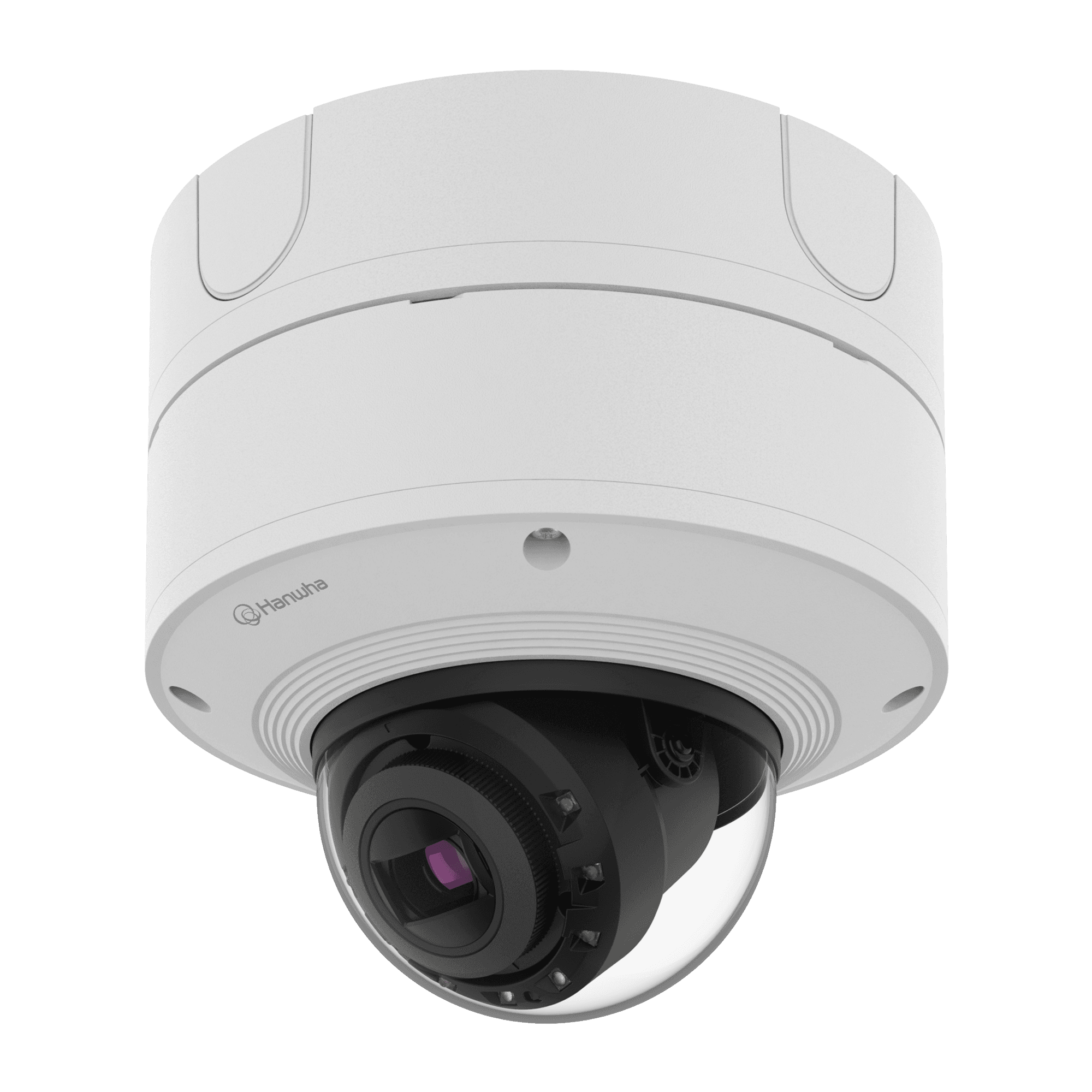

• Supported products: XND-C9083RV/C8083RV/C7083RV/C6083RV,
XND-C9083R/C8083R/C7083R/C6083R,
XND-9083RV/8093RV/8083RV/6083RV, XNV-9083R/8093R/8083R/6083R,
XND-9082RV/8082RV, XNV-9082R/8082R
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBO-140BW,SBV-140BW,SBV-180BW_240220_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBV-180BW_220525_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-180BW_20250906_EN_090448.pdf | 2026-04-19 |
Specifications
Environmental
| Certification | None |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø183.8x51mm / 650g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R ※ For further compatible models, please visit our website or use Toolbox |
Environmental
| Certification | None |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø183.8x51mm / 650g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R ※ For further compatible models, please visit our website or use Toolbox |
