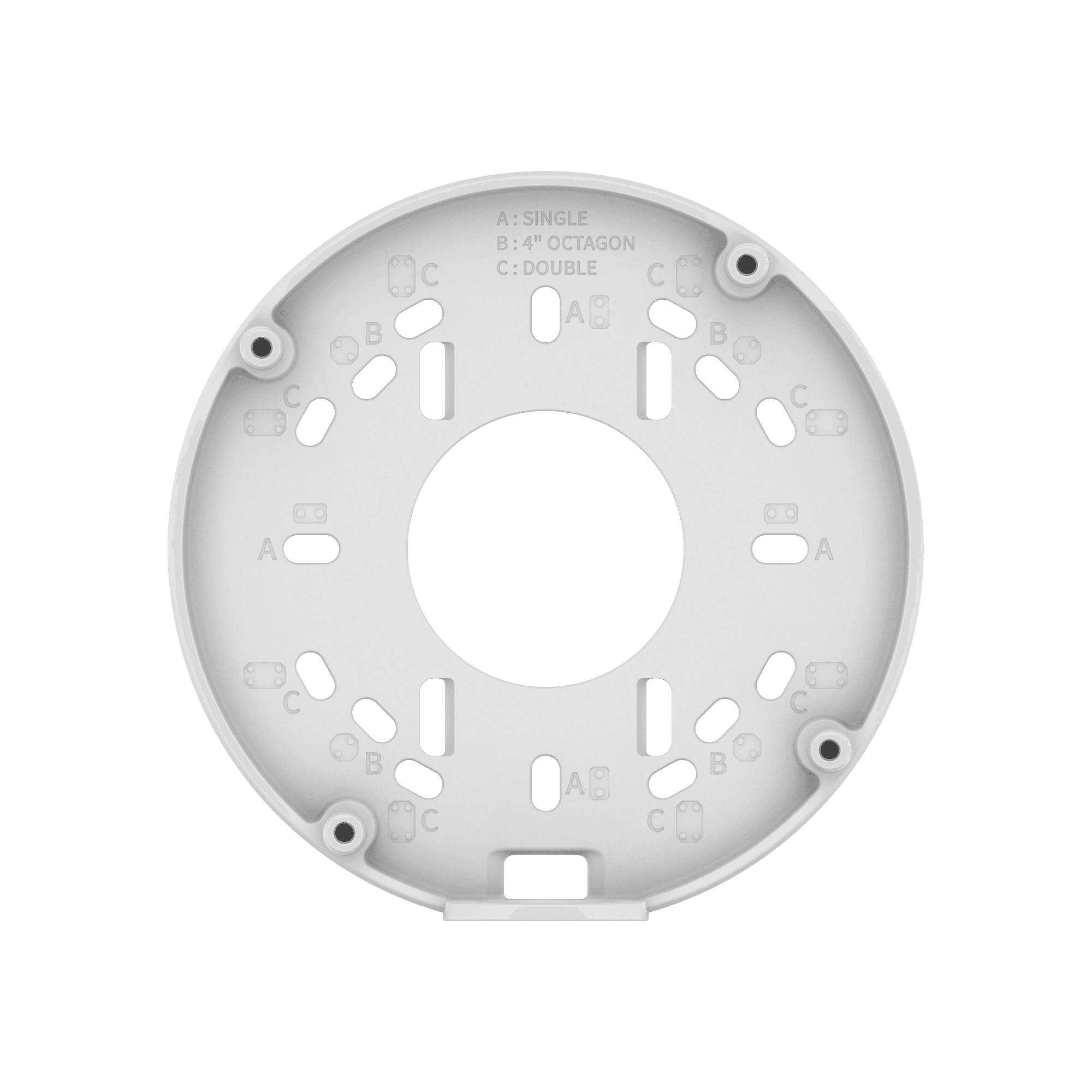

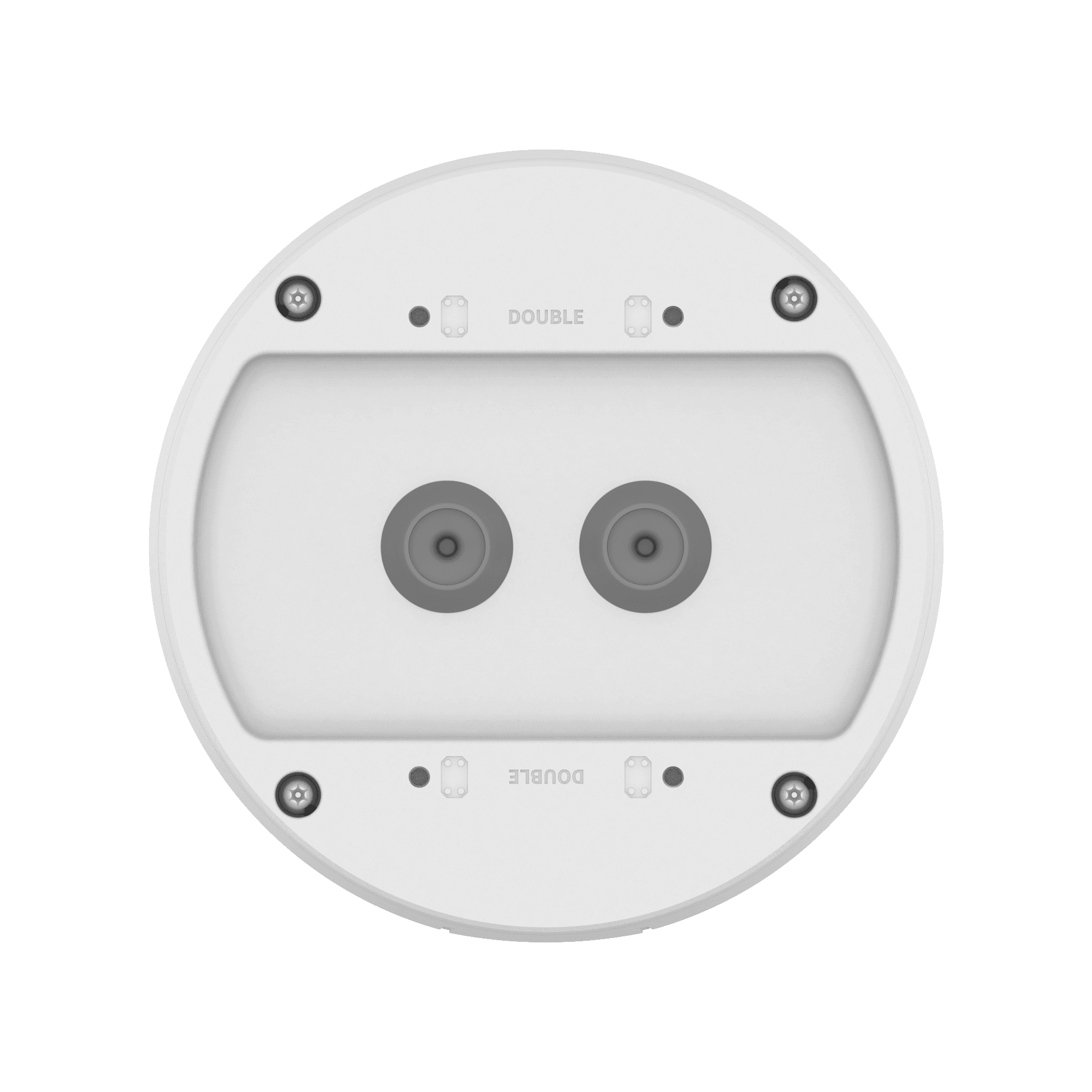

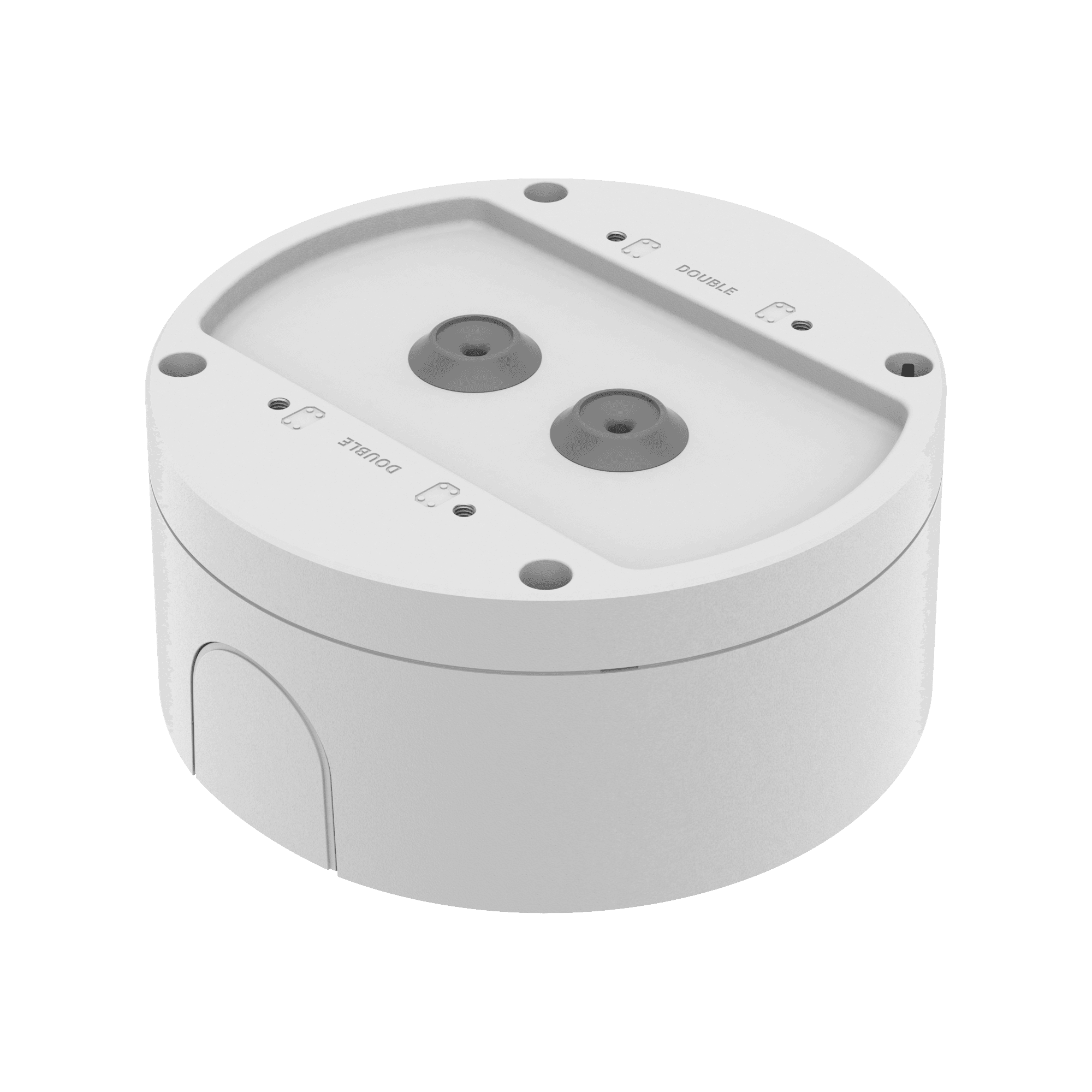

SBV-140WW
Waterproof Back BoxKey Features
• Color: White
• Material: Aluminum
• Weight: 835g(1.84lb)
• Product dimensions: ø144.2x64.5mm(ø5.68x2.54")
• Mount screw size: TR20
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBV-140WW_240124_EN.dwg | 2026-04-19 | |
| CAD | CAD_SBV-140WW_240124_EN.dxf | 2026-04-19 | |
| CAD | CAD_SBV-140WW_240124_EN.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SBV-140WW_230918_EN_NEMA4X.pdf | 2026-04-19 | |
| Certification | Certification_SBV-140WW_230919_EN_IP66.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-140WW_20250906_EN_090121.pdf | 2026-04-19 |
Specifications
Environmental
| Certification | IP66, NEMA 4X |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø144.2x64.5mm / 835g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C6083R, QNV-C8083R, QNV-C9083R ※ For further compatible models, please visit our website or use Toolbox |
Environmental
| Certification | IP66, NEMA 4X |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø144.2x64.5mm / 835g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C6083R, QNV-C8083R, QNV-C9083R ※ For further compatible models, please visit our website or use Toolbox |
