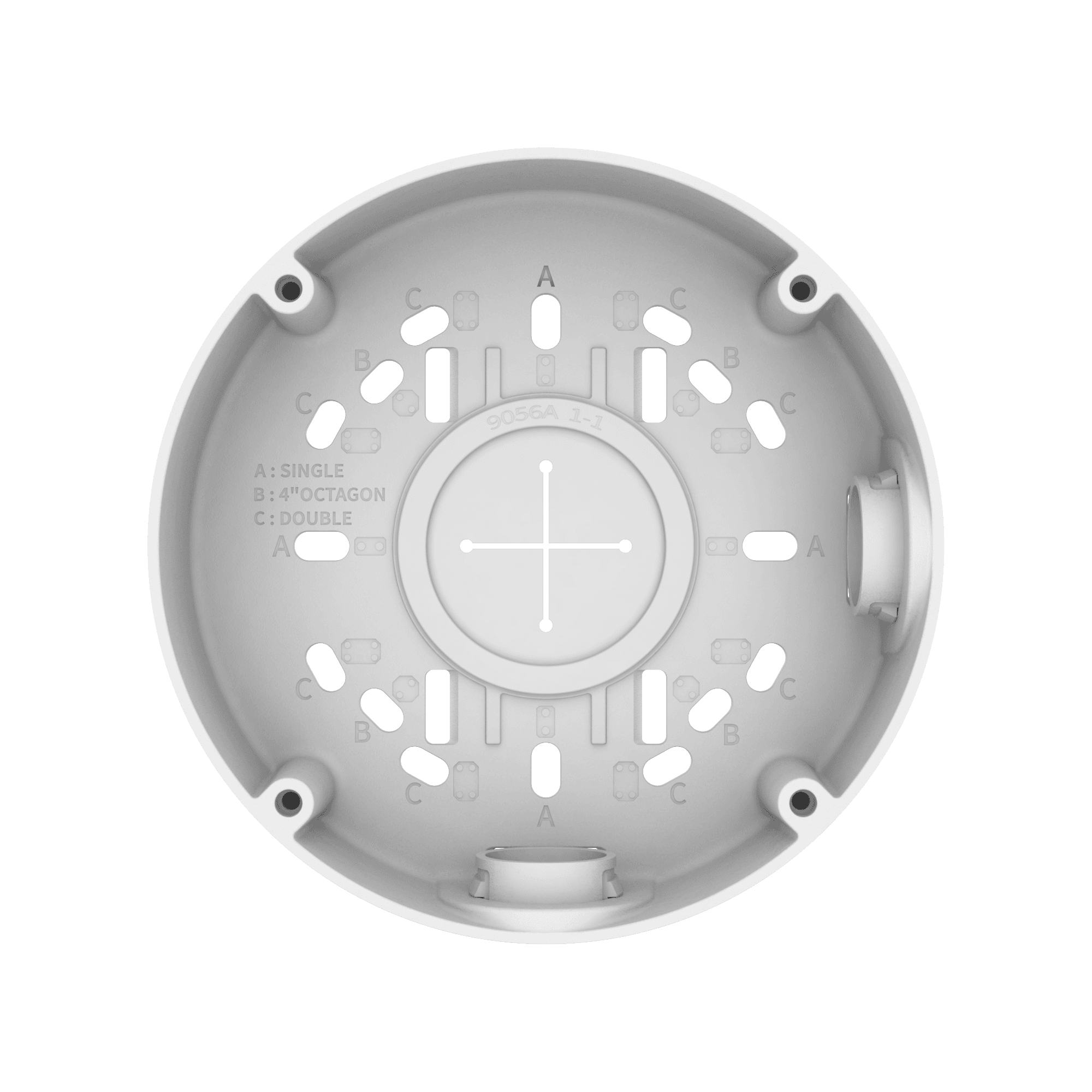

SBV-140BW
Back BoxKey Features
- Color: White
- Material: Aluminum
- Weight: 450g (0.99lb)
- Mount screw size: TR20
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBO-140BW,SBV-140BW,SBV-180BW_240220_EN.pdf | 2026-09-04 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBV-140BW_240126_EN.dxf | 2026-09-04 | |
| CAD | CAD_SBV-140BW_240126_EN.pdf | 2026-09-04 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-140BW_20260824_EN_165305.pdf | 2026-09-04 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø143x50.8mm / 450g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C8083R, QNV-C9083R, QNV-C8011R, QNV-C8012, QNV-C9011R ※ For further compatible models, please visit website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø143x50.8mm / 450g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C8083R, QNV-C9083R, QNV-C8011R, QNV-C8012, QNV-C9011R ※ For further compatible models, please visit website or use Toolbox |
