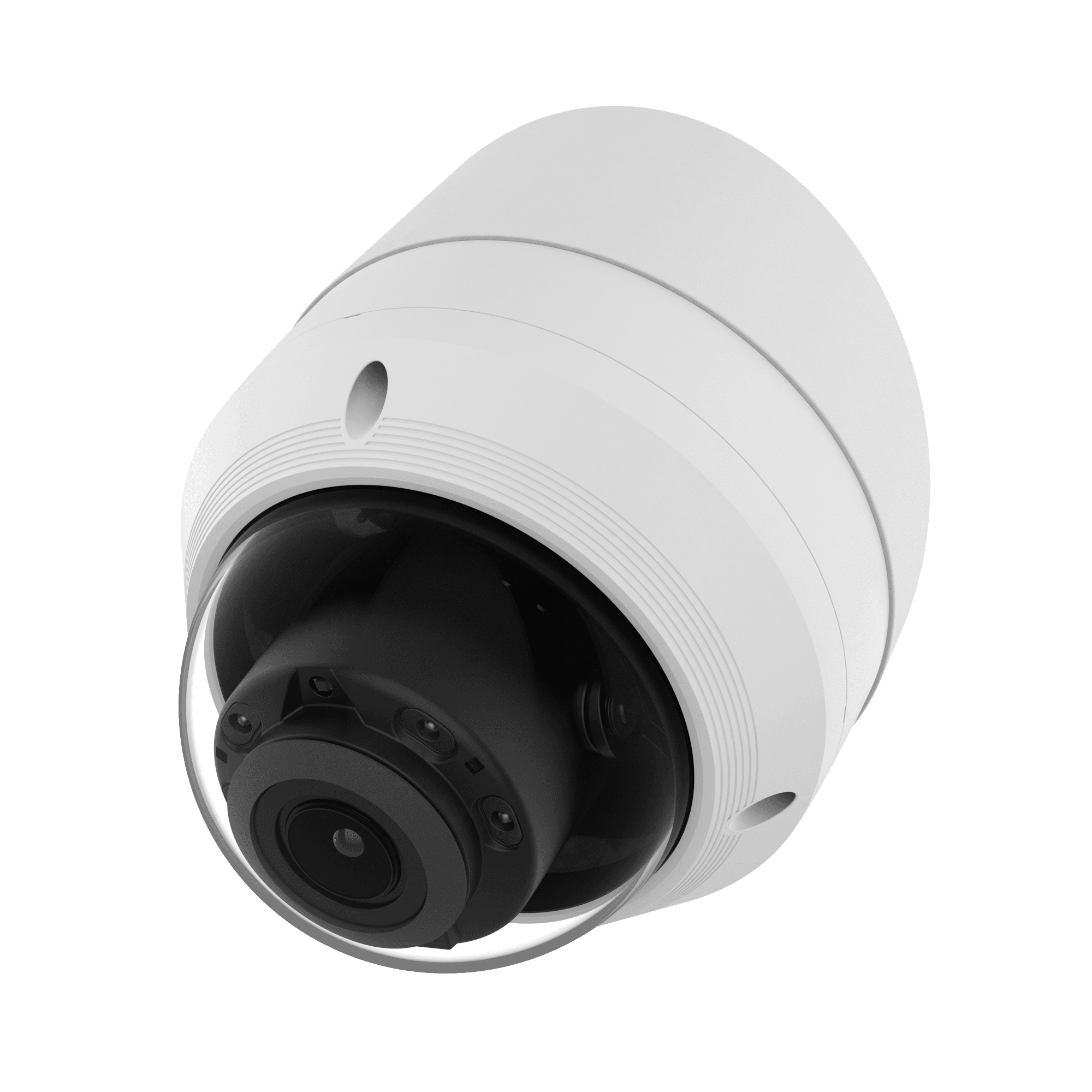

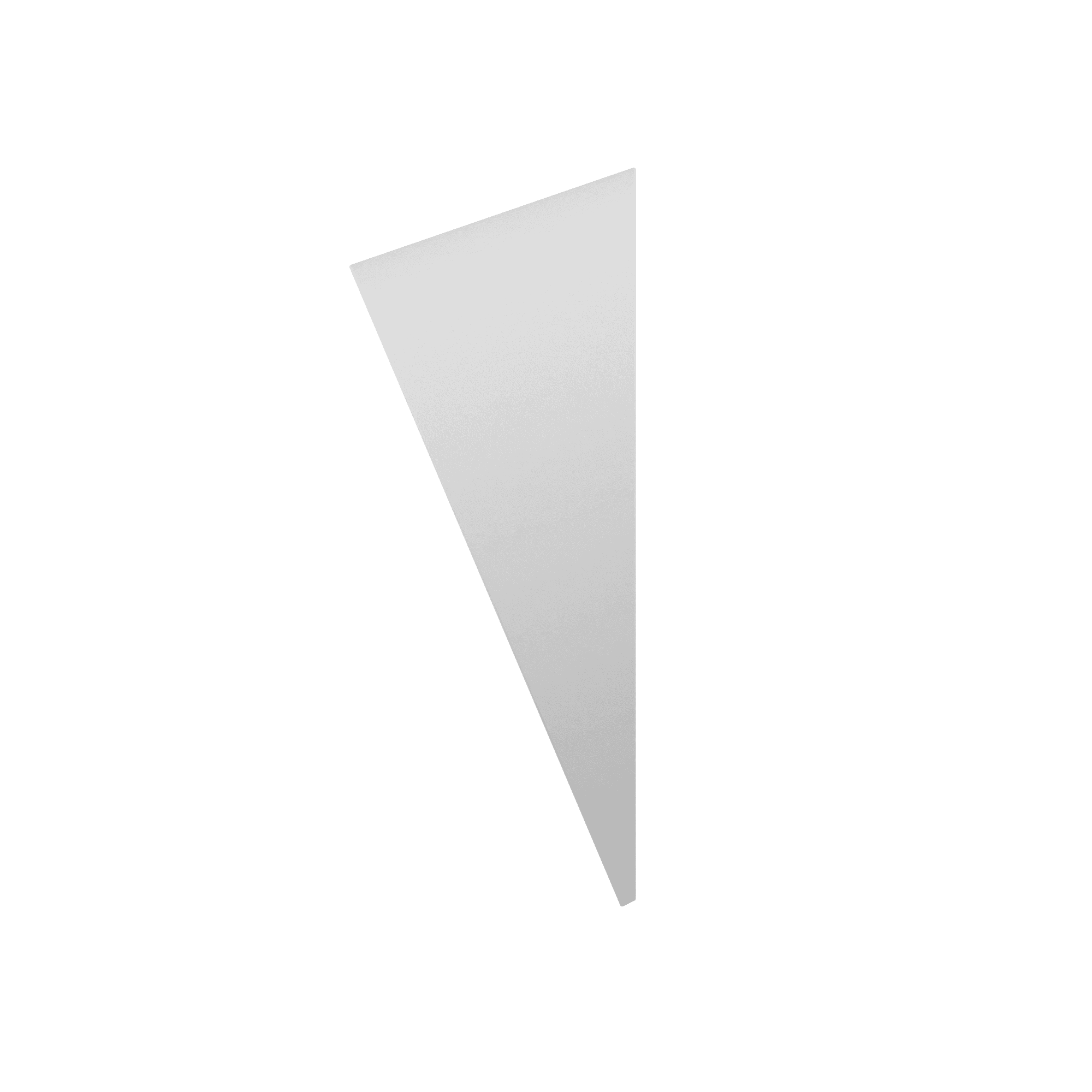

SBV-138TMW
Tilt MountKey Features
- Material: Aluminum
- Dimensions: Ø137.9x56.8mm(Ø5.43x2.24")
- Weight: 220g
- Color: White
- Supported products: QNV-6072R/6082R, QNV-7082R, QNV-8080R, LNV-6072R
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBV-138TMW_230322_Common.pdf | 2026-08-10 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBV-138TMW_220412_Common.pdf | 2026-08-10 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-138TMW_20260227_EN_093952.pdf | 2026-08-10 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø137.9x56.8mm(ø5.43x2.24") / 220g | |
| Mount Screw size | TR20 | |
| Supported products | QNV-6082R, QNV-8080R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø137.9x56.8mm(ø5.43x2.24") / 220g | |
| Mount Screw size | TR20 | |
| Supported products | QNV-6082R, QNV-8080R ※ For further compatible models, please visit our website or use Toolbox |
Accessories
QNV-6072R1
QNV-8080R

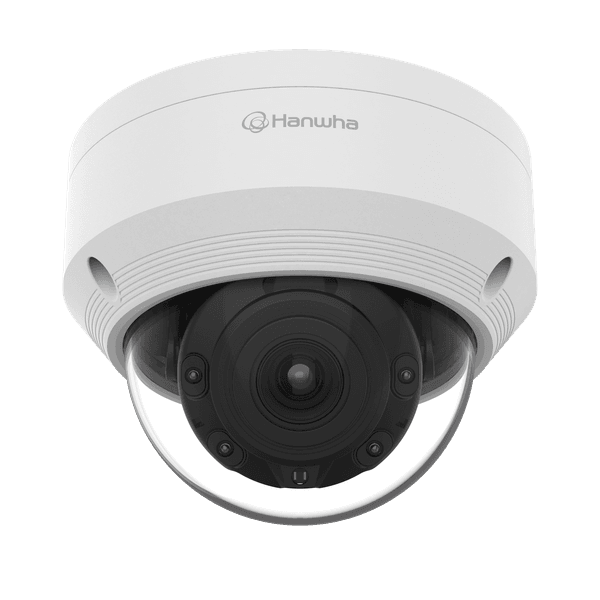

LNV-6072R
QNV-7082R
QNV-6082R
