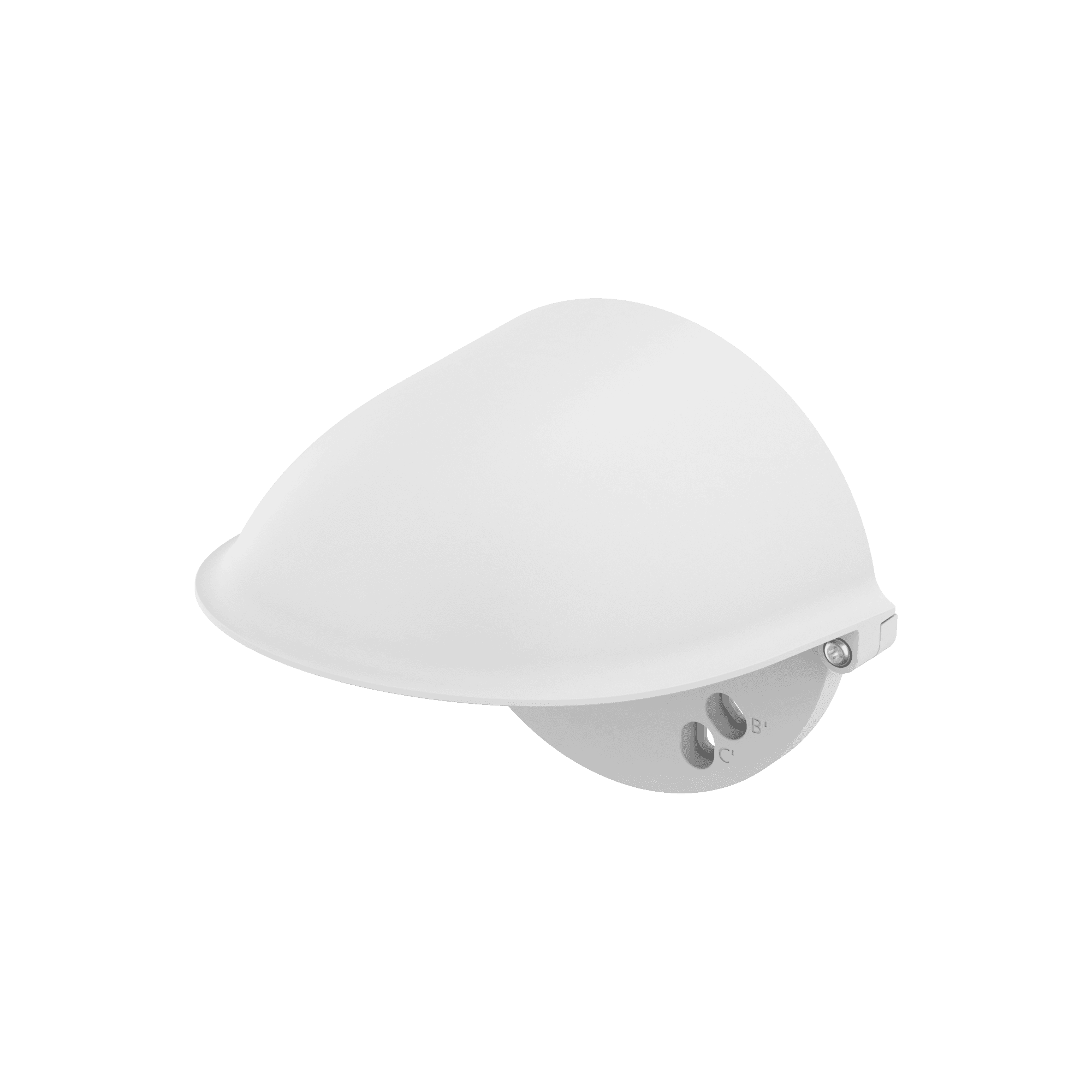

SBV-120WCW
Weather CapKey Features
• Weight : 184g

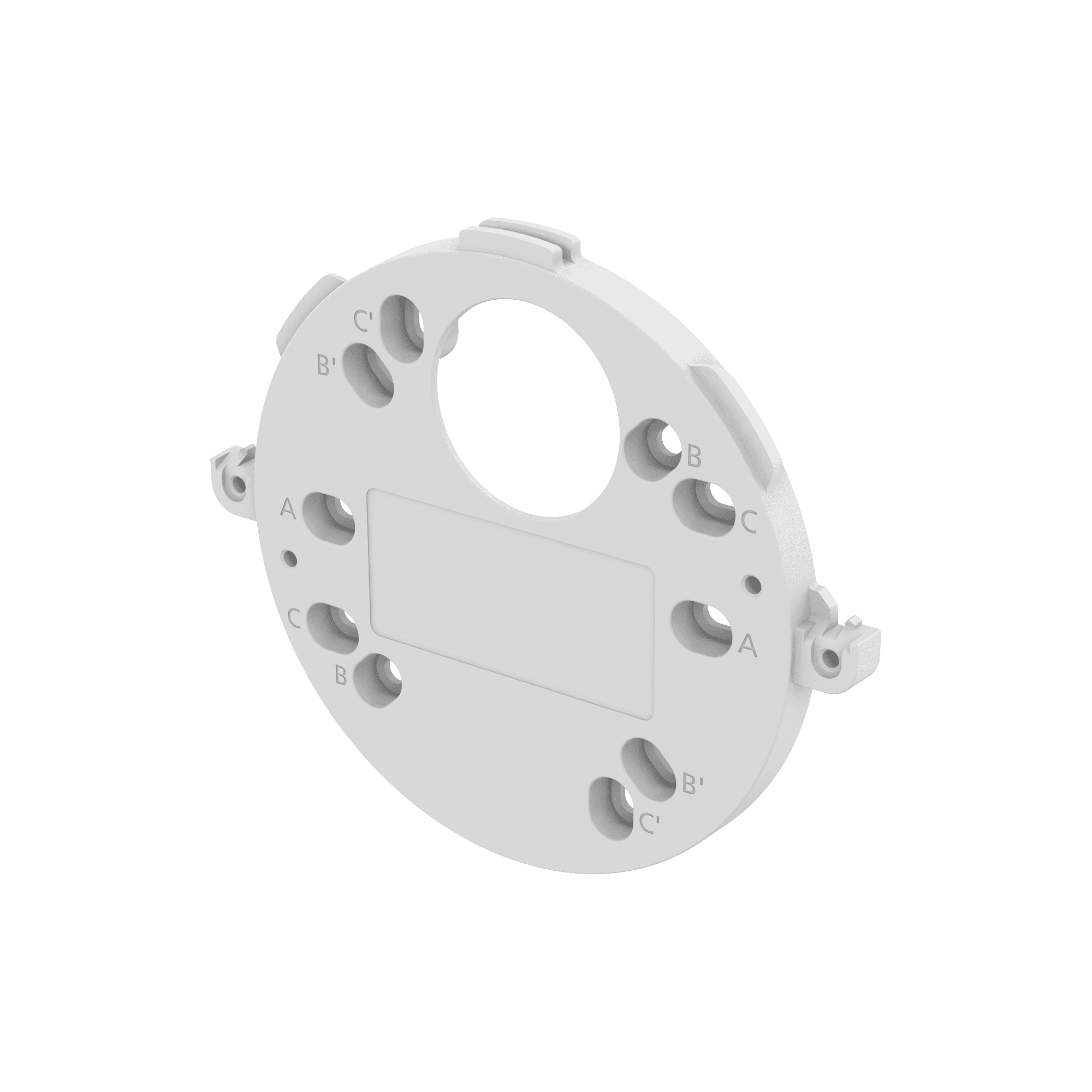

• Material : PC(Cap), Aluminum(Plate)
• Color : White
• Operation Temp. : -50°C~60°C
• Operation Hum. : 0~100%
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | SBV-120WC_CAD_170327.dwg | 2026-04-19 | |
| CAD | SBV-120WC_CAD_170327.dxf | 2026-04-19 | |
| CAD | SBV-120WC_CAD_170327.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBV-120WCW_20250906_EN_085609.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SBV-120WCW_200610_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SBV-120WCW_200610_Common_mm.rfa | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SBV-120WCSBV-160WCSBV-120WCWSBV-160WCW_230317_Common.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 144.9x131.6x127.7mm / 195g | |
| Supported products | QNV-6012R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 144.9x131.6x127.7mm / 195g | |
| Supported products | QNV-6012R ※ For further compatible models, please visit our website or use Toolbox |
