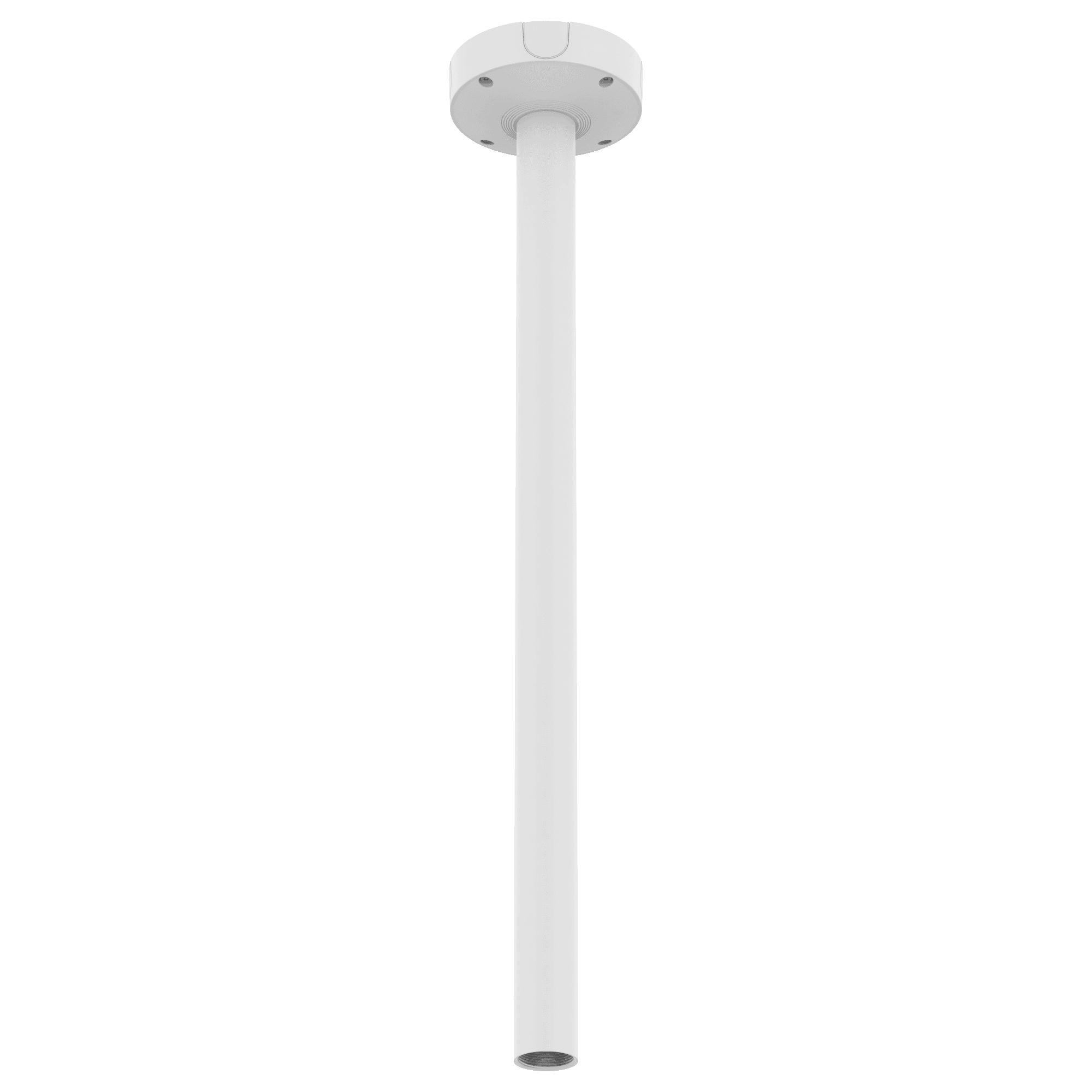

SBP-900CMW
Ceiling MountKey Features
- Weight : 2.7kg (5.93lb)
- Material : Aluminum
- Color : White
- Mount screw size: TR30
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-300CMW1,SBP-900CMW_230707_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-900CMW_230227_EN.dxf | 2026-04-19 | |
| CAD | CAD_SBP-900CMW_230227_EN.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-900CMW_20260227_EN_093458.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø180x958.5mm / 2,700g | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-C15P, SBP-150CMP, SBP-300CMP, SBP-900CMP ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø180x958.5mm / 2,700g | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-C15P, SBP-150CMP, SBP-300CMP, SBP-900CMP ※ For further compatible models, please visit our website or use Toolbox |
