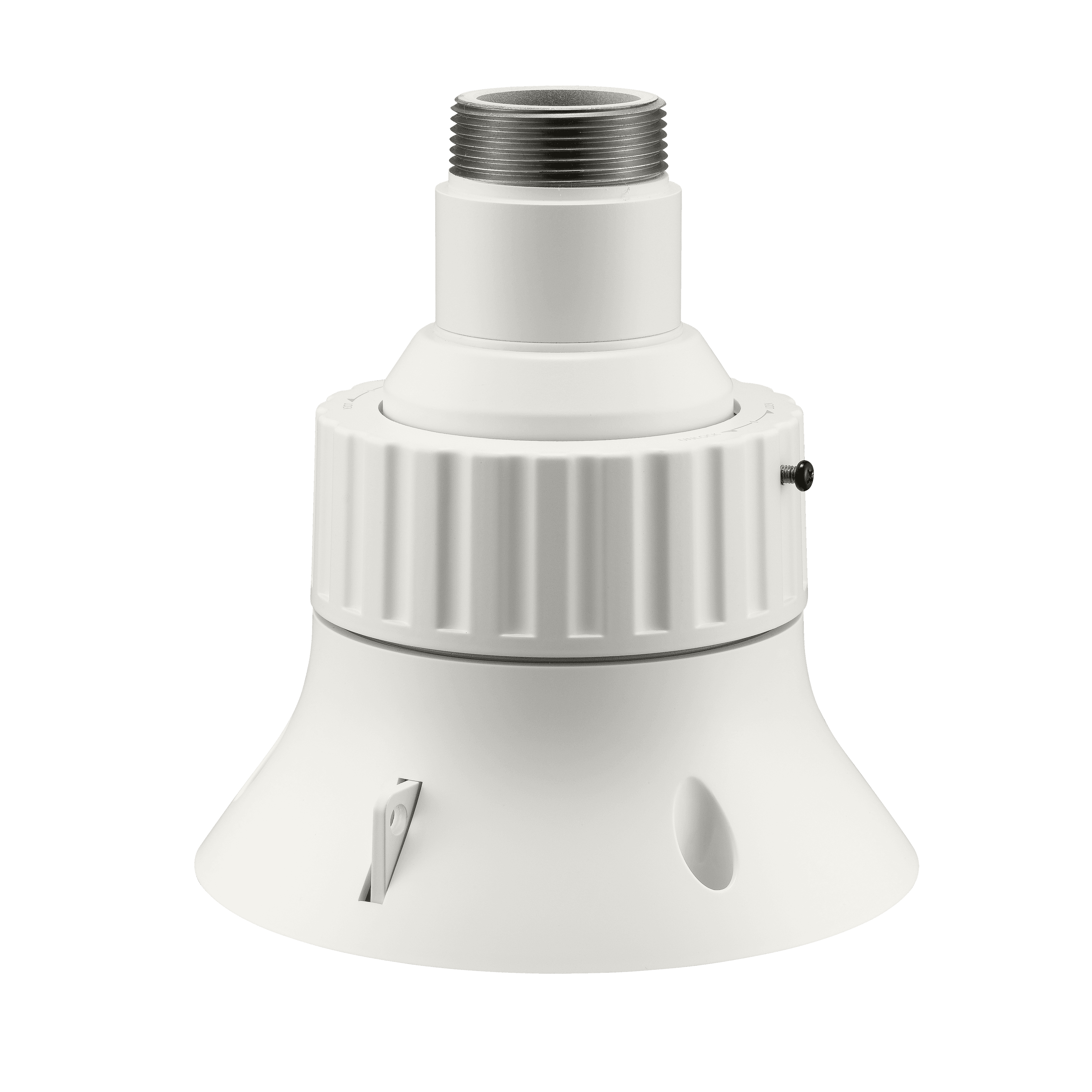

SBP-303HF
Built-in SFP Install Base for PTZ CamerasKey Features
• Aluminum
• LC SFP port type
• 100Mbps Ethernet speed (Default speed : 1000Mbps)
• IEEE 802.3u, IEEE 802.3z support
• Audio input/output, 3.5mm type
• 24V AC, IP66, IK10, -50°C to +55°C
• Mount screw size : PF 1 1/2"
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-300HF,SBP-301HF,SBP-302HF,SBP-303HF_181121.dxf | 2026-04-19 | |
| CAD | CAD_SBP-300HF,SBP-301HF,SBP-302HF,SBP-303HF_181121.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-303HF_20260128_EN_162937.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SBP-303HF_200610_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SBP-303HF_200610_Common_mm.rfa | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_SBP-300HFSBP-301HFSBP-302HFSBP-303HF_230331_Common.pdf | 2026-04-19 |
Specifications
Environmental
| Operating Temperature / Humidity | -50°C to +55°C / Less than 90% RH | |
| Certification | IP66, IK10 |
Electrical
| Input Voltage | 24V AC | |
| Power Consumption | 4.1A, 92W Max (Heater ON) |
Mechanical
| Material | Aluminum | |
| Product dimensions / weight | Ø163.9 x H157.9mm / 1.1kg Ø163.9 x H187.9mm (with NPT-Coupling) / 1.4kg (with NPT-Coupling) | |
| Supported products | XNP-6550RH/6371RH/6320H/ QNP-6230H/6230RH |
Environmental
| Operating Temperature / Humidity | -50°C to +55°C / Less than 90% RH | |
| Certification | IP66, IK10 |
Electrical
| Input Voltage | 24V AC | |
| Power Consumption | 4.1A, 92W Max (Heater ON) |
Mechanical
| Material | Aluminum | |
| Product dimensions / weight | Ø163.9 x H157.9mm / 1.1kg Ø163.9 x H187.9mm (with NPT-Coupling) / 1.4kg (with NPT-Coupling) | |
| Supported products | XNP-6550RH/6371RH/6320H/ QNP-6230H/6230RH |
