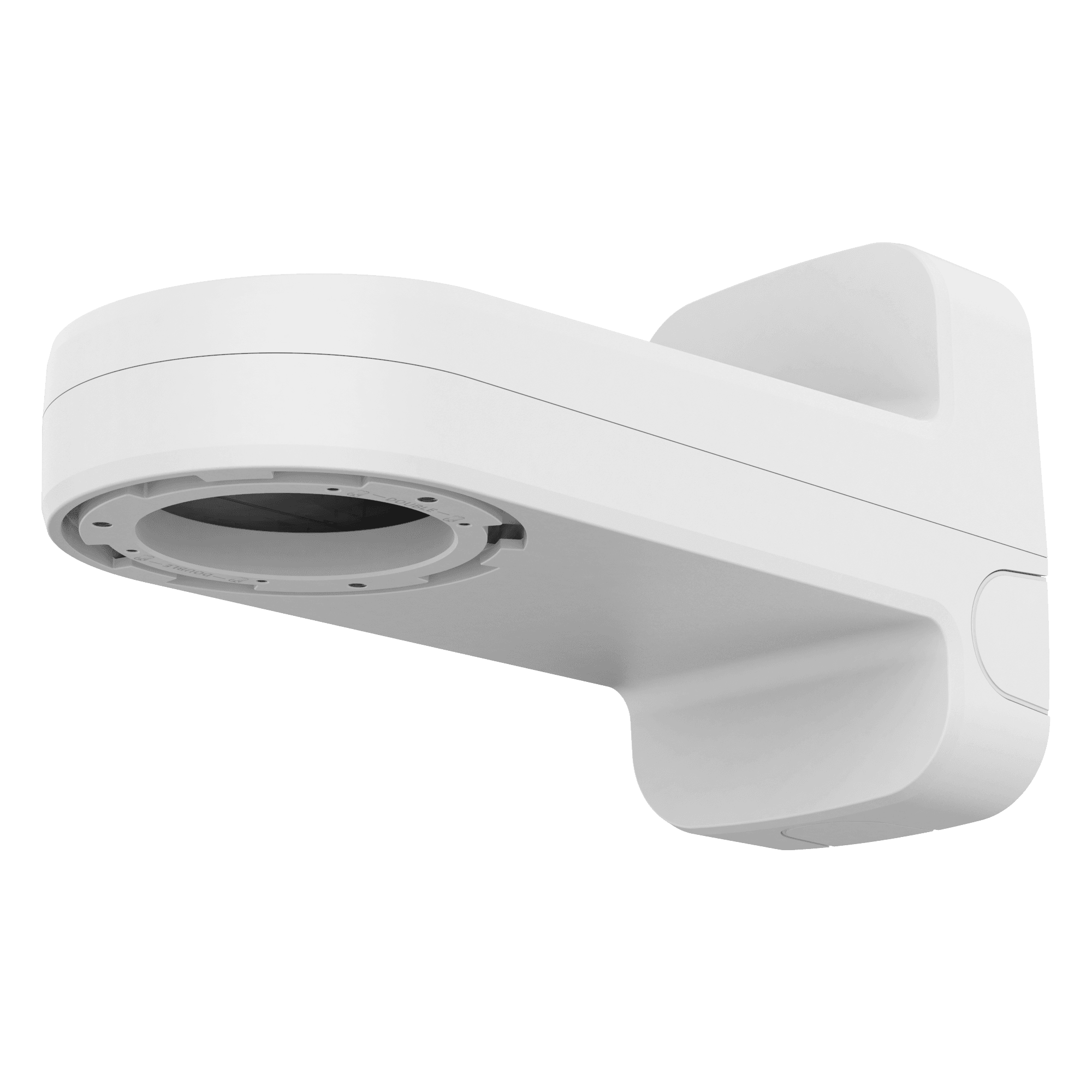

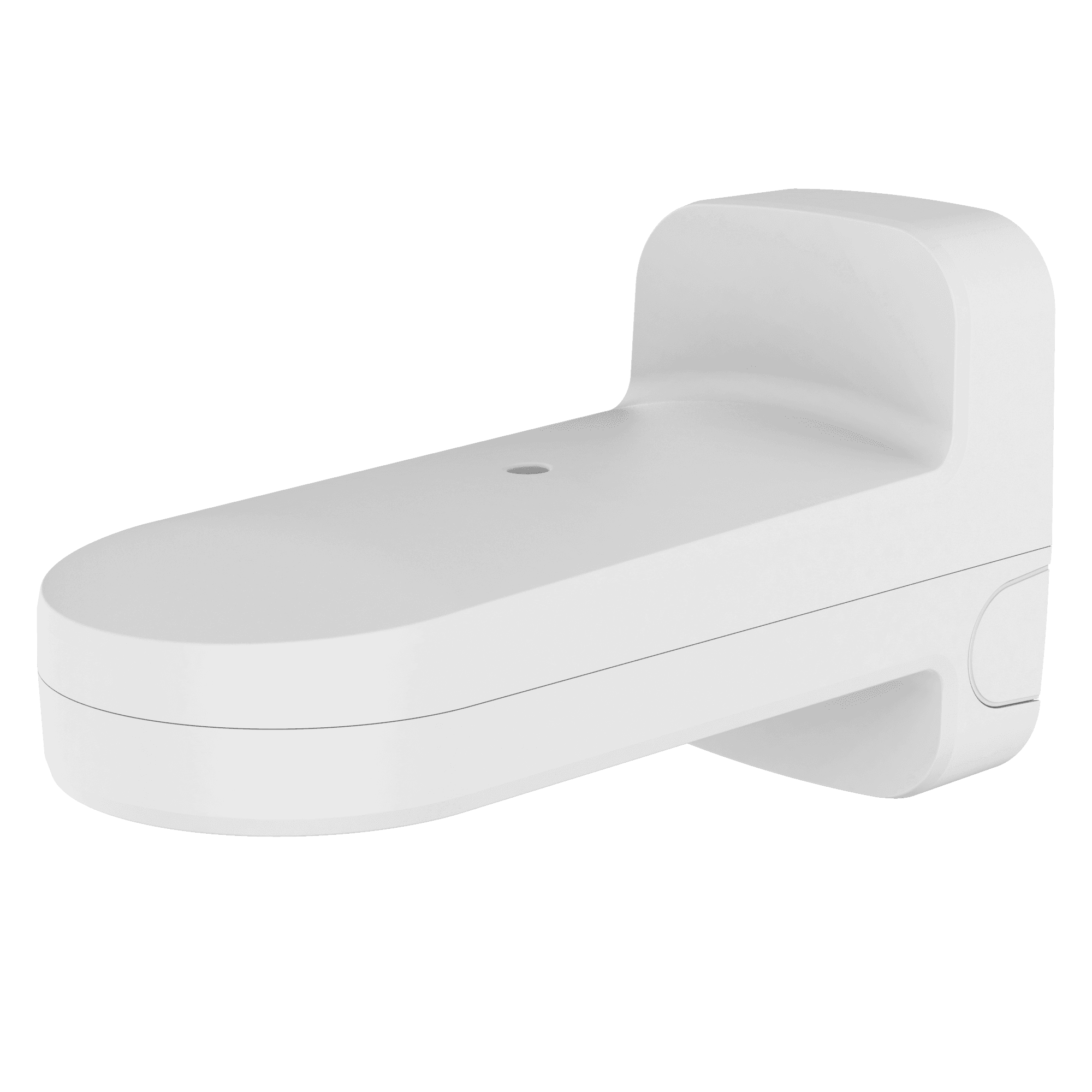

SBP-250WMW
Wall&Pole MountKey Features
- Color : White
- Mount screw size : TR30
- Max. load : 20kg
- Conduit hole : M25, 3pcs
※ Wall&Pole adaptor should be prepared for some cases
- PTZ plus : SBP-115PA needed
- Hanging adaptor : SBP-115PFA needed
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-250WMW_240105_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-250WMW_240110_EN.dxf | 2026-04-19 | |
| CAD | CAD_SBP-250WMW_240110_EN.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-250WMW_20260227_EN_090625.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 315.8x137x183mm / 1,940g | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25), 3pcs | |
| Supported products | SBP-115PFA, SBP-115PA, XND-C6083RV, XNV-6083R, QNV-C6083R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 315.8x137x183mm / 1,940g | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25), 3pcs | |
| Supported products | SBP-115PFA, SBP-115PA, XND-C6083RV, XNV-6083R, QNV-C6083R ※ For further compatible models, please visit our website or use Toolbox |
