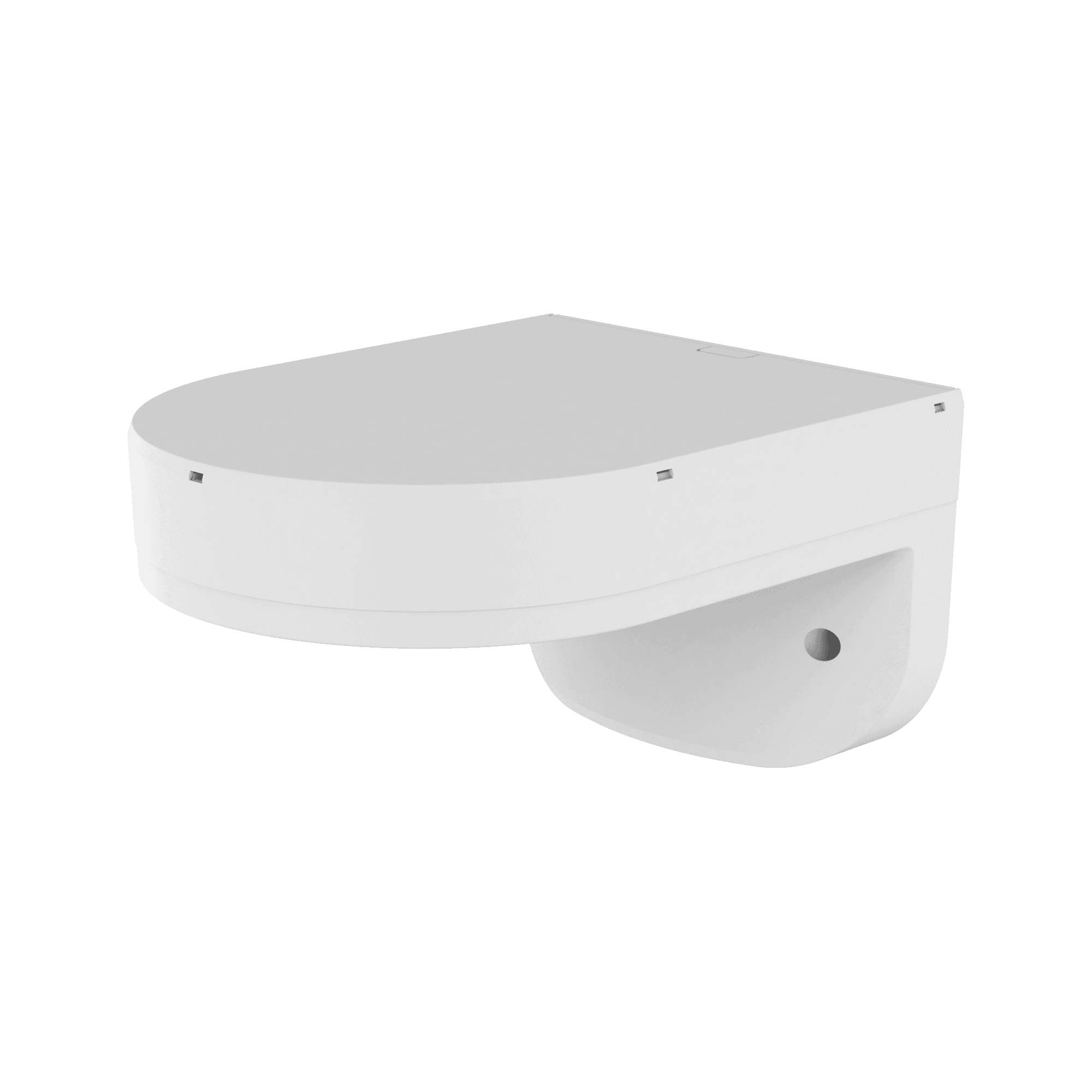

Key Features

Material: Body : Aluminum, Cover : Polycarbonate(PC)
Dimensions: 169.7(W)x118.3(H)x214.8(D)mm(6.68x4.66x8.46"), 696g(1.53lb)
Weight: 696g(1.53lb)
Color: White
Conduit hole: 19.1mm(3/4")(M25)

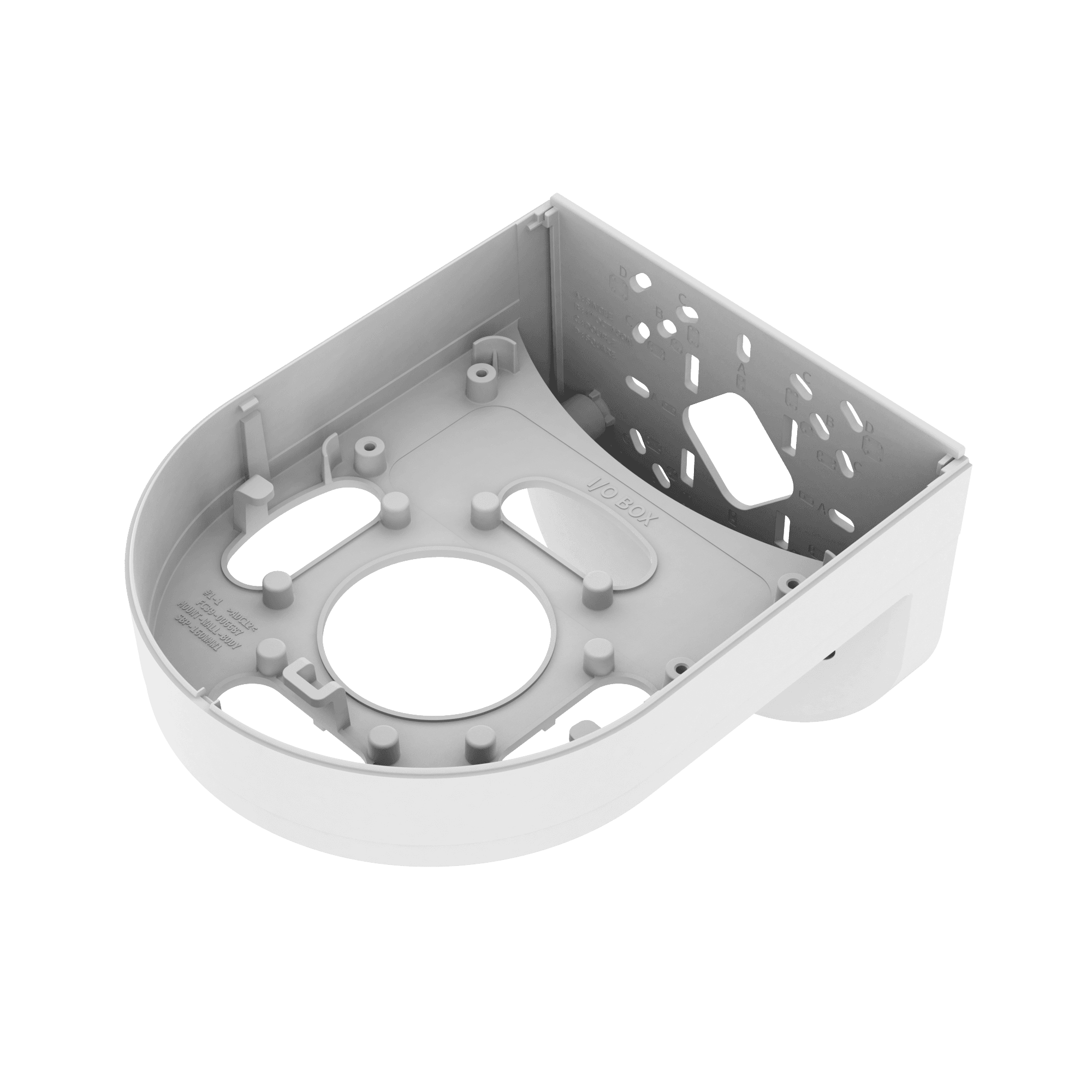

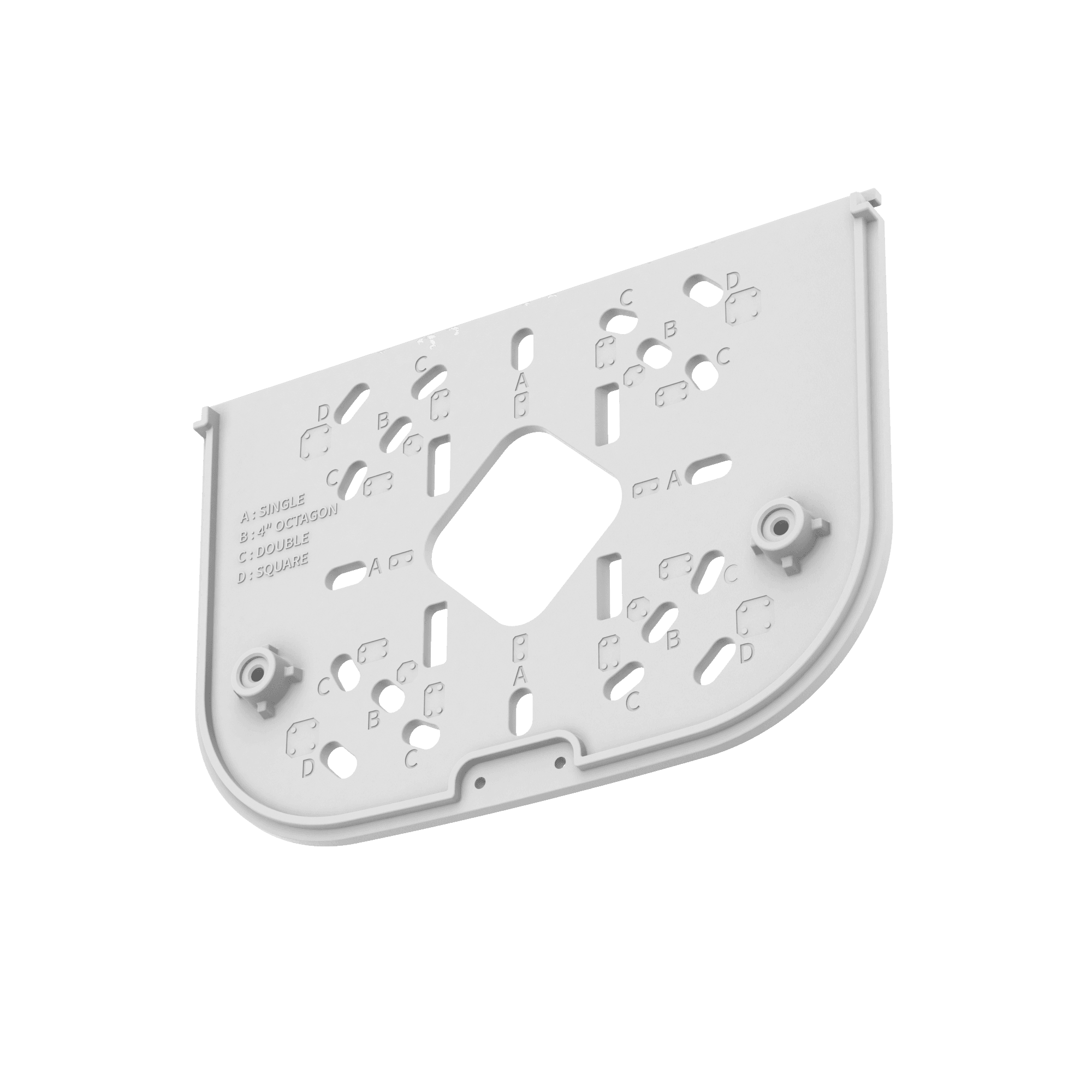

※ Gangbox hole : support single, double, 4" octagon, 4" square

Downloads

View Selection

Manuals

	Category	File Name	Last Update
	Manuals	Manuals_SBP-160WMW1,SBP-140WMW,SBP-125WMW1_240108_EN.pdf	2026-08-13

CAD

	Category	File Name	Last Update
	CAD	CAD_SBP-160WMW1_240812_Common.dxf	2026-08-13
	CAD	CAD_SBP-160WMW1_240812_Common.pdf	2026-08-13

DataSheet

	Category	File Name	Last Update
	DataSheet	DataSheet_SBP-160WMW1_20260227_EN_094021.pdf	2026-08-13

Specifications

Mechanical

Color		White
Material		PC(Polycarbonate), Aluminum
RAL code		RAL9003
Product dimensions / weight		169.7x118.3x214.8mm / 696g
Mount Screw size		TR20
Max. load		5kg
Conduit hole		19.1mm(3/4")(M25)
Supported products		XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV ※ For further compatible models, please visit our website or use Toolbox

Accessories

XND-6083RV

XND-C6083RV

XNV-C9083R

XNV-C7083R

XND-C9083RV

XND-C8083RV

XND-9083RV

XNV-C8083R

XND-C7083RV

XNV-C6083R

XND-8083RV
