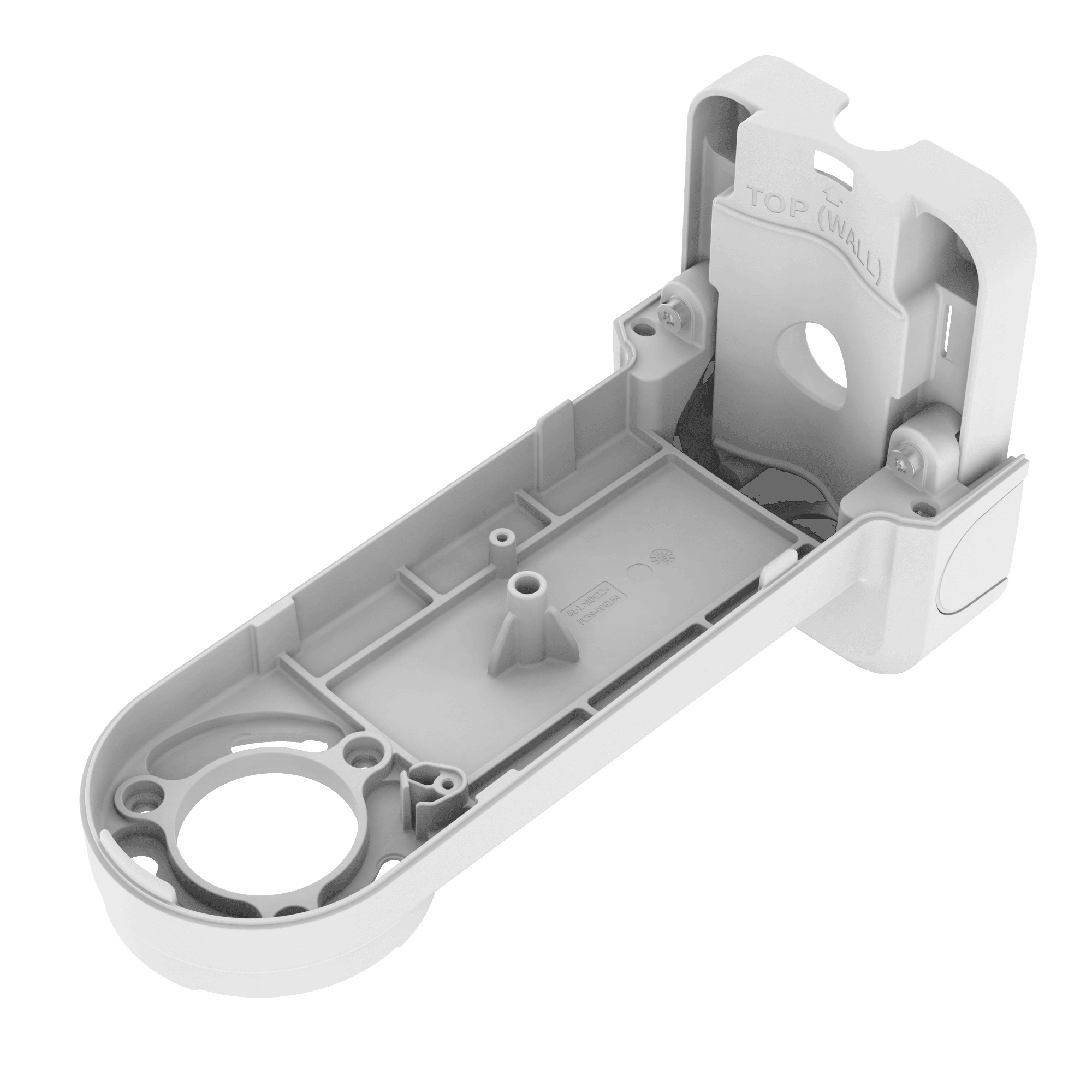

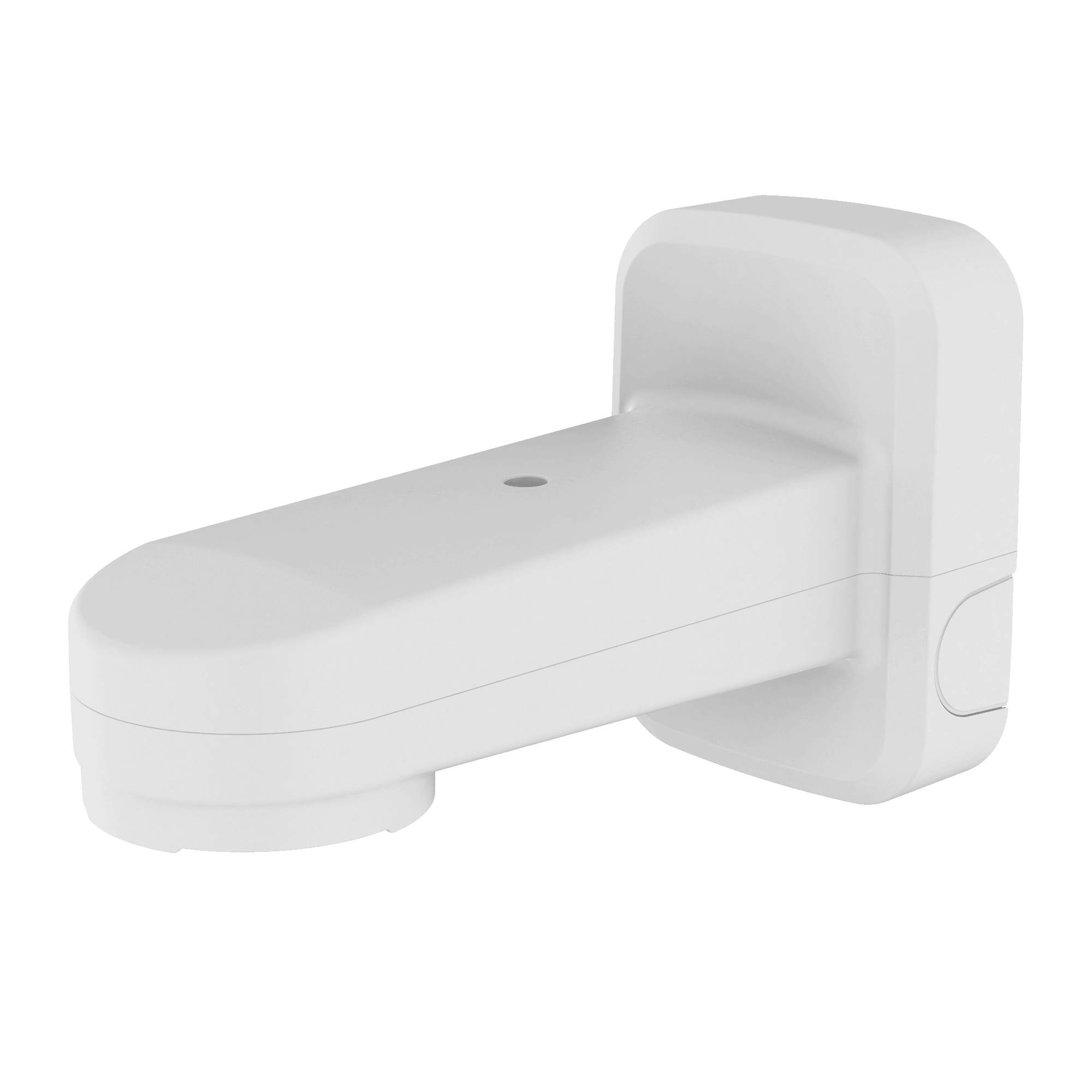

SBP-156WMW
Wall&Pole Mount for PTZ CamerasKey Features
- Material : Aluminum
- Color : White
- Dimensions :135(W) x 183(H) x 302(D)mm (5.31 x 7.20 x 11.89")
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-156WMW_240625_Common.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-156WMW_200827.dxf | 2026-04-19 | |
| CAD | CAD_SBP-156WMW_200827.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-156WMW_20260227_EN_103222.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SBP-156WMW_201208_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SBP-156WMW_201208_Common_mm.rfa | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 135x183x302mm / 1,517g | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XNP-C9310R, XNP-C9303RW, XNP-C9253R, XNP-C9253 ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 135x183x302mm / 1,517g | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XNP-C9310R, XNP-C9303RW, XNP-C9253R, XNP-C9253 ※ For further compatible models, please visit our website or use Toolbox |
Accessories
XNP-9300RW
XNP-8300RW
XNP-6400RW
