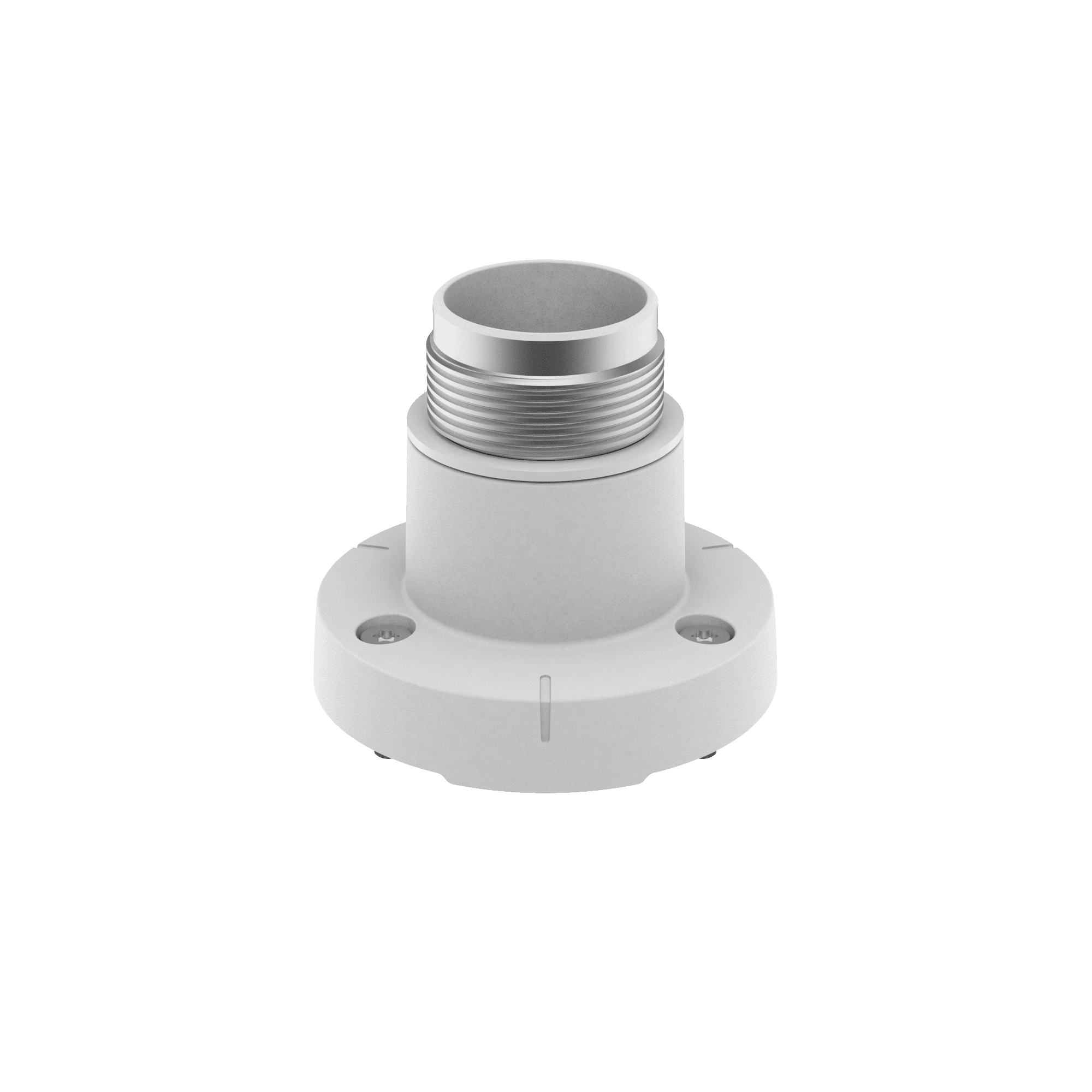

SBP-156HMW
Hanging AdaptorKey Features
• Material : Aluminum
• Color : White
• Dimensions : Φ95.5x84.0 mm( Φ3.76x3.31")
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-156HMW_230322_Common.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-156HMW_211005_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBP-156HMW_211005_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-156HMW_20260127_EN_153723.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SBP-156HMW_201208_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SBP-156HMW_201208_Common_mm.rfa | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø95.5x84mm / 200g | |
| Mount Screw size | TR30 | |
| Max. load | 5kg | |
| Supported products | XNP-C9310R, XNP-C9303RW, XNP-C9253R, XNP-C9253 ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø95.5x84mm / 200g | |
| Mount Screw size | TR30 | |
| Max. load | 5kg | |
| Supported products | XNP-C9310R, XNP-C9303RW, XNP-C9253R, XNP-C9253 ※ For further compatible models, please visit our website or use Toolbox |
Accessories
XNP-9300RW
XNP-8300RW
XNP-6400RW
