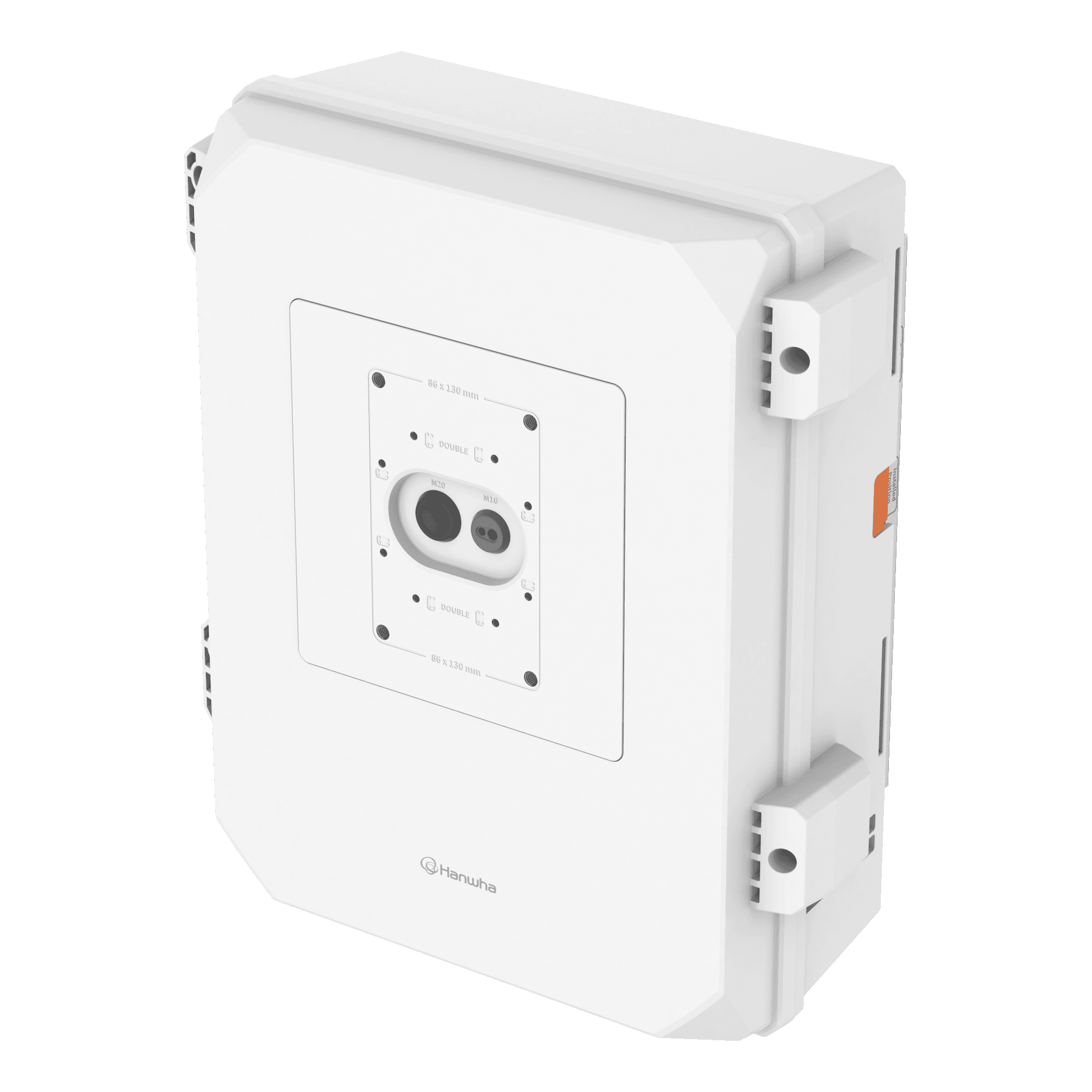

SBP-150NBW
CabinetKey Features
- Operating Temperature: -40°C~+65°C (-40°F~+149°F) / 0~100% RH (condensing)
- Material: PC (Polycarbonate), Aluminum
- Dimensions : 360x420x163.1mm
- Weight : 3,960g
- Color : White
- Max. load: 15kg
- Certification: IP66, IK10, NEMA 4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-150NBW_250822_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-150NBW_240704_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBP-150NBW_240704_Common.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SBP-150NBW_240522_EN_IP66.pdf | 2026-04-19 | |
| Certification | Certification_SBP-150NBW_240523_EN_IK10.pdf | 2026-04-19 | |
| Certification | Certification_SBP-150NBW_240621_EN_NEMA4X.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-150NBW_20260127_EN_152950.pdf | 2026-04-19 |
Specifications
Environmental
| Operating Temperature / Humidity | -40°C~+65°C / 0~100% RH (condensing), Humidity control /w Air vent | |
| Certification | IP66, IK10, NEMA 4X |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 360x420x163.1mm / 3,960g | |
| Mount Screw size | TR20, T30 | |
| Max. load | 15kg | |
| Conduit hole | 12.7mm(1/2")(M20), 19.1mm(3/4")(M25) | |
| Supported products | SBP-250WMW, SBP-400WMW, SBP-150PMW, XND-C6083RV, PNV-A9081R, XNO-6083R, QNV-C8083R ※ For further compatible models, please visit our website or use Toolbox |
Environmental
| Operating Temperature / Humidity | -40°C~+65°C / 0~100% RH (condensing), Humidity control /w Air vent | |
| Certification | IP66, IK10, NEMA 4X |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 360x420x163.1mm / 3,960g | |
| Mount Screw size | TR20, T30 | |
| Max. load | 15kg | |
| Conduit hole | 12.7mm(1/2")(M20), 19.1mm(3/4")(M25) | |
| Supported products | SBP-250WMW, SBP-400WMW, SBP-150PMW, XND-C6083RV, PNV-A9081R, XNO-6083R, QNV-C8083R ※ For further compatible models, please visit our website or use Toolbox |
Accessories
SBP-250WMW
SBP-156WMW
SBP-400WMW
SBP-150PMW
XND-C6083RV
PNV-A9081R
XNO-6083R
QNV-C8083R
