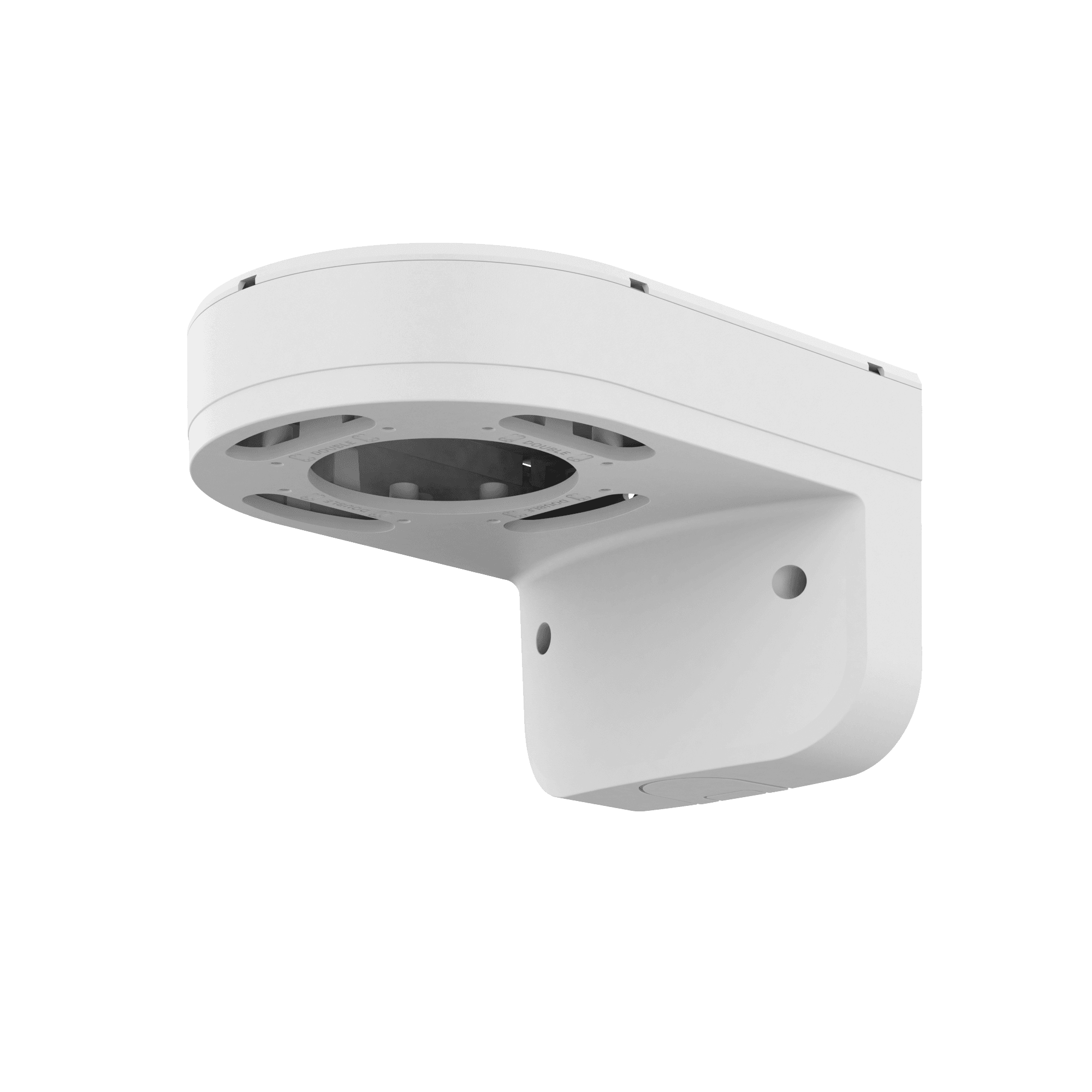

SBP-140WMW
Wall&Pole MountKey Features
- Weight : 631g (1.39lb)
- Material : Body-Aluminum, Cover-Polycarbonate (PC)
- Dimension: 198.2x145.5x118.3mm(7.80x5.73x4.66")
- Color: White
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-160WMW1,SBP-140WMW,SBP-125WMW1_240108_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-140WMW_240611_Common.dwg | 2026-04-19 | |
| CAD | CAD_SBP-140WMW_240611_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBP-140WMW_240611_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-140WMW_20260227_EN_092927.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 198.2x145.5x118.3mm / 631g | |
| Mount Screw size | TR20 | |
| Max. load | 3kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C6083R, QNV-C8083R, QNV-C9083R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 198.2x145.5x118.3mm / 631g | |
| Mount Screw size | TR20 | |
| Max. load | 3kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C6083R, QNV-C8083R, QNV-C9083R ※ For further compatible models, please visit our website or use Toolbox |
