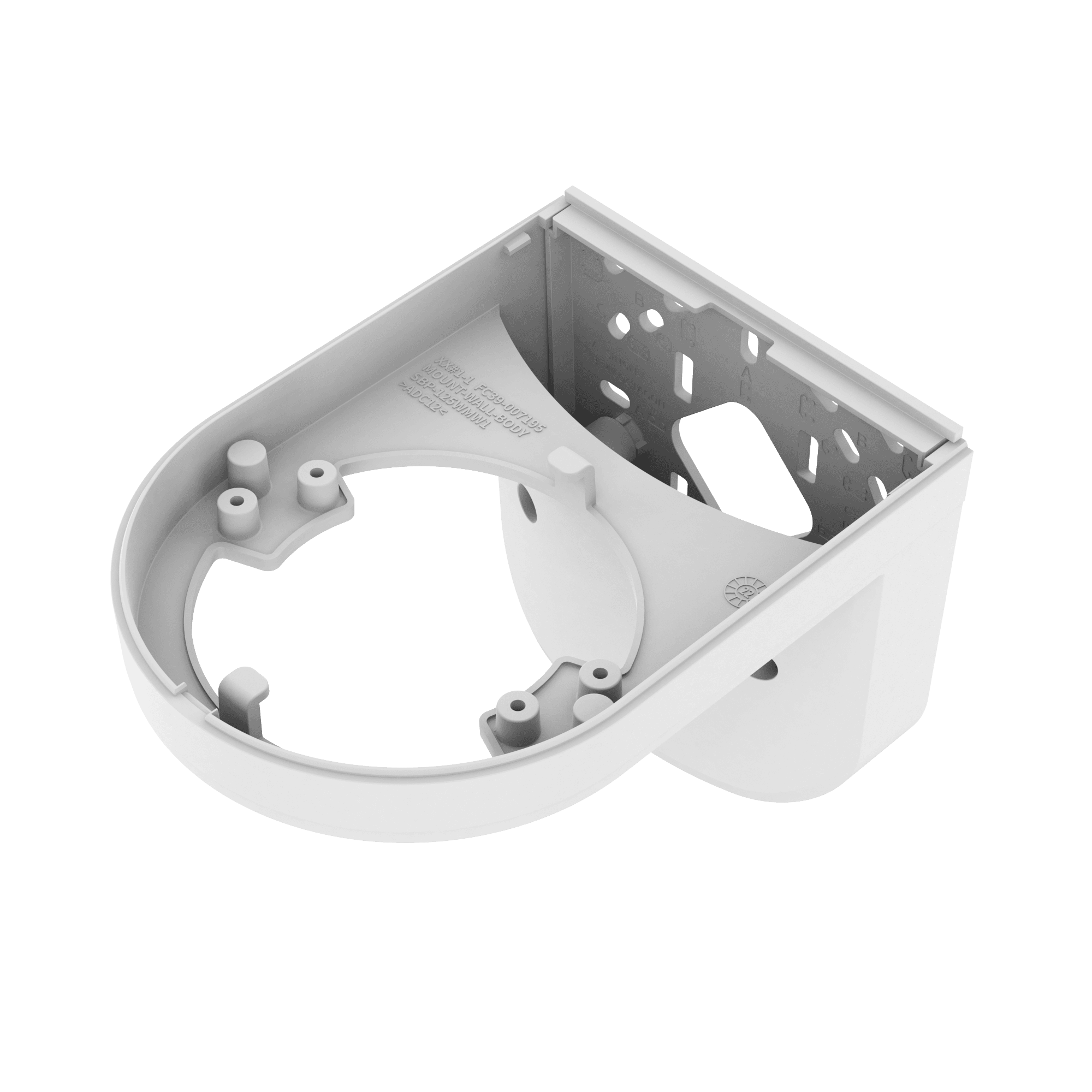

SBP-125WMW1
Wall&Pole MountKey Features
- Weight : 505g (1.11lb)
- Material : Body- Aluminum, Cover- Polycarbonate (PC)
- Dimension: 174.4x128.5x118.3mm (6.87x5.06x4.66")
- Color: White
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-160WMW1,SBP-140WMW,SBP-125WMW1_240108_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-125WMW1_220612_Common.dwg | 2026-04-19 | |
| CAD | CAD_SBP-125WMW1_220612_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBP-125WMW1_220612_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-125WMW1_20260227_EN_093057.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 174.4x128.5x118.3mm / 505g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C8011R, QNV-C8012, QNV-C9011R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 174.4x128.5x118.3mm / 505g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | QNV-C8011R, QNV-C8012, QNV-C9011R ※ For further compatible models, please visit our website or use Toolbox |
