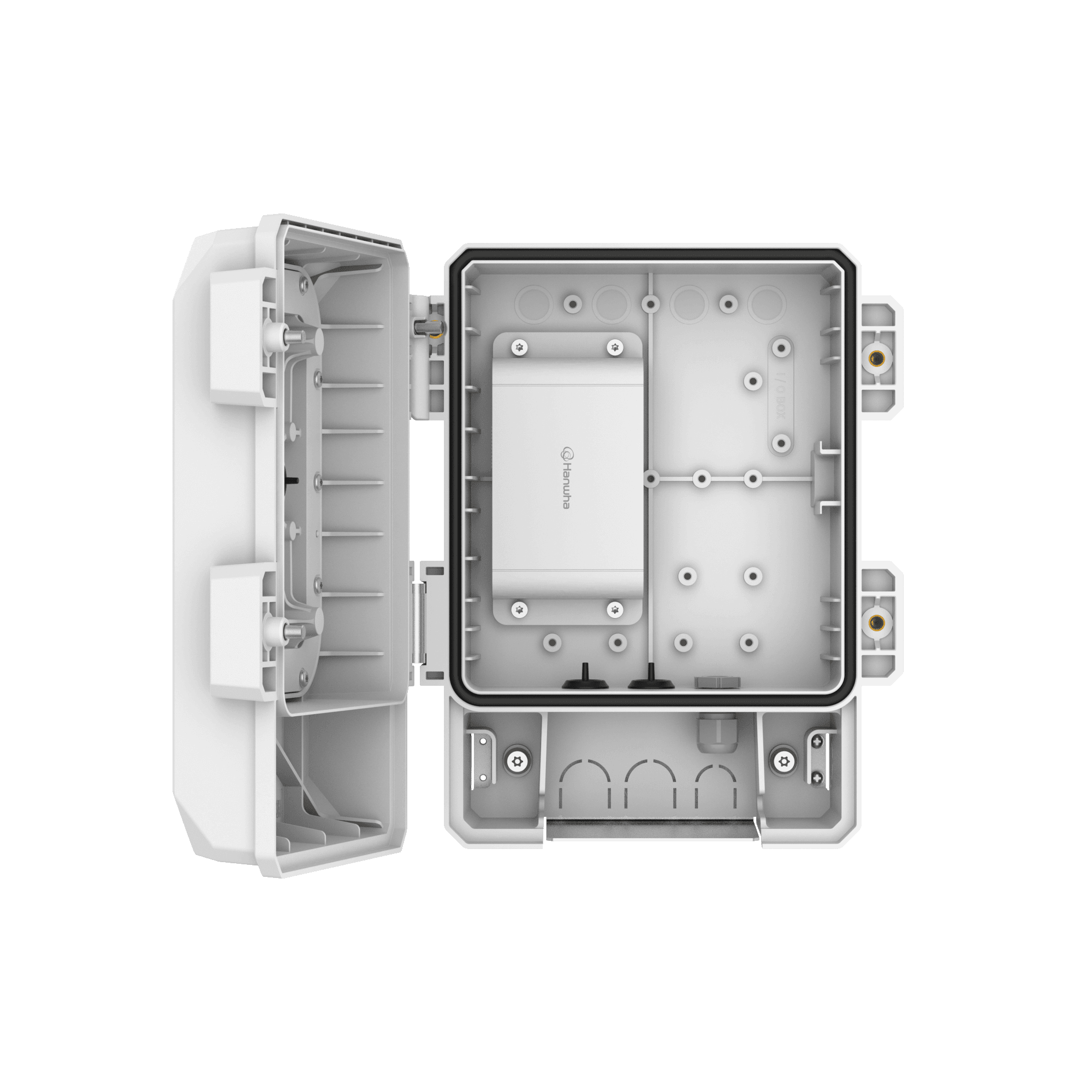

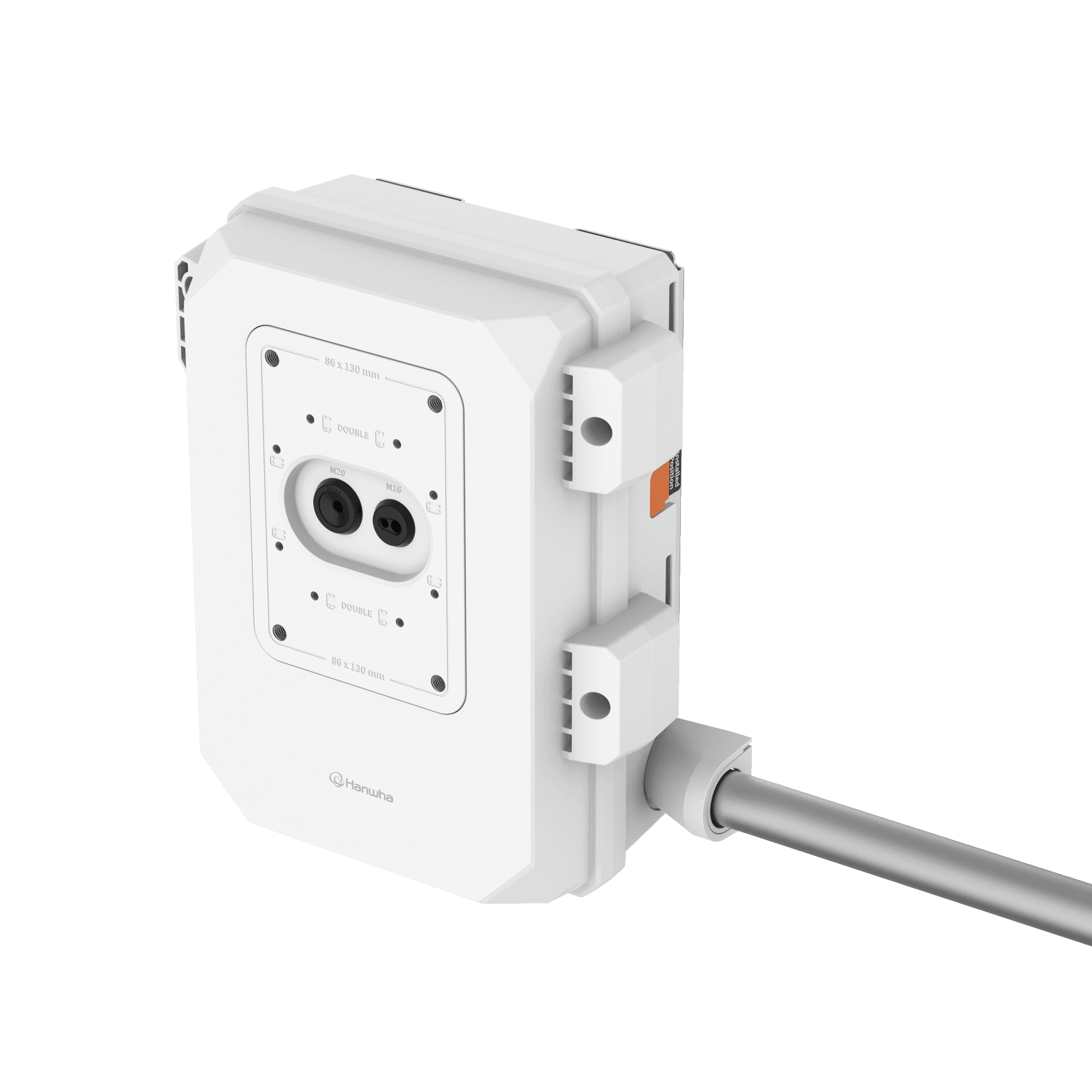

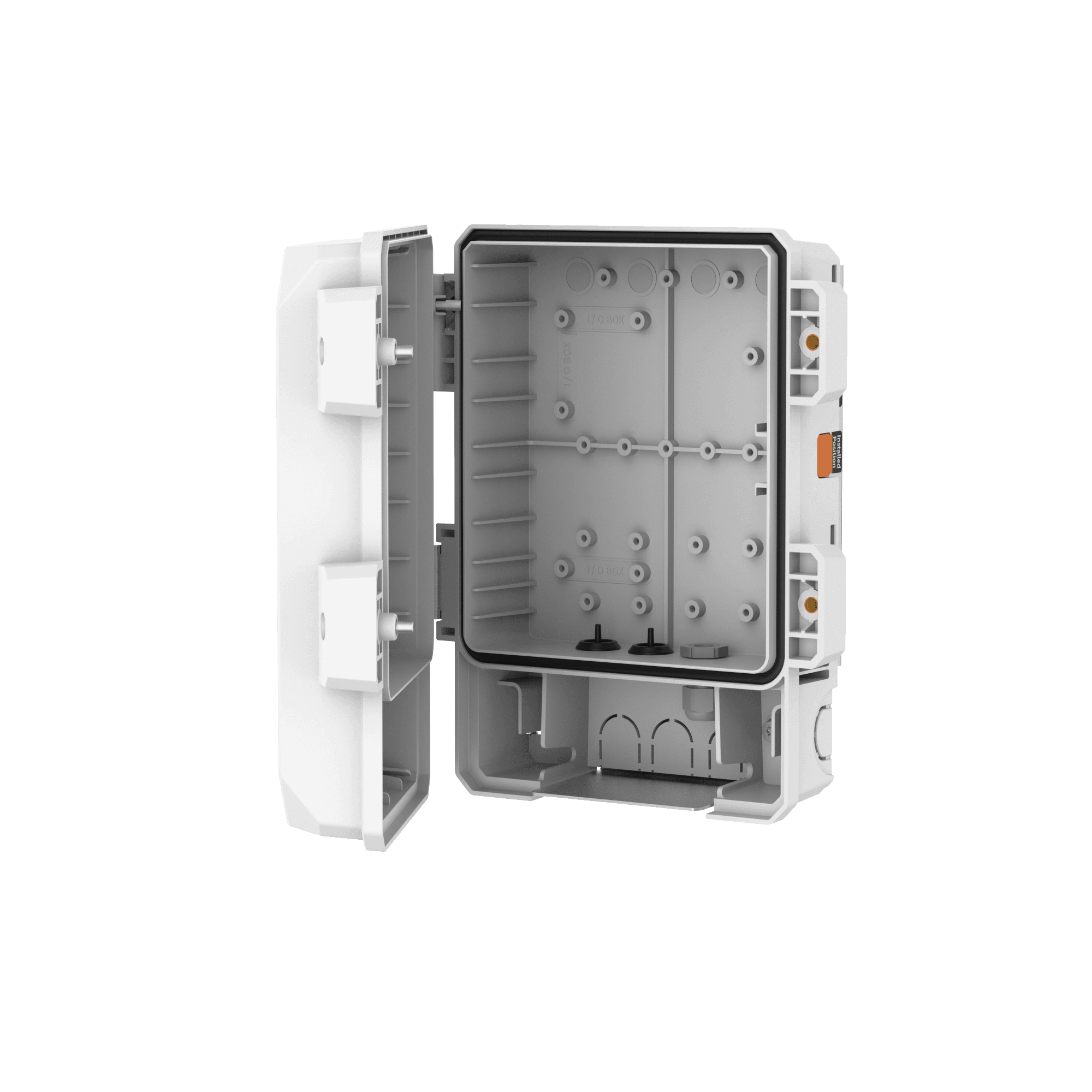

SBP-050NBW
CabinetKey Features
- Materials : PC(Polycarbonate), Aluminum
- Dimensions : ø240x290x123.1mm (ø9.45x11.42x4.85")
- Weight : 2.5kg (5.51lb)
- Max. load : 5kg (11.02lb)
※ Conduit hole : 12.7mm(1/2")(M20, 1pcs) / 19.1mm(3/4")(M25, 4pcs)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-050NBW_250822_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-050NBW_250708_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBP-050NBW_250708_Common.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_SBP-050NBW_250520_EN_NEMA4X.pdf | 2026-04-19 | |
| Certification | Certification_SBP-050NBW_250521_EN_IK10.pdf | 2026-04-19 | |
| Certification | Certification_SBP-050NBW_250521_EN_IP66.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-050NBW_20260202_EN_113345.pdf | 2026-04-19 |
Specifications
Environmental
| Operating Temperature / Humidity | -40°C~+65°C (-40°F~+149°F) / 0~100% RH (condensing) Humidity control /w Air vent | |
| Storage Temperature / Humidity | -50°C~+65°C (-58°F~+149°F) / 0~95% RH | |
| Certification | IP66, IK10, NEMA 4X |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 240x290x123.1mm(9.45x11.42x4.85) / 2.5kg | |
| Mount Screw size | TR20, T30 | |
| Max. load | 5KG | |
| Conduit hole | 12.7mm(1/2")(M20, 1pcs) / 19.1mm(3/4")(M25, 4pcs) | |
| Supported products | SBP-050NBW: QNV-C6083R , QNV-C8083R, QNV-C9083R, QNE-C8013RL, QNE-C9013RL, XNO-C6083R, XNO-C7083R, XNO-C8083R, XNO-C9083R, XNO-6083R, XNO-8083R, XNO-9083R, XNF-9010RV, XNF-9013RV, XND-8082RV, XND-9082RV, XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV, PND-A6081RV, PND-A9081RV, ANE-L8082R, XNV-6083RZ, XNV-8083RZ, XNV-9083RZ, XNV-6083Z, XNV-8083Z, XNV-6123R, XNV-8082R, XNV-9082R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R, PNV-A6081R, PNV-A9081R, PNO-A9311R, TNO-C3010TRA, TNO-C3012TRA, TNO-C3020TRA, TNO-C3022TRA, TNO-C3030TRA, TNO-C3032TRA, SBV-140BW, SBO-140BW, SBO-090GP, SBD-110GP1, SBP-060BA, SBP-061BA (SBP-156WMW): XNP-C6403, XNP-C6403R, XNP-C8253, XNP-8253R, XNP-C9253, XNP-C9253R, QNP-6250H, QNP-6320H, QNP-6250R, QNP-6320R (SBP-250WMW): QNV-C6083R, QNV-C8083R, QNV-C9083R, QNE-C8013RL, QNE-C9013RL, XNO-C6083R, XNO-C7083R, XNO-C8083R, XNO-C9083R, XNO-6083R, XNO-8083R, XNO-9083R, XNF-9010RV, XNF-9013RV, XND-8082RV, XND-9082RV, XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV, PND-A6081RV, PND-A9081RV, ANE-L8082R, XNV-6083RZ, XNV-8083RZ, XNV-9083RZ, XNV-6083Z, XNV-8083Z, XNV-6123R, XNV-8082R, XNV-9082R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R, PNV-A6081R, PNV-A9081R, PNO-A9311R, TNO-C3010TRA, TNO-C3012TRA, TNO-C3020TRA, TNO-C3022TRA, TNO-C3030TRA, TNO-C3032TRA, SBV-140BW, SBO-140BW, SBO-090GP, SBD-110GP1 |
Environmental
| Operating Temperature / Humidity | -40°C~+65°C (-40°F~+149°F) / 0~100% RH (condensing) Humidity control /w Air vent | |
| Storage Temperature / Humidity | -50°C~+65°C (-58°F~+149°F) / 0~95% RH | |
| Certification | IP66, IK10, NEMA 4X |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 240x290x123.1mm(9.45x11.42x4.85) / 2.5kg | |
| Mount Screw size | TR20, T30 | |
| Max. load | 5KG | |
| Conduit hole | 12.7mm(1/2")(M20, 1pcs) / 19.1mm(3/4")(M25, 4pcs) | |
| Supported products | SBP-050NBW: QNV-C6083R , QNV-C8083R, QNV-C9083R, QNE-C8013RL, QNE-C9013RL, XNO-C6083R, XNO-C7083R, XNO-C8083R, XNO-C9083R, XNO-6083R, XNO-8083R, XNO-9083R, XNF-9010RV, XNF-9013RV, XND-8082RV, XND-9082RV, XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV, PND-A6081RV, PND-A9081RV, ANE-L8082R, XNV-6083RZ, XNV-8083RZ, XNV-9083RZ, XNV-6083Z, XNV-8083Z, XNV-6123R, XNV-8082R, XNV-9082R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R, PNV-A6081R, PNV-A9081R, PNO-A9311R, TNO-C3010TRA, TNO-C3012TRA, TNO-C3020TRA, TNO-C3022TRA, TNO-C3030TRA, TNO-C3032TRA, SBV-140BW, SBO-140BW, SBO-090GP, SBD-110GP1, SBP-060BA, SBP-061BA (SBP-156WMW): XNP-C6403, XNP-C6403R, XNP-C8253, XNP-8253R, XNP-C9253, XNP-C9253R, QNP-6250H, QNP-6320H, QNP-6250R, QNP-6320R (SBP-250WMW): QNV-C6083R, QNV-C8083R, QNV-C9083R, QNE-C8013RL, QNE-C9013RL, XNO-C6083R, XNO-C7083R, XNO-C8083R, XNO-C9083R, XNO-6083R, XNO-8083R, XNO-9083R, XNF-9010RV, XNF-9013RV, XND-8082RV, XND-9082RV, XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV, PND-A6081RV, PND-A9081RV, ANE-L8082R, XNV-6083RZ, XNV-8083RZ, XNV-9083RZ, XNV-6083Z, XNV-8083Z, XNV-6123R, XNV-8082R, XNV-9082R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R, PNV-A6081R, PNV-A9081R, PNO-A9311R, TNO-C3010TRA, TNO-C3012TRA, TNO-C3020TRA, TNO-C3022TRA, TNO-C3030TRA, TNO-C3032TRA, SBV-140BW, SBO-140BW, SBO-090GP, SBD-110GP1 |
