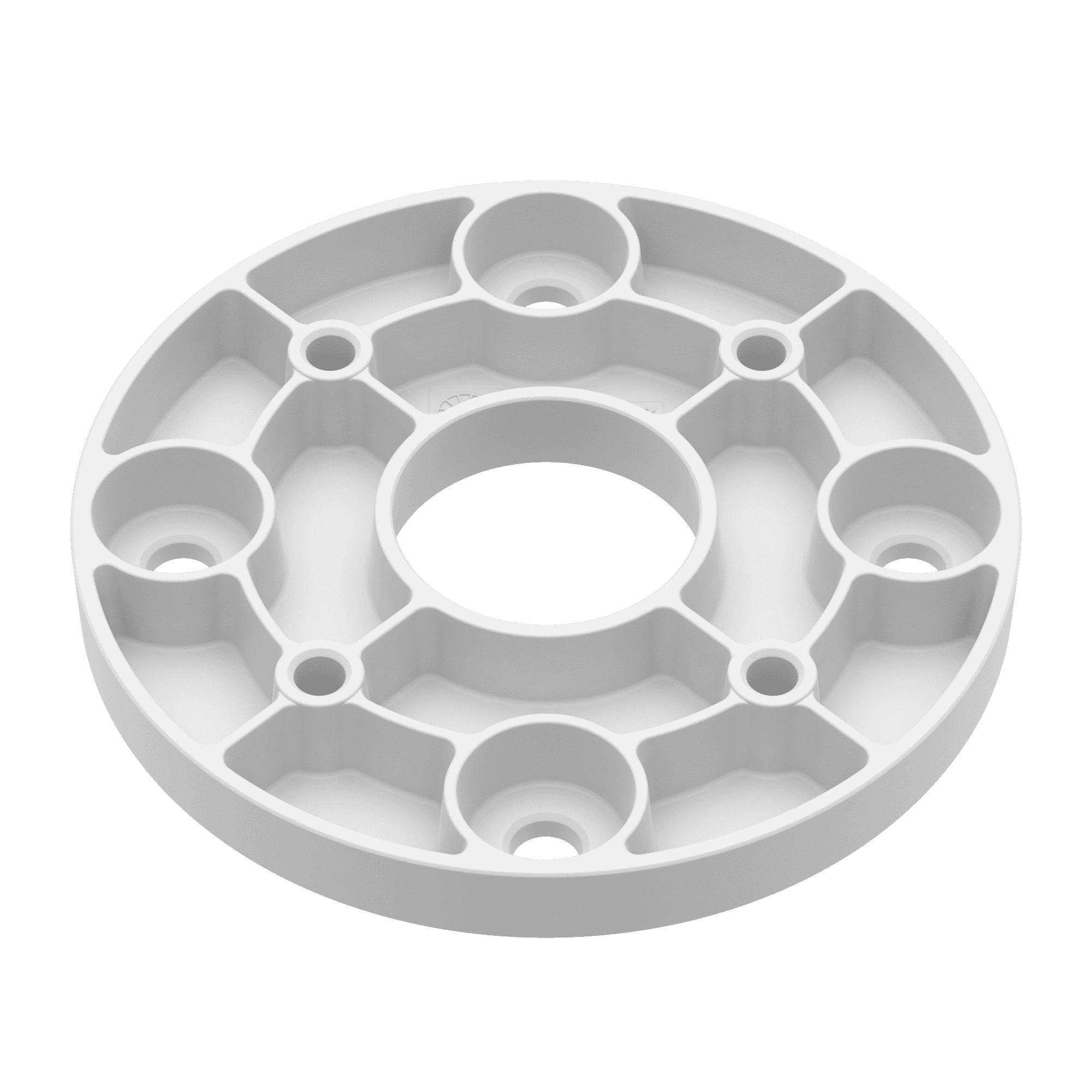

SBP-004PBW
Mounting Converter for 4.75" PCD Holes (White Ruggedized PTZ)Key Features
- Color : White
- Product dimensions / weight : 155x155x18mm(6.10x6.10x0.71”), 340g(0.75lb)
- Mount screw size : TR30
- Universal 4"(101.6mm) PCD Mounting converter for 4.75"(120.65mm) PCD Holes
- Compatible model : TNP-A6550RW, TNP-A7430RW, TNP-A9430RW
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBP-004PBW%2CSBP-004PBB_250626_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBP-004PBW%2CSBP-004PBB_250903_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBP-004PBW%2CSBP-004PBB_250903_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBP-004PBW_20260127_EN_135720.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 155mmx155mmx18mm(WxDxH)(6.10”x6.10”x0.71”), 340g(0.75lb) | |
| Mount Screw size | TR30 | |
| Supported products | TNP-A6550RW, TNP-A7430RW, TNP-A9430RW |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 155mmx155mmx18mm(WxDxH)(6.10”x6.10”x0.71”), 340g(0.75lb) | |
| Mount Screw size | TR30 | |
| Supported products | TNP-A6550RW, TNP-A7430RW, TNP-A9430RW |
Related Products
TNP-A6550RW
TNP-A7430RW
TNP-A9430RW
Accessories
SBP-004WMW
