SBO-BPM0

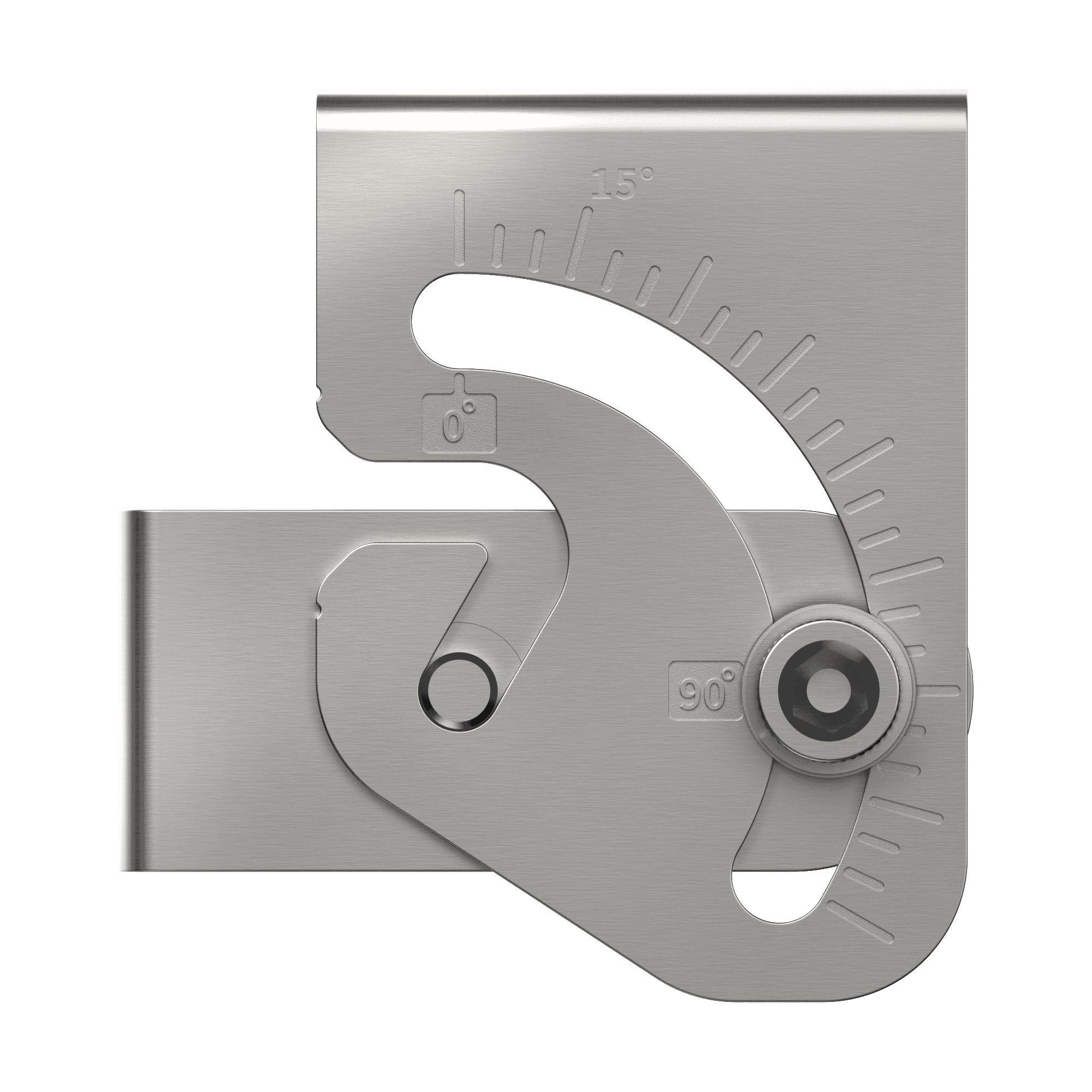

BCR Camera BracketKey Features
- Material: Stainless(SUS316L)
- Mount Screw size(Hexagonal screw): 6mm
- Max. load: 5kg
- Adjustment Angle: 0 ~ 120°

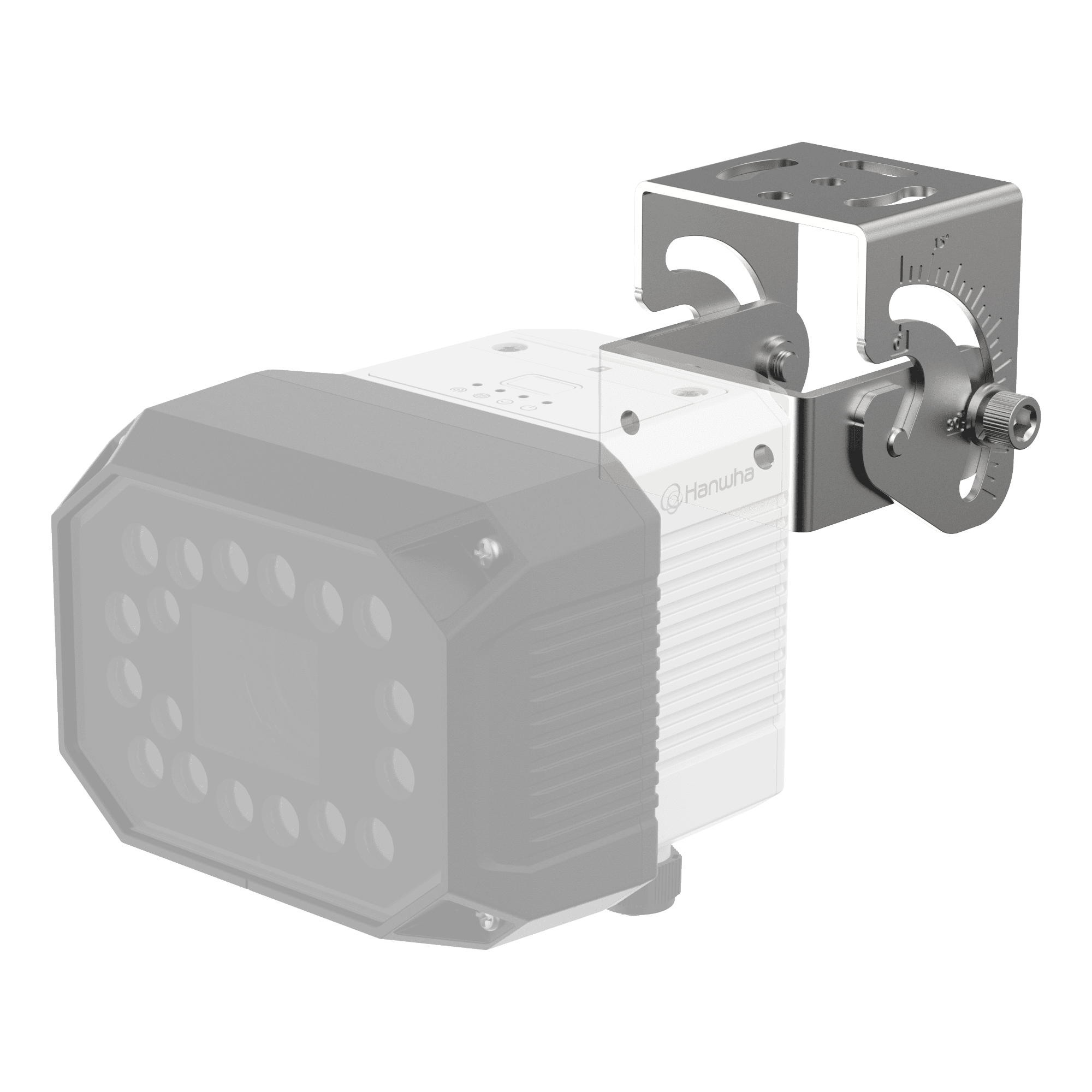

- Supported products: TNS-7000M
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBO-BPM0_250728_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBO-BPM0_250728_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBO-BPM0_20250906_EN_074247.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | Silver | |
| Material | Stainless(SUS316L) | |
| Product dimensions / weight | W55mm * H63mm * D59mm / 190g | |
| Adjustment Angle | 0 ~ 120° | |
| Mount Screw size | Hexagonal screw, 6mm | |
| Max. load | 5kg | |
| Supported products | TNS-7000M |
Mechanical
| Color | Silver | |
| Material | Stainless(SUS316L) | |
| Product dimensions / weight | W55mm * H63mm * D59mm / 190g | |
| Adjustment Angle | 0 ~ 120° | |
| Mount Screw size | Hexagonal screw, 6mm | |
| Max. load | 5kg | |
| Supported products | TNS-7000M |
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
