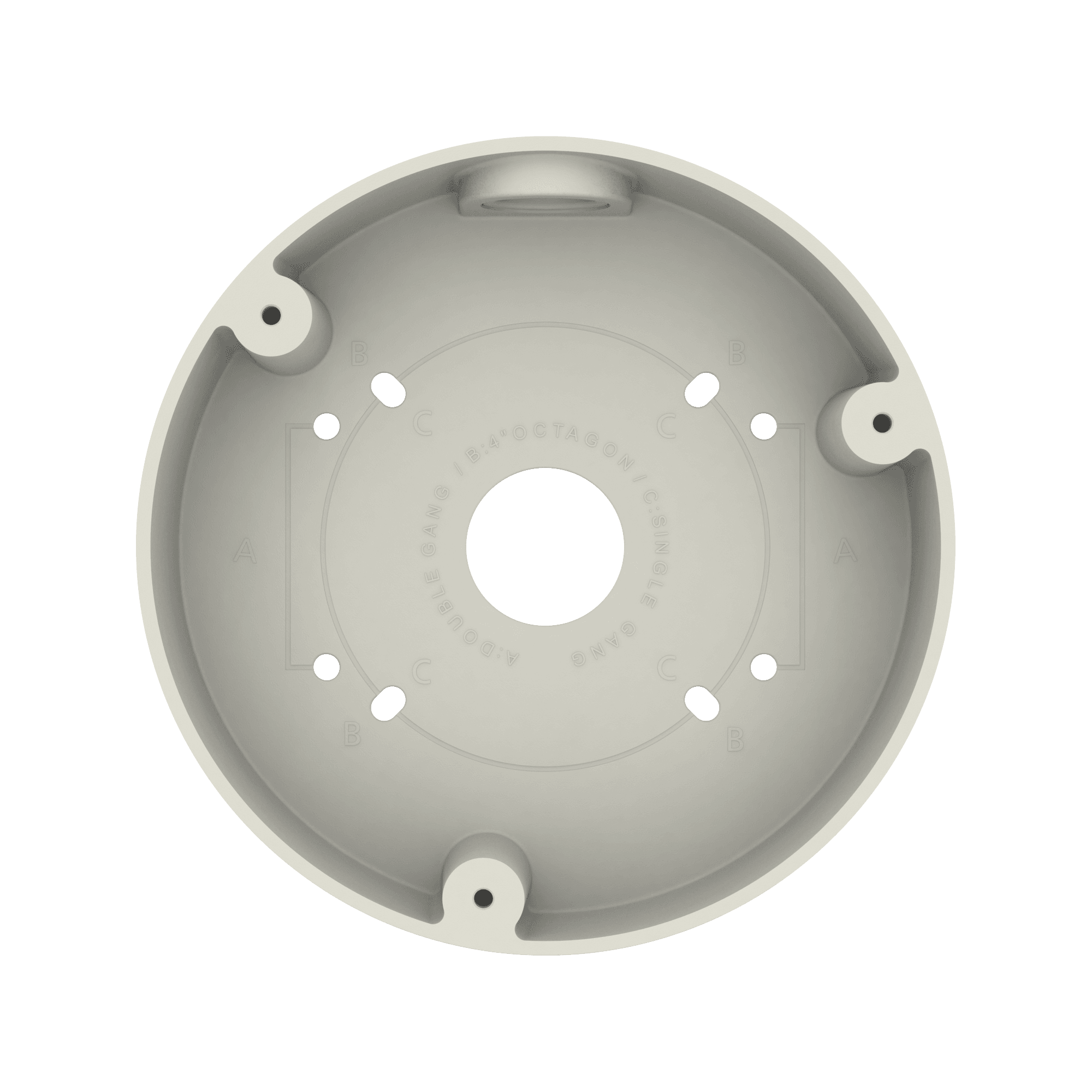

SBF-100B1
Back BoxKey Features
• Aluminum
• Can be used with PNF-9010R/9010RV/9010RVM, SNF-8010/8010VM
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBF-100B1_230420_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBF-100B1_160423.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBF-100B1_20250906_EN_073552.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_SBF-100B1_180912_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_SBF-100B1_180912_Common_mm.rfa | 2026-04-19 |
Specifications
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product dimensions / weight | ø149.2x40mm / 400g | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XNF-8010RV ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | Ivory | |
| Material | Aluminum | |
| Product dimensions / weight | ø149.2x40mm / 400g | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | XNF-8010RV ※ For further compatible models, please visit our website or use Toolbox |
