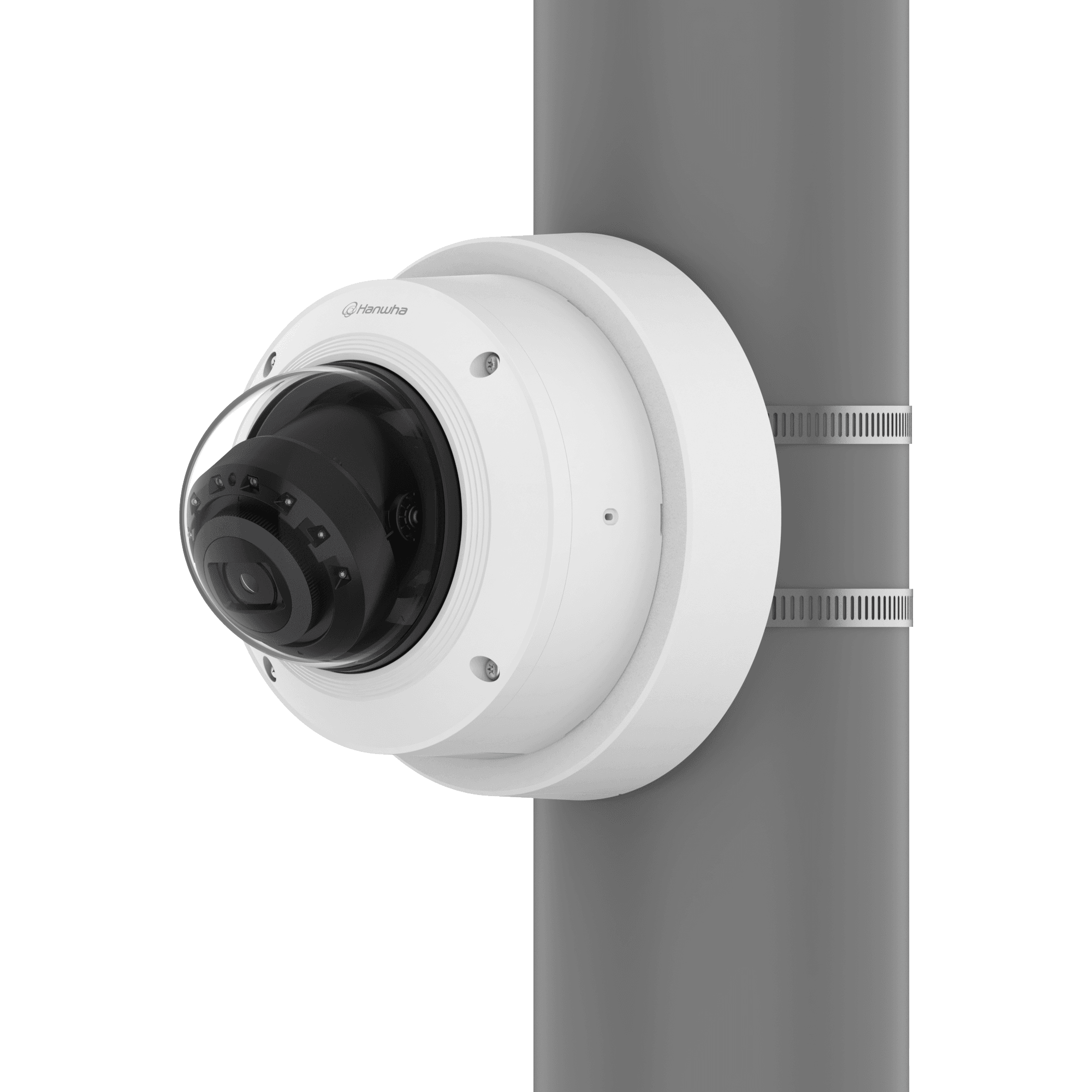

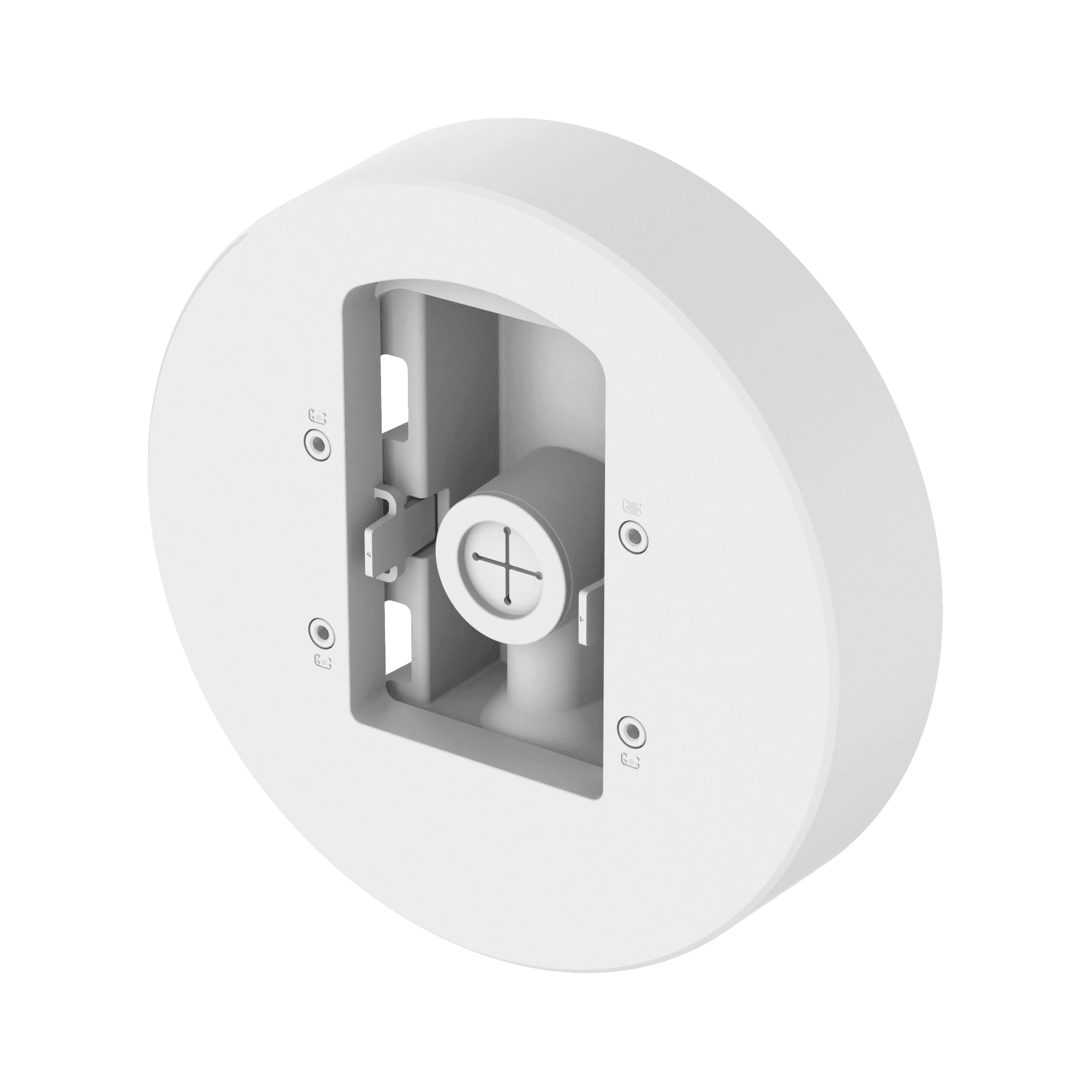

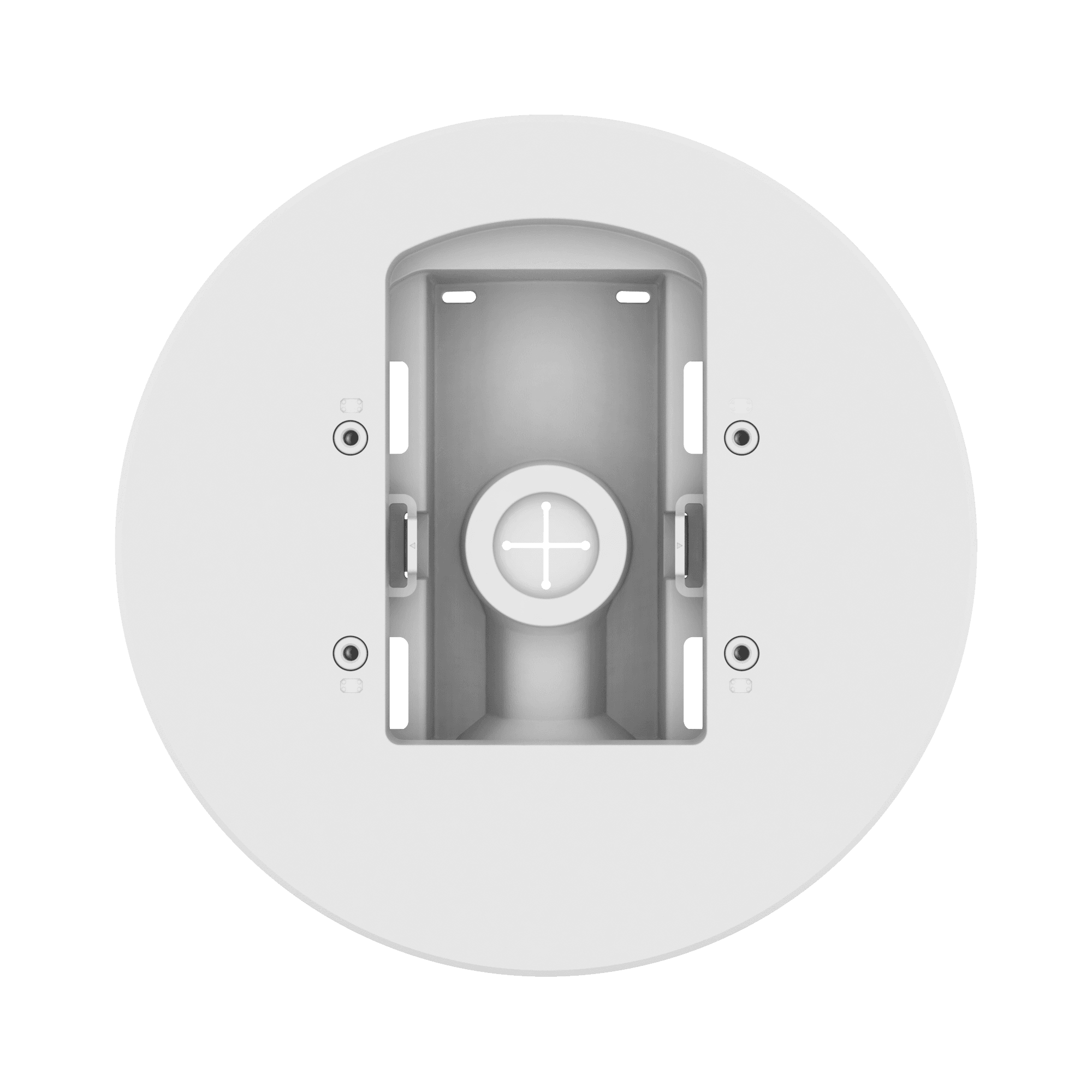

SBD-180PMW
Pole MountKey Features
- Material: Core- Aluminum, Cap- Plastic
- Dimensions : ø187.1x50.5mm\
- Weight : 370g (0.82lb)
- Color : White
- Mount Screw Size: TR20- Camera, TR30- Steel Strap
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBD-140PMW,SBD-180PMW_231227_EN.pdf | 2026-07-10 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBD-180PMW_221108_Common.dxf | 2026-07-10 | |
| CAD | CAD_SBD-180PMW_221108_Common.pdf | 2026-07-10 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBD-180PMW_20260227_EN_092847.pdf | 2026-07-10 |
Specifications
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø187.1x50.5mm / 370g | |
| Mount Screw size | TR20, TR30 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | PNV-A6081R, PNV-A9081R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | PC(Polycarbonate), Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø187.1x50.5mm / 370g | |
| Mount Screw size | TR20, TR30 | |
| Max. load | 5kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | PNV-A6081R, PNV-A9081R, XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R ※ For further compatible models, please visit our website or use Toolbox |
