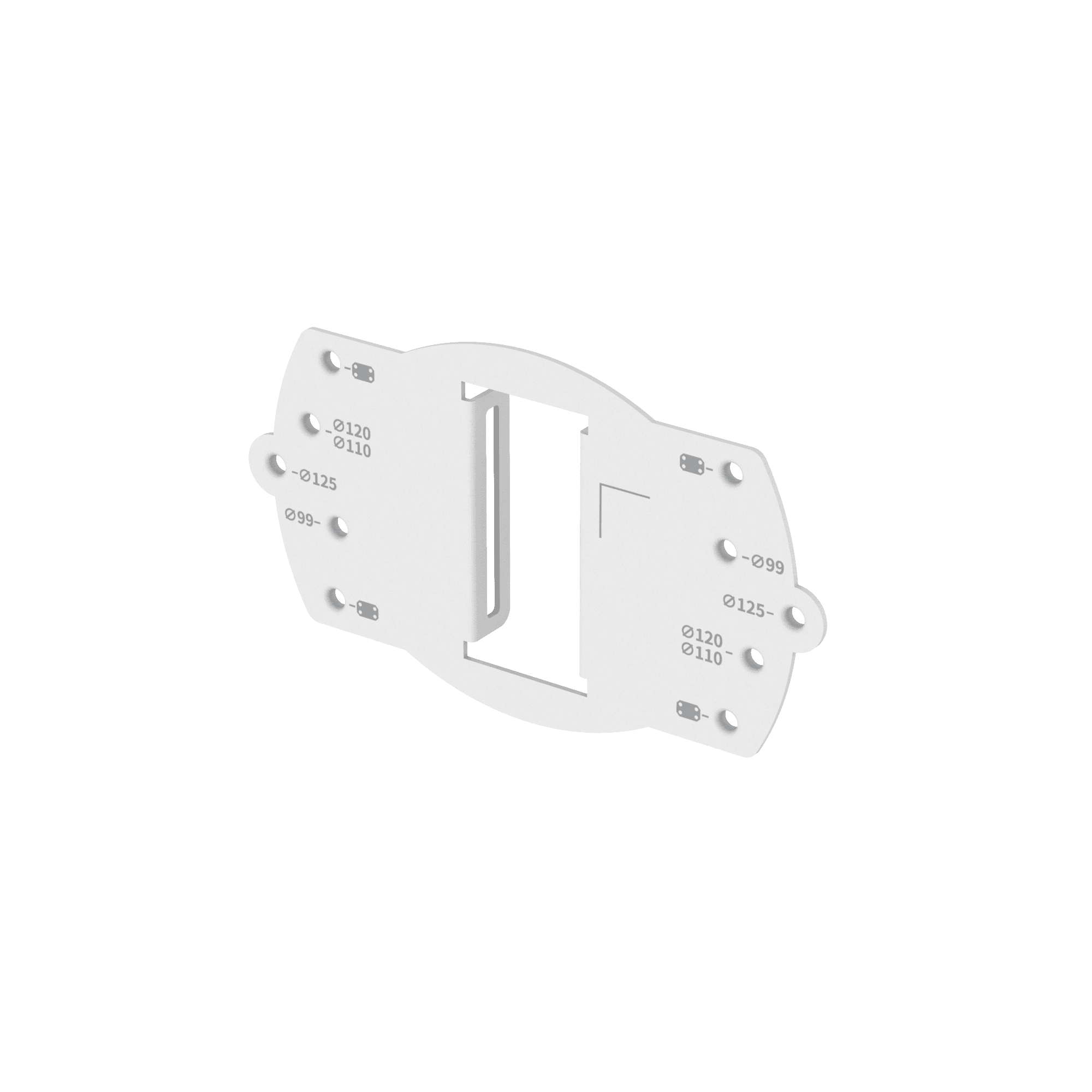

SBD-140PMB
Pole MountKey Features
- Product dimensions / Weight: 121x70mm (4.76x2.76") / 56g (0.12lb)
- Material: SUS304
- RAL code: RAL9003
- Mount Screw size: TR20
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_SBD-140PMB,SBD-140KMB_230516_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_SBD-140PMB_240712_Common.dxf | 2026-04-19 | |
| CAD | CAD_SBD-140PMB_240712_Common.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_SBD-140PMB_20260227_EN_092030.pdf | 2026-04-19 |
Specifications
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 121x70x11.2mm / 56g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Supported products | QNV-C8011R, QNV-C8012, QNV-C9011R ※ For further compatible models, please visit our website or use Toolbox |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 121x70x11.2mm / 56g | |
| Mount Screw size | TR20 | |
| Max. load | 5kg | |
| Supported products | QNV-C8011R, QNV-C8012, QNV-C9011R ※ For further compatible models, please visit our website or use Toolbox |
Accessories
QNV-C8011R
QNV-C8012
QNV-C9011R
QNV-C8083R
QNV-C9083R
QND-6011
QND-6021
QND-8011
QND-8021
QNF-8010
QNF-9010
QND-6012R
QND-6012R1
QND-6022R
QND-6022R1
QND-6072R
QND-6072R1
QND-6082R
QND-6082R1
QND-7012R
QND-7022R
QND-7082R
QNE-8011R
Discontinued
QNE-8021R
LND-6012R
LND-6022R
LND-6072R
