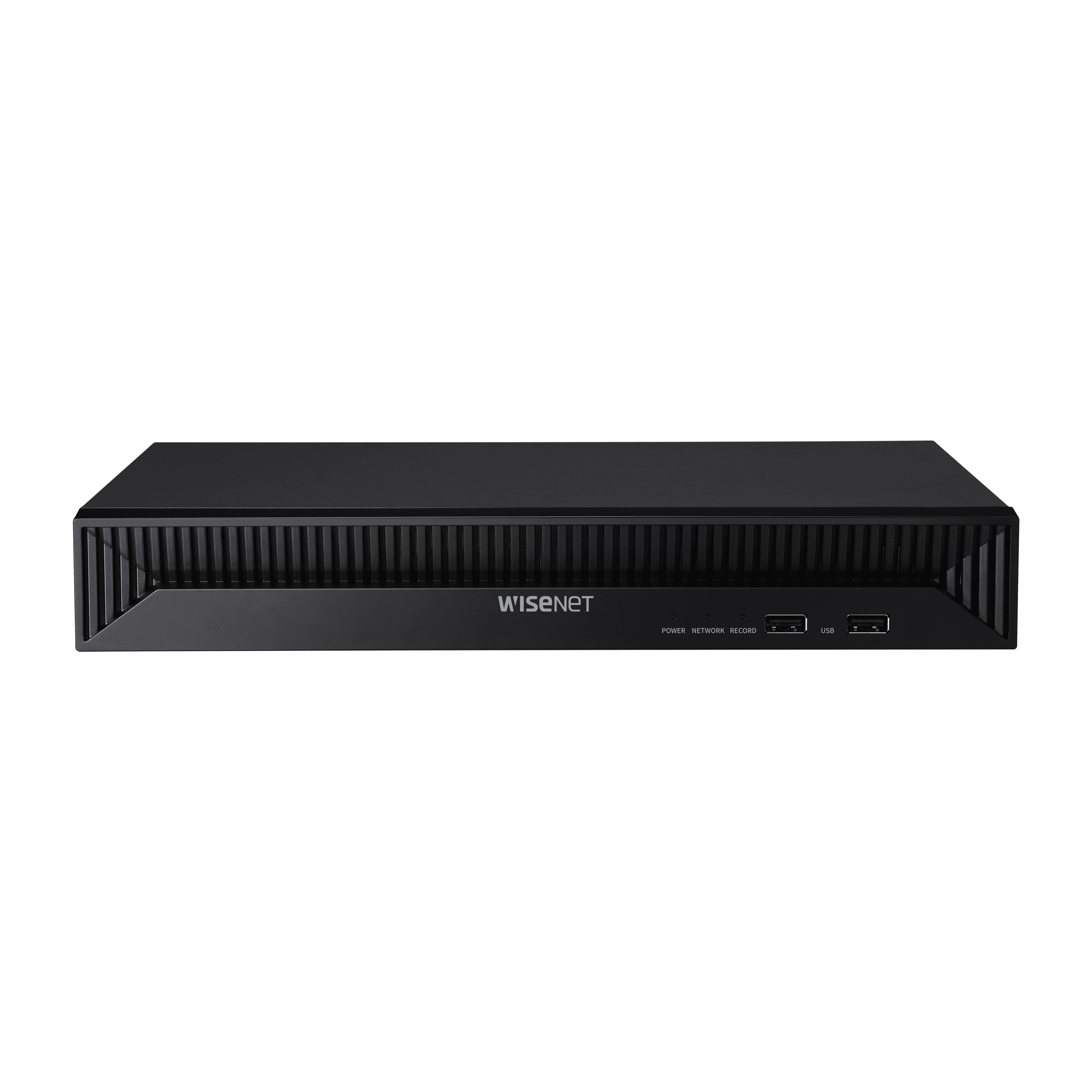

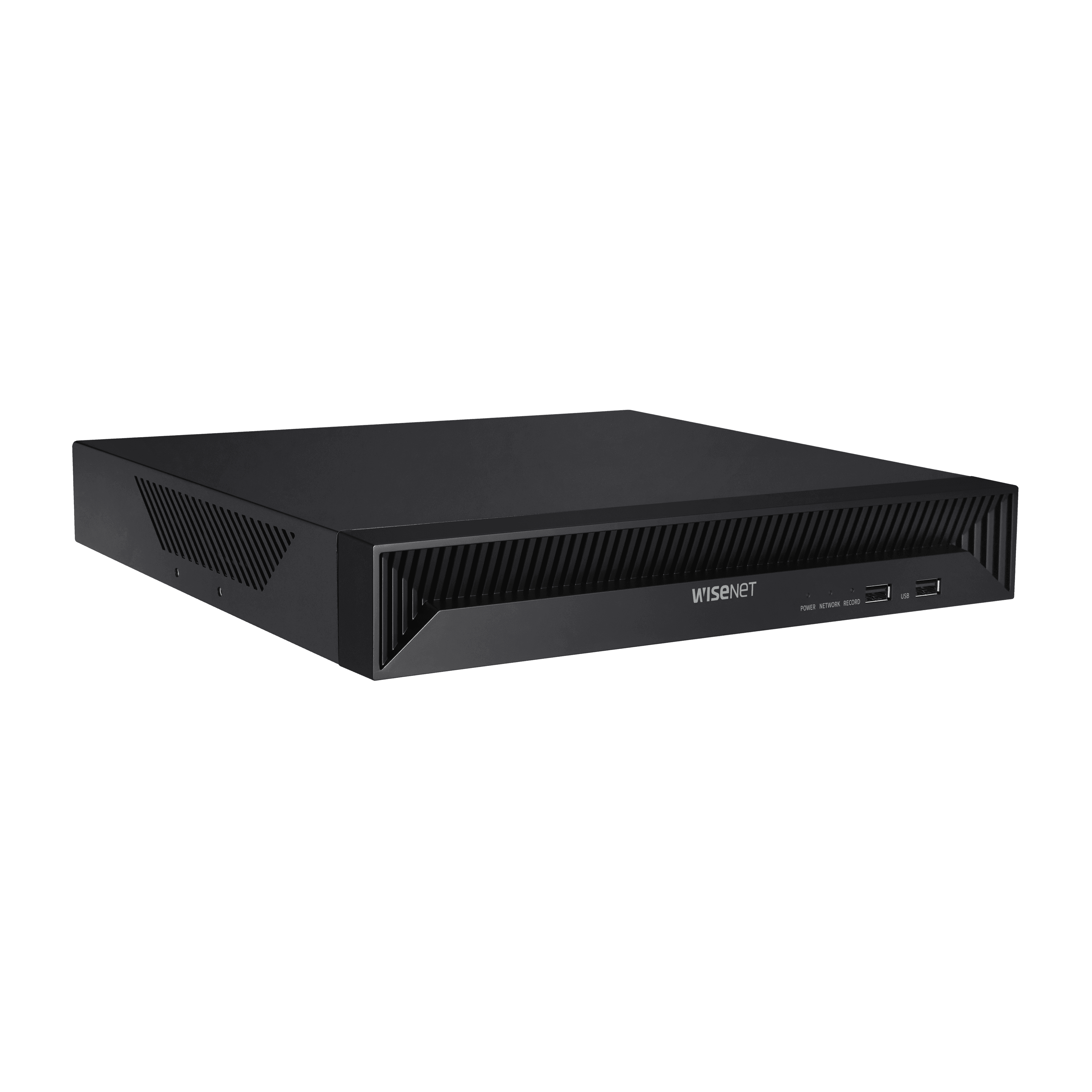

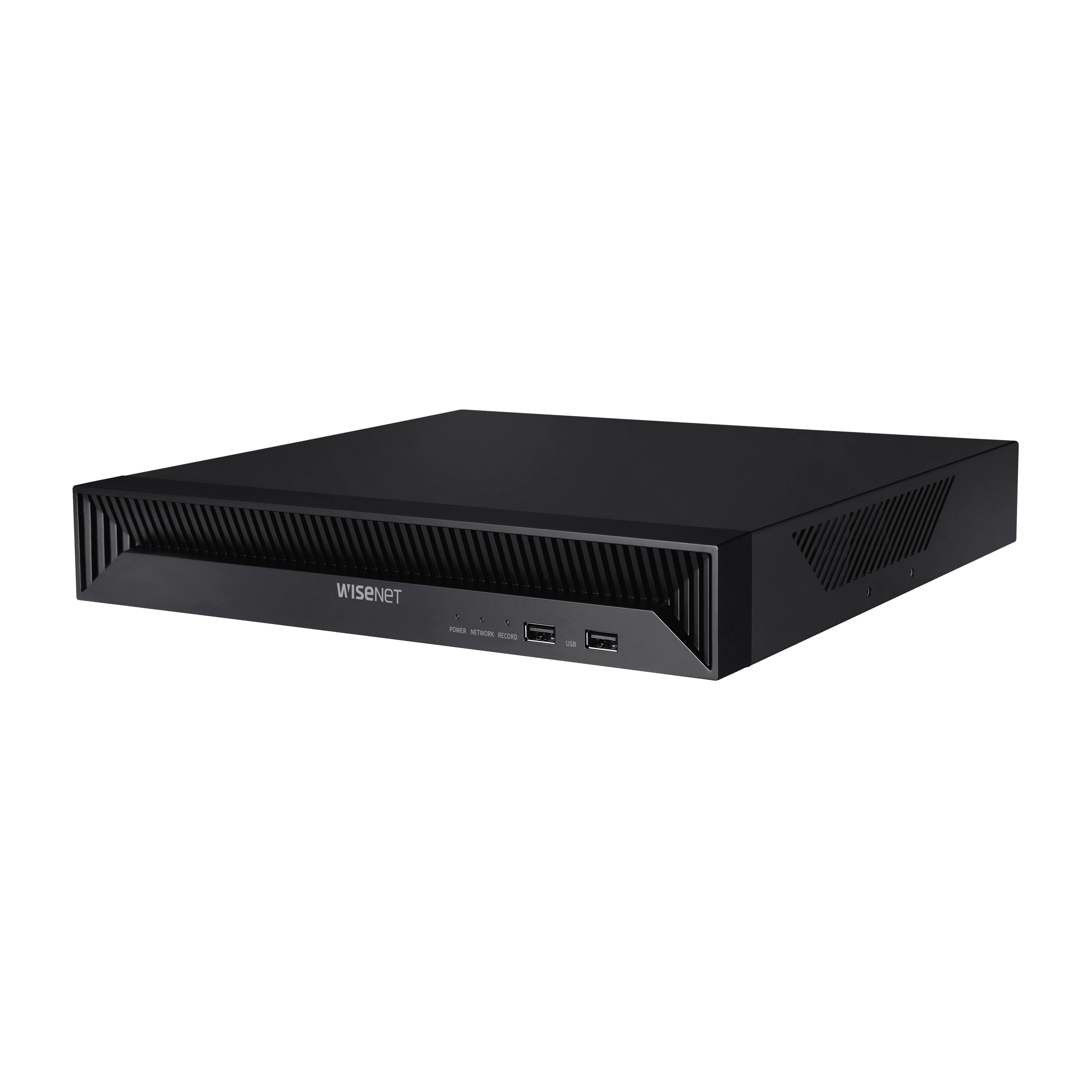

QRN-830S
8CH NVRKey Features
• Up to 8CH, 8MP camera supported
• H.265, H.264, MJPEG codec
• 80Mbps network camera recording
• Plug & play by 8PoE(LAN, 10/100), 1PoE(WAN, 1Gbps)
• SATA 1ea(up to 6TB)
• ARB supported
• P2P service (QR code connect) supported
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250331_EN.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_DE.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_ES.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_FR.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_IT.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_NL.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_PL.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_TR.pdf | 2026-06-29 | |
| Manuals | Manuals_QRN-1630S,QRN-830S,QRN-430S,XRN-815S,XRN-420S_250408_ZH.pdf | 2026-06-29 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QRN-830S_220310_Common.dwg | 2026-06-29 | |
| CAD | CAD_QRN-830S_220310_Common.pdf | 2026-06-29 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QRN-830S_220321_KO_SDoC_KC.pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_220412_KO_KC(EMC).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_220412_KO_Report_KC(EMC).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_220722_EN_UL.pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230310_EN_DoC_CE.pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230310_EN_EMC_CE(UKCA).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230310_EN_RCM.pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230310_EN_VCCI.pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230310_KO_KC(EMC).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230315_KO_Report_KC(EMC).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230315_KO_Report_KC(TEL).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230415_KO_KC(Safety).pdf | 2026-06-29 | |
| Certification | Certification_QRN-830S_230310_EN_FCC-IC.pdf | 2026-06-29 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | QRN-1630S_5.35.42_260204162753.zip | 2026-06-29 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QRN-830S_220430_EN.docx | 2026-06-29 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QRN-830S_20250906_EN_060921.pdf | 2026-06-29 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_CS.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_DE.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_EN.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_ES.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_FR.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_IT.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_NL.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_PL.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_PT.pdf | 2026-06-29 | |
| Quick Guide | Quick-Guide_QRN-1630SQRN-830SQRN-430SXRN-815SXRN-420S_230707_TR.pdf | 2026-06-29 |
Product Specifications
| Category | File Name | Last Update | |
|---|---|---|---|
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_DE.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_EN.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_ES.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_FR.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_IT.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_NL.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_PL.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_PT.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_TR.pdf | 2026-06-29 | |
| Product Specifications | Product-Specifications_QRN-1630SQRN-830SXRN-815S_230707_ZH.pdf | 2026-06-29 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_QRN-1630SQRN-830SQRN-430S_250224_EN.txt | 2026-06-29 |
Specifications
Display
| Network camera | Inputs | Max. 8CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz) |
| Multi Screen Display | [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max, 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea(Max 6TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 80Mbps | |
| Audio | Input/Output | 8 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 11 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |
Interface
| Front | Indicator | Power, Record, Network |
| Storage | OK | |
| Reset | Support | |
| HDMI | 1EA | |
| Ethernet | PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps) | |
| USB | 2EA(Front 2 x USB2.0) | |
| Power inlet | DC Adaptor |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 54VDC/1.55A | |
| Power Consumption | Max. 84W(287 BTU with 1HDD, PoE ON) | |
| PoE Budget | 65W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 300.0 x 47.6 x 238.9 mm (11.81 x 1.87 x 9.41 inch) | |
| Weight | 1.32Kg(2.91lb) |
Display
| Network camera | Inputs | Max. 8CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz) |
| Multi Screen Display | [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max, 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea(Max 6TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display |
Network
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 80Mbps | |
| Audio | Input/Output | 8 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 11 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Function
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) |
Interface
| Front | Indicator | Power, Record, Network |
| Storage | OK | |
| Reset | Support | |
| HDMI | 1EA | |
| Ethernet | PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps) | |
| USB | 2EA(Front 2 x USB2.0) | |
| Power inlet | DC Adaptor |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 54VDC/1.55A | |
| Power Consumption | Max. 84W(287 BTU with 1HDD, PoE ON) | |
| PoE Budget | 65W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 300.0 x 47.6 x 238.9 mm (11.81 x 1.87 x 9.41 inch) | |
| Weight | 1.32Kg(2.91lb) |
