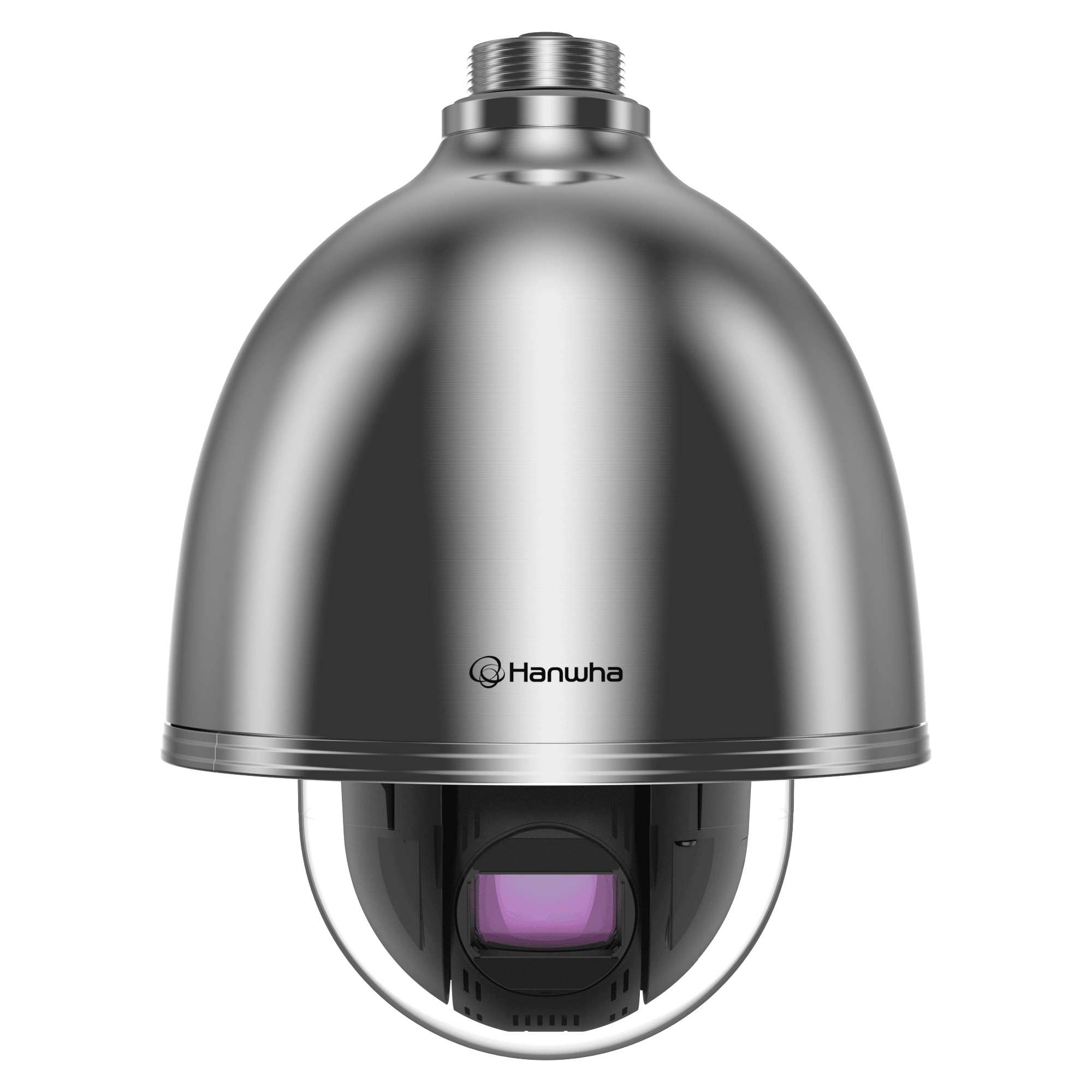

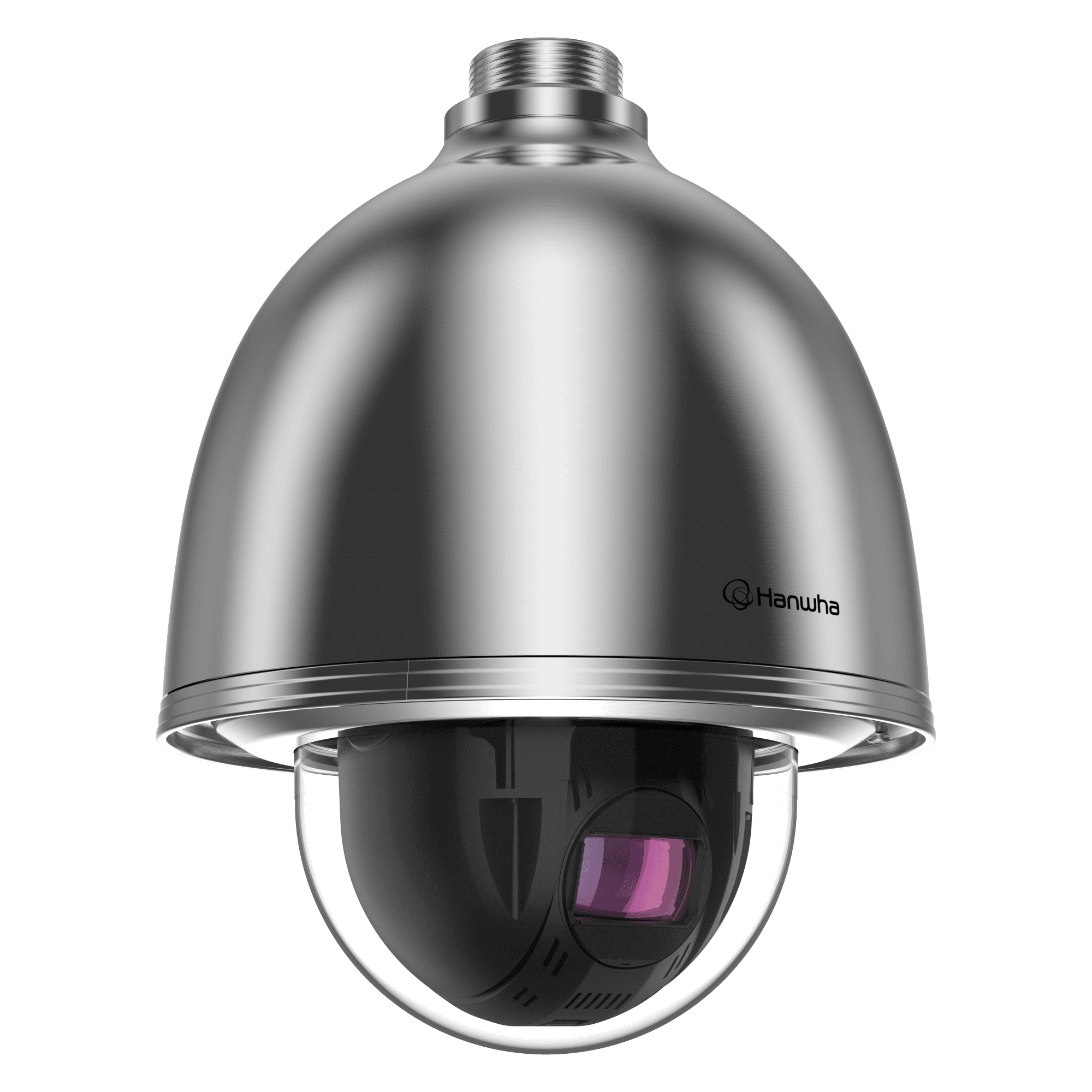

QNP-6320HS
2MP H.265 Stainless 32x PTZ CameraKey Features
• Maximum 2MP (1920 x 1080) resolution
• 4.44 ~ 142.6 (32x) optical zoom
• H.265, H.264, MJPEG codec support, Multiple streaming
• WiseStreamII, Day & Night (ICR), WDR(120dB)
• Directional detection, Tampering, Motion detection
• Audio detection, Digital auto tracking
• Micro SD/SDHC/SDXC 1slot 256GB
• IP66/IP67, IK10, NEMA4X, PoE, Material: SUS316L
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QNP-6320HS_240603_DE.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_EN.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_ES.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_FR.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_IT.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_PL.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_PT.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_TR.pdf | 2026-08-10 | |
| Manuals | Manuals_QNP-6320HS_240603_ZH.pdf | 2026-08-10 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QNP-6320HS_211117_Common.dxf | 2026-08-10 | |
| CAD | CAD_QNP-6320HS_211117_Common.pdf | 2026-08-10 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QNP-6320HS_211108_EN_IP66.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_211123_EN_IP67.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_220105_EN_UL.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_250331_EN_DoC_CE.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_250331_EN_DoC_UKCA.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_250331_EN_EMC_CE,UKCA.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_250331_EN_FCC,IC.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_250331_EN_RCM.pdf | 2026-08-10 | |
| Certification | Certification_QNP-6320HS_250331_EN_VCCI.pdf | 2026-08-10 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | QNP-6320HS_2.21.06_20250626_R50.zip | 2026-08-10 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QNP-6320HS_20260806_EN_132652.pdf | 2026-08-10 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QNP-6320HS_240603_CS.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_DE.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_EN.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_ES.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_FR.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_IT.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_NL.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_PL.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_PT.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_TR.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNP-6320HS_240603_ZH.pdf | 2026-08-10 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 |
| BW(1/30sec, 30IRE) | 0.005 |
Lens
| Focal Length (mm) | 4.44~142.6 | |
| Zoom Ratio | Optical | 32x |
| Digital | 32x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 4.4 | |
| Angular Field of View | Horizontal | 64.66°~2.29° |
| Vertical | 38.08°~1.30° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Auto, Manual, Oneshot AF, Focus save | |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 360° Endless |
| Tilt | 90°~-15° | |
| Pan Speed | Preset | Max. 700°/sec |
| Manual | 0.024°/sec~200°/sec | |
| Tilt Speed | Preset | Max. 300°/sec |
| Manual | 0.024°/sec~200°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.2° |
Operational
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip&Mirror | |
| Alarm Interface | Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Support via optional I/O box | |
| Audio Out | Support via optional I/O box | |
| Auto Tracking | Support |
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205 | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -35°C~+55°C(-31°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -25°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4) | |
| Power Consumption | PoE | Max. 23W, typical 14W |
Mechanical
| Color | Silver | |
| Material | Stainless(STS316L) | |
| Product Dimensions | Ø227x299.2mm(8.94x11.78") | |
| Product Weight | 5,400g(11.93lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, IC Regulation ICES-003 Issue 7 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 60.7m(199.1ft) |
| Tele | 1921.3m(6303.4ft) | |
| Observe (63PPM/ 19PPF) | Wide | 24.3m(79.6ft) |
| Tele | 768.5m(2521.4ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 12.1m(39.8ft) |
| Tele | 384.3m(1260.7ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.1m(19.9ft) |
| Tele | 192.1m(630.3ft) |
