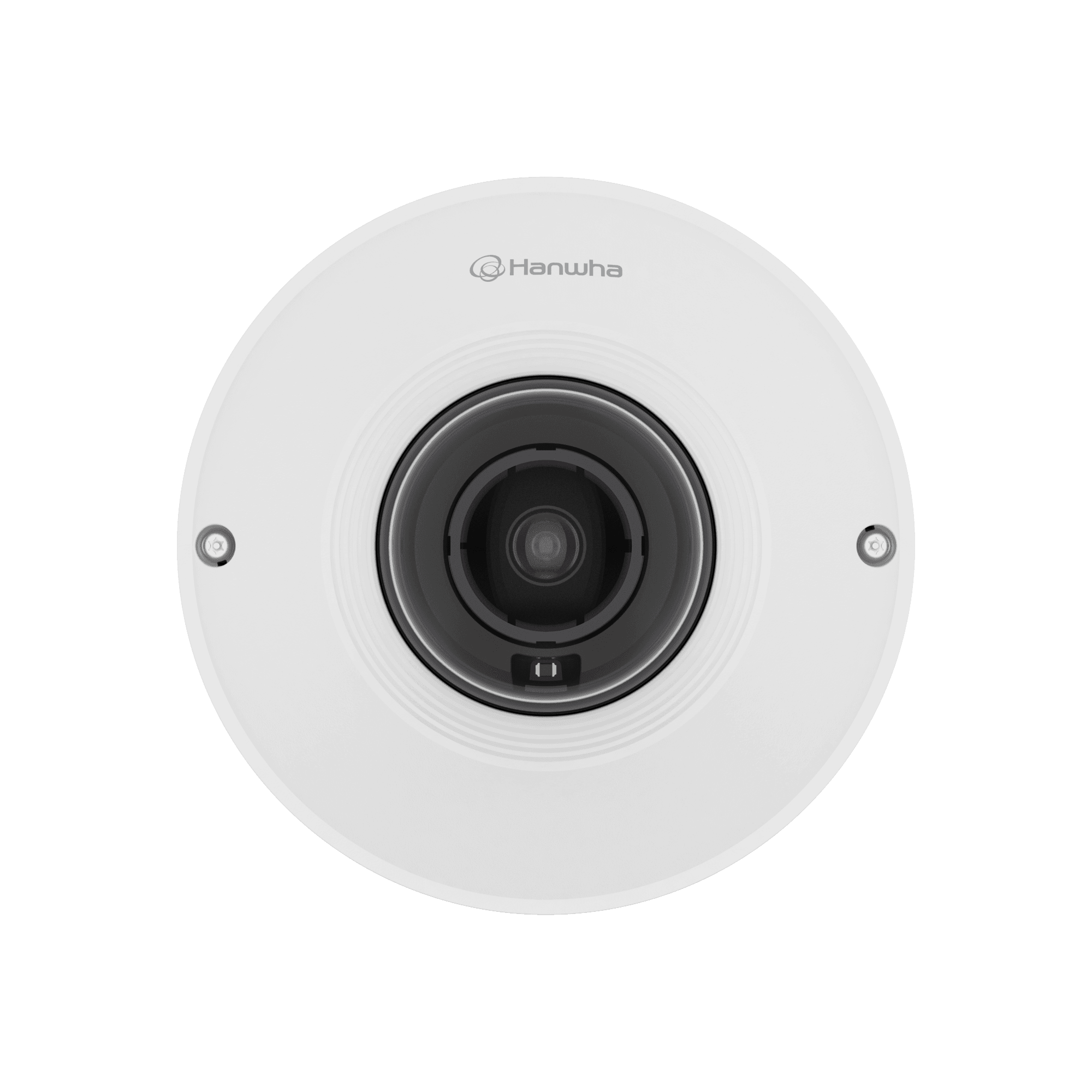

QNF-C9010V
12MP AI Fisheye CameraKey Features
- 12MP Image Resolution
- 1.76mm Focal Length
- AI Object Classification (Person, Behicle, Color)
- IP66, IK10 Rated
- Digital Rotation
- AI Based Analytics
- Color Attribute, BestShot
- H.265, H.264, MJPEG, WiseStreamIII
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QNF-C9010V_250318_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_ZH-TW.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-C9010V_250404_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QNF-C9010V_250519_Common.dxf | 2026-08-06 | |
| CAD | CAD_QNF-C9010V_250519_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QNF-C9010V_250218_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250218_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250218_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250218_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250218_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250218_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250320_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250320_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250320_EN_NEMA4X.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250407_EN_Report_UL.pdf | 2026-08-06 | |
| Certification | Certification_QNF-C9010V_250407_EN_UL.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_Q_AI_2_14_05_20260407_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_Q_AI_26_06_17_20260617.zip | 2026-08-06 | |
| Firmware | QNF-C9010V_2.23.10_20260624_R164.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QNF-C9010V_250421_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QNF-C9010V_20260806_EN_184839.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick Guide_QNF-C9010V_250404_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_ZH-TW.pdf | 2026-08-06 | |
| Quick Guide | Quick Guide_QNF-C9010V_250404_ZH.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-C9010V_250404_EN.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QNF-C9010V_250404_EN.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_TNV-C8014RM%2CTNV-C8034RM%2CQNF-C9010%2CQNF-C9010V%2CSMT-3231PV%2CSMT-2731PV_260215_EN.txt | 2026-08-06 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_QNF-C9010V_250331_Common.pdf | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/1.6" |
| Type | CMOS | |
| Resolution | 3584x2688, 3584x1792, 3584x896, 3008x3008, 2560x2560, 2048x1536, 1920x1920, 1920x960, 1920x480, 1792x1344, 1504x1504, 1280x1280, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 800x800, 768x576, 640x640, 640x320, 640x160, 512x384, 480x480 | |
| Max. Framerate | H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
| MJPEG | 5fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.02 |
| BW(1/30sec, 30IRE) | 0.001 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 1.76 | |
| Max Aperture Ratio (F number) | Wide | F1.8 |
| Angular Field of View | Horizontal | 185° |
| Vertical | 185° | |
| Diagonal | 185° | |
| Min. Object Distance | 0.5m(1.64ft) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Others | Digital Rotation |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication |
Analytics
| Classified Object Type | Person, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Tampering | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max 6.7W, typical 4.8W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø120x72.3mm(ø4.7x2.85") | |
| Product Weight | 583g(1.28lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 36.9m(121.03ft) |
| Observe (63PPM/ 19PPF) | Wide | 14.8m(48.42ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.4m(24.21ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.7m(12.10ft) |
