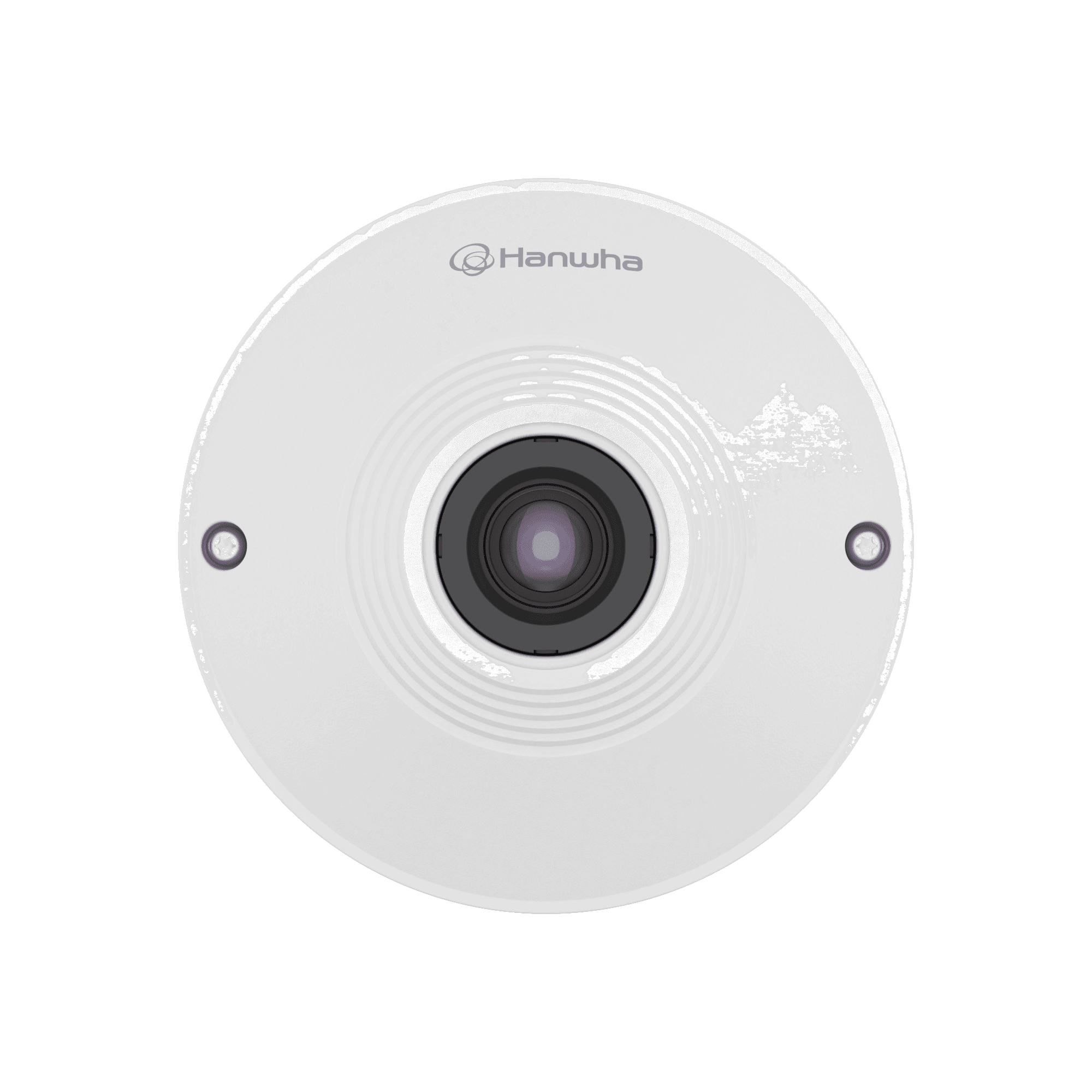

QNF-9010
12MP Fisheye CameraKey Features
• Max. 3008 x 3008 resolution
• H.265, H.264, MJPEC codec
• Original fisheye view, Single panorama, Double panorama, Quad view
• WDR 120dB, WiseStreamII
• Digital PTZ
• People counting, Heatmap
• Micro SD/SDHC/SDXC 1slot 256 GB, PoE
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QNF-8010,QNF-9010_240628_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_QNF-8010,QNF-9010_240628_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QNF-8010QNF-9010_191129.dxf | 2026-08-06 | |
| CAD | CAD_QNF-8010QNF-9010_191129.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QNF-9010_200131_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_200205_KO_SDoC_KC.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_230224_KO_Report_KC(Safety).pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_200115_KO_Report_KC%25EC%259C%25A0%25EC%2584%25A0.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_200115_KO_Report_KC%25EC%25A0%2584%25EC%259E%2590%25ED%258C%258C.pdf | 2026-08-06 | |
| Certification | Certification_QNF-9010_200117_KO_KCEMC%25EA%25B7%259C%25EA%25B2%25A9.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | QNF-9010_2.11.03_20230509_R444.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QNF-9010_200226_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QNF-9010_20260806_EN_131443.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_QNF-9010_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_QNF-9010_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QNF-8010QNF-9010_240628_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QNF-9010_20200206_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_QNF-9010_20200206_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_QNF-9010_20200206_FR.pdf | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.3" |
| Type | CMOS | |
| Resolution | 3200x800, 3008x3008, 2560x1920, 2560x1280, 2560x640, 1920x1440, 1920x960, 1920x480, 1280x960, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 640x640, 640x480, 640x320 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 5fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.39 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 1.08 | |
| Max Aperture Ratio (F number) | Wide | 2.2 |
| Angular Field of View | Horizontal | 187° |
| Vertical | 187° | |
| Diagonal | 187° | |
| Min. Object Distance | 0.5m(1.64ft) |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering |
| Business Intelligence | Normal | People counting, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 2GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+40°C(+14°F~+104°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 7.7W, typical 6.4W |
Mechanical
| Color | White | |
| Material | Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | Ø99x49mm(Ø3.89x1.93") | |
| Product Weight | 370g(0.82lb) |
Certifications & Standards
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP42 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | Wide | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.5m(11.48ft) |
Video
| Imaging Device | Size | 1/2.3" |
| Type | CMOS | |
| Resolution | 3200x800, 3008x3008, 2560x1920, 2560x1280, 2560x640, 1920x1440, 1920x960, 1920x480, 1280x960, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 640x640, 640x480, 640x320 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 5fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.39 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 1.08 | |
| Max Aperture Ratio (F number) | Wide | 2.2 |
| Angular Field of View | Horizontal | 187° |
| Vertical | 187° | |
| Diagonal | 187° | |
| Min. Object Distance | 0.5m(1.64ft) |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering |
| Business Intelligence | Normal | People counting, Heatmap |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 2GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+40°C(+14°F~+104°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 7.7W, typical 6.4W |
Mechanical
| Color | White | |
| Material | Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | Ø99x49mm(Ø3.89x1.93") | |
| Product Weight | 370g(0.82lb) |
Certifications & Standards
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP42 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | Wide | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.5m(11.48ft) |
Accessories
SBP-300LMW
SBP-300WMW1
Discontinued

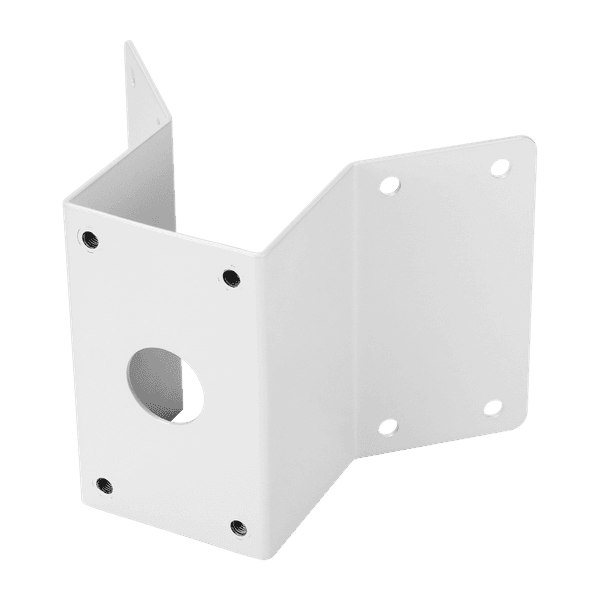

SBP-300KMW
SBP-300BW
Discontinued

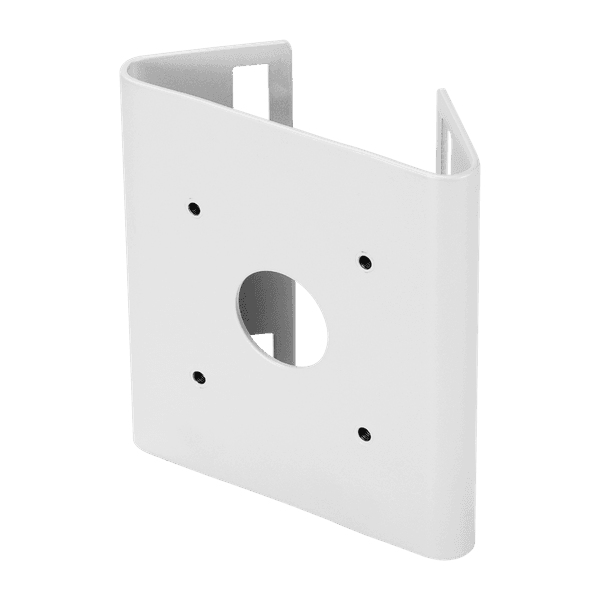

SBP-300PMW
SBP-300WMW
SBP-300NBW
SBP-300CMW
