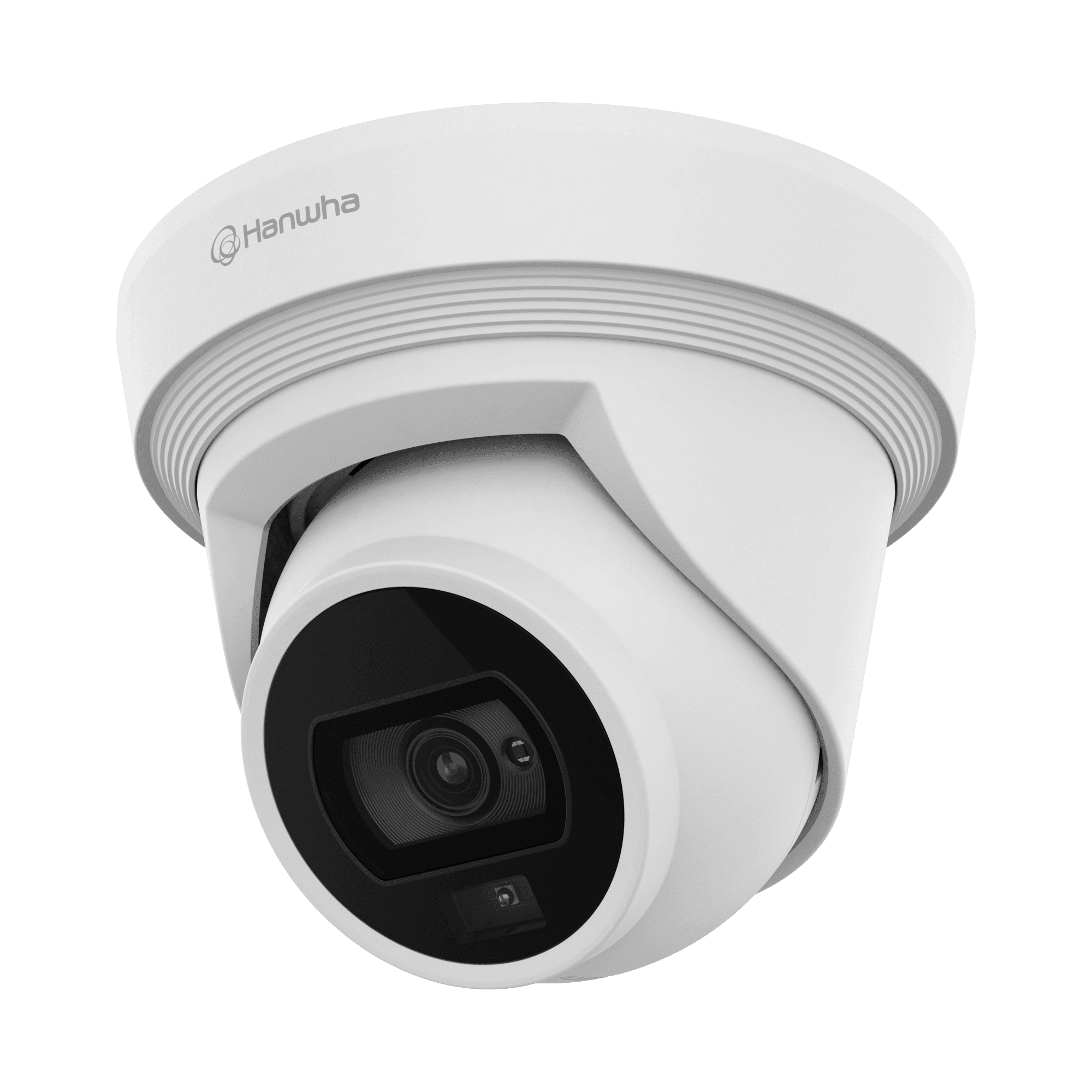

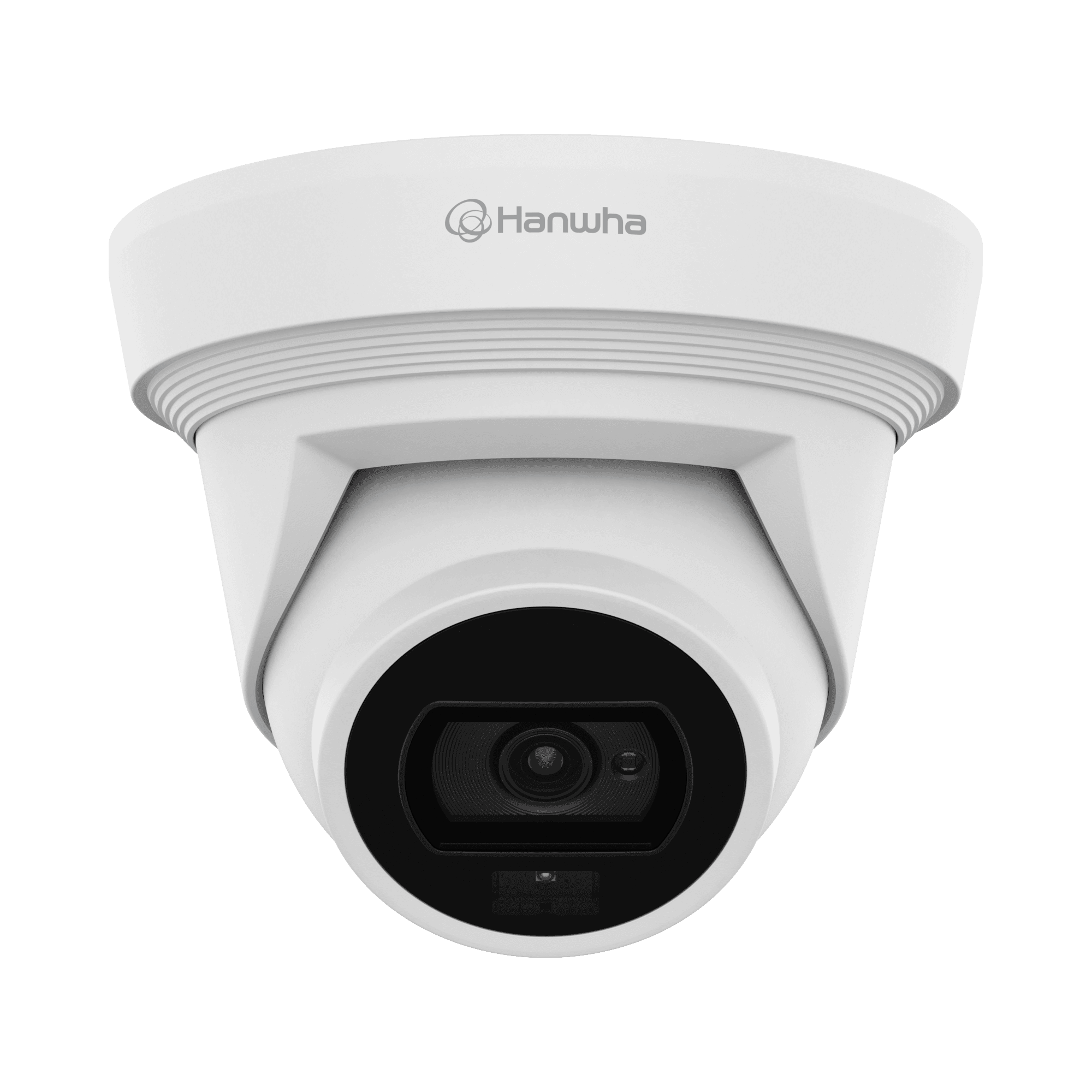

QNE-C8013RL
5MP AI Dual Light Flateye CameraKey Features
• 5MP Image Resolution
• 3.0mm Focal Length
• 30m IR & LED Length
• IP66, IP67, IK10 Rated
• AI based Object Classification
• Color: 0.034Lux, BW: 0.0034Lux
• Integrated IR and White LED
• 3000K Warm white light
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_DE.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_EN.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_ES.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_FR.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_IT.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_PL.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_PT.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_TR.pdf | 2026-08-10 | |
| Manuals | Manuals_QNE-C9013RL,QNE-C8013RL_240925_ZH.pdf | 2026-08-10 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QNE-C8013RL,QNE-C9013RL_240125_EN.dxf | 2026-08-10 | |
| CAD | CAD_QNE-C8013RL,QNE-C9013RL_240125_EN.pdf | 2026-08-10 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_Q_AI_2_14_05_20260407_hva_prod.zip | 2026-08-10 | |
| Firmware | GenetecSecurityCenterSaaS_v_Q_AI_26_06_17_20260617.zip | 2026-08-10 | |
| Firmware | QNE-C8013RL_2.23.10_20260624_R378.zip | 2026-08-10 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QNE-C8013RL_240105_EN.docx | 2026-08-10 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QNE-C8013RL_20260806_EN_182458.pdf | 2026-08-10 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_CS.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_DE.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_EN.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_ES.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_FR.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_IT.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_NL.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_PL.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_PT.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_TR.pdf | 2026-08-10 | |
| Quick Guide | Quick-Guide_QNE-C9013RLQNE-C8013RL_240925_ZH.pdf | 2026-08-10 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QNE-C8013RLQNE-C9013RL_20240110_EN.pdf | 2026-08-10 | |
| Online Help | Online-Help_QNE-C8013RLQNE-C9013RL_20240110_ES.pdf | 2026-08-10 | |
| Online Help | Online-Help_QNE-C8013RLQNE-C9013RL_20240110_FR.pdf | 2026-08-10 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_QNV-C8012%2CQNE-C9013RL%2CQNE-C8013RL%2CTNV-C8011RW%2CQNV-C6083R%2CQNO-C6083R_260215_EN.txt | 2026-08-10 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_QNE-C8013RL%2CQNE-C9013RL_240306_Common.pdf | 2026-08-10 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@5MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.022 |
| BW(1/30sec, 30IRE) | 0.0022 |
Lens
| Focal Length (mm) | 3.0 | |
| Max Aperture Ratio (F number) | Wide | 1.2 |
| Angular Field of View | Horizontal | 97° |
| Vertical | 71° | |
| Diagonal | 130° | |
| Min. Object Distance | 2.0m(6.56ft) | |
| Focus Control | Fixed | |
| Lens Type | Fixed iris | |
| Mount Type | M12 |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~75° | |
| Rotate | 0°~360° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Dynamic Privacy Masking: Color / Option | Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication, Light alarm | |
| Light Type | Warm color, IR LED | |
| Light Viewable Length | Warm Light | 30m(98.42ft) |
| IR | 30m(98.42ft) | |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -30°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 10.0W, typical 4.5W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø140.0x99.6mm(ø5.51x3.92") | |
| Product Weight | 790g(1.74lb) | |
| Compatible Gang Box | Single, Double, 4" Octagon |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 45.9m(150.49ft) |
| Observe (63PPM/ 19PPF) | Wide | 18.3m(60.19ft) |
| Recognize (125PPM/ 38PPF) | Wide | 9.2m(30.09ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.6m(15.05ft) |
