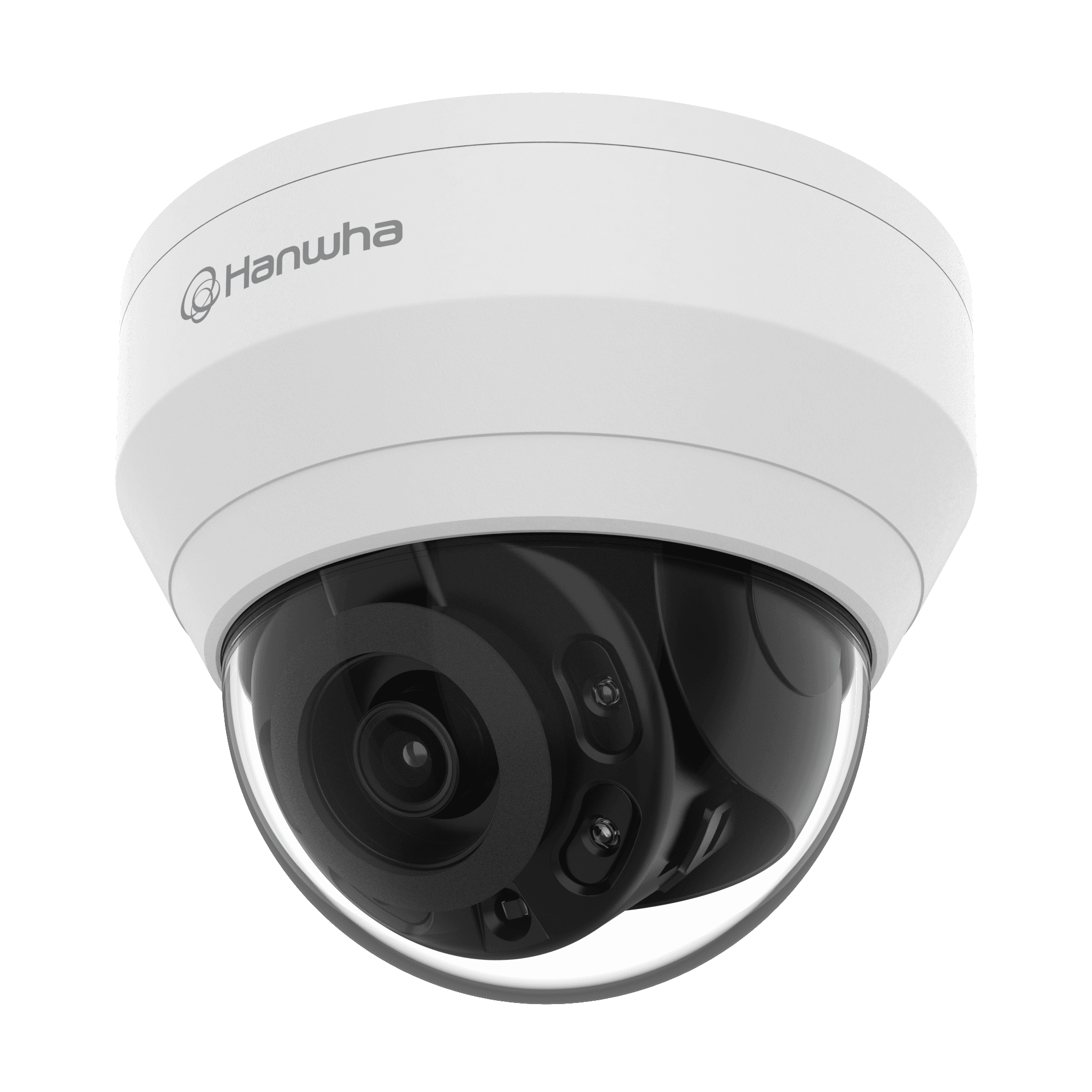

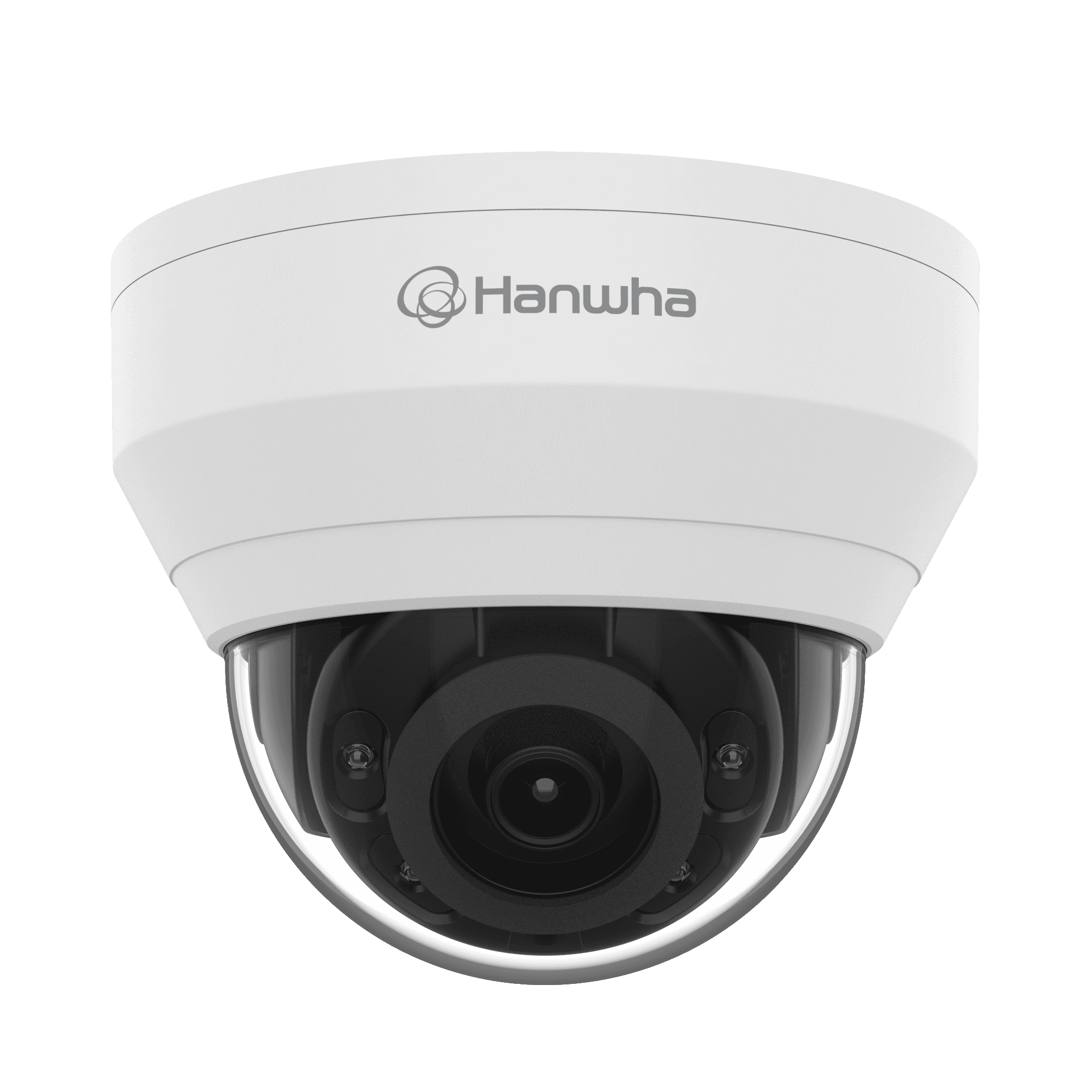

QND-8010R
5M H.265 IR Dome CameraKey Features
• Max. 5Megapixel (2592 x 1944) resolution
• 2.8mm fixed lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day&Night (ICR), WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 20m (65.62ft)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-8010R,QND-8020R,QND-8030R,QND-8080R_240627_TR.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QND-8010RQND-8020RQND-8030R_190417.dxf | 2026-08-06 | |
| CAD | CAD_QND-8010RQND-8020RQND-8030R_190417.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QND-8010R_190617_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230224_EN_EMC_CE.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230315_KO_KC(Safety).pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_QND-8010R_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | QNO-8080R_2.21.03_20260707_R190.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QND-8010R_191231_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QND-8010R_20260806_EN_155413.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_QND-8010R_200814_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_QND-8010R_200814_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-8010RQND-8020RQND-8030RQND-8080R_240627_TR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QNO-8010RQNV-8010RQND-8010RQNO-8020RQNV-8020RQND-8020RQNO-8030RQND-8030RQNV-8030R_190613_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_QNO-8010RQNV-8010RQND-8010RQNO-8020RQNV-8020RQND-8020RQNO-8030RQND-8030RQNV-8030R_190613_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_QNO-8010RQNV-8010RQND-8010RQNO-8020RQNV-8020RQND-8020RQNO-8030RQND-8030RQNV-8030R_190613_FR.pdf | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps(@5MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.15 |
| BW(1/30sec, 30IRE) | 0.015 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 105° |
| Vertical | 77° | |
| Diagonal | 136° | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 20m(65.62ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 7.50W, typical 5.80W |
Mechanical
| Color | White | |
| Material | Aluminum, Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø110.6x89.5mm(ø4.35x3.52") | |
| Product Weight | 360g(0.79 lb) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 40.0m(131.20ft) |
| Observe (63PPM/ 19PPF) | Wide | 16.0m(52.48ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.0m(26.24ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.0m(13.12ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps(@5MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.15 |
| BW(1/30sec, 30IRE) | 0.015 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 105° |
| Vertical | 77° | |
| Diagonal | 136° | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 20m(65.62ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 7.50W, typical 5.80W |
Mechanical
| Color | White | |
| Material | Aluminum, Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø110.6x89.5mm(ø4.35x3.52") | |
| Product Weight | 360g(0.79 lb) |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 40.0m(131.20ft) |
| Observe (63PPM/ 19PPF) | Wide | 16.0m(52.48ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.0m(26.24ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.0m(13.12ft) |
Accessories
SBP-120WMW
SBP-300LMW
SBP-300WMW1
Discontinued
SBP-300KMW
SBP-300BW
Discontinued
SBP-300PMW

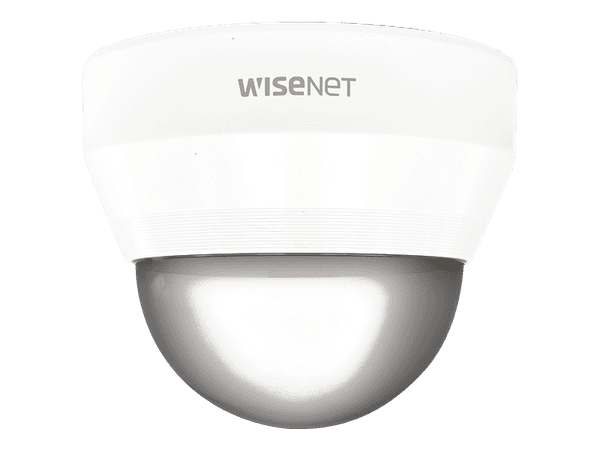

SPB-INW13
SBP-300WMW
SBP-300NBW
SBP-300CMW
SBP-300HMW7
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
Explore official resources, documentation, and insights for Hanwha Vision solutions
© 2026 Hanwha Vision Co., Ltd. All rights Reserved.6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, KOREA
Cookie Policy|Privacy Policy
