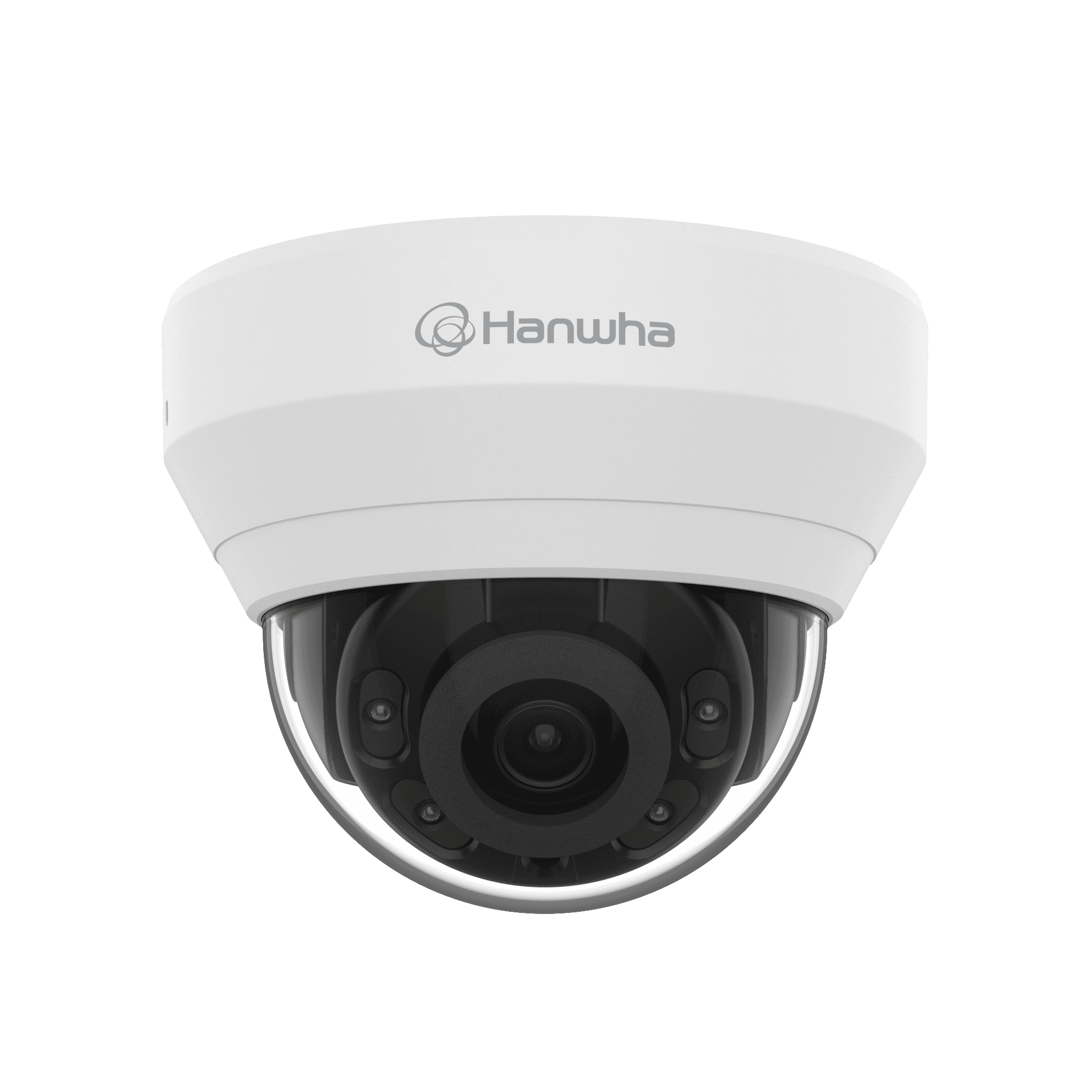

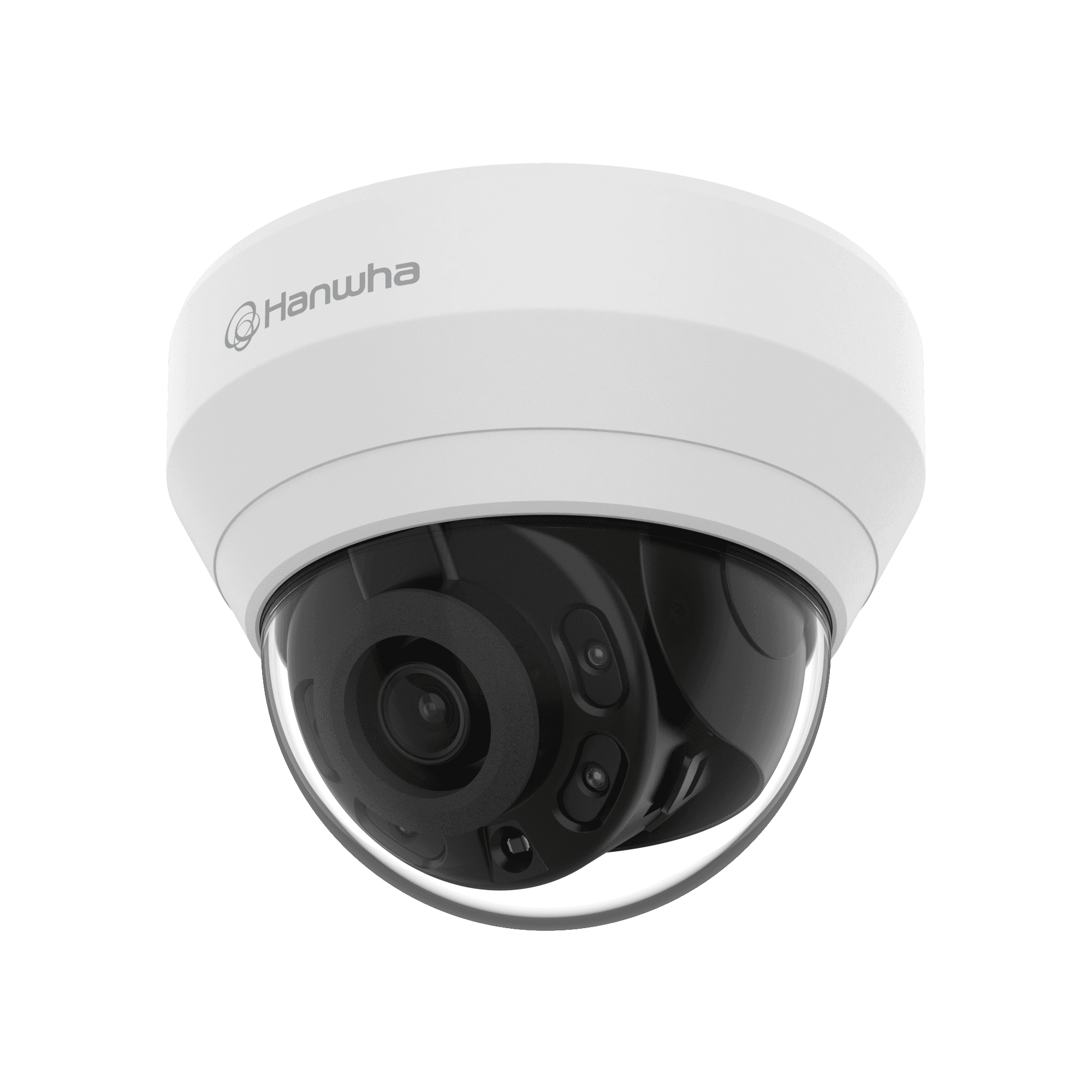

QND-7012R
4MP IR Dome CameraKey Features
• Maximum 4MP resolution
• Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On)
• 2.8mm fixed focal
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (128GB)
• IR viewable length 20m (65.62ft), PoE
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_ZH-TW.pdf | 2026-08-06 | |
| Manuals | Manuals_QND-7012R,QND-7022R,QND-7032R,QND-7082R_250613_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QND-6012RQND-6022RQND-6032R_190417.dxf | 2026-08-06 | |
| CAD | CAD_QND-6012RQND-6022RQND-6032R_190417.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QND-7012R_210824_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230224_EN_EMC_CE,UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230315_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_QND-7012R_230315_KO_Report_KC(TEL).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | QNO-7082R_2.21.02_20260427_R48.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QND-7012R_220217_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QND-7012R_20260806_EN_155117.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_QND-7012RQND-7022RQND-7032RQND-7082R_240704_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QND-7032RQND-7022RQND-7012RQNV-7032RQNV-7022RQNV-7012RQNO-7032RQNO-7022RQNO-7012R_20210105_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_QND-7032RQND-7022RQND-7012RQNV-7032RQNV-7022RQNV-7012RQNO-7032RQNO-7022RQNO-7012R_20210105_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_QND-7032RQND-7022RQND-7012RQNV-7032RQNV-7022RQNV-7012RQNO-7032RQNO-7022RQNO-7012R_20210105_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_QND-7012RQND-7022RQND-7032RQNV-7012RQNV-7022RQNV-7032R_210625_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/3" |
| Type | CMOS | |
| Resolution | 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps(@4MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.15 |
| BW(1/30sec, 30IRE) | 0.015 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 108° |
| Vertical | 60° | |
| Diagonal | 122° | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Built-in mic | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 20m(65.62ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max. 7.9W, typical 6.1W |
| 12VDC | Max. 7.1W, typical 5.10W |
Mechanical
| Color | White | |
| Material | Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø110.0x86.0mm(4.33x3.39") | |
| Product Weight | 255g(0.56lb) | |
| Compatible Gang Box | Single, Double, 4" Octagon |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 37.5m(123.17ft) |
| Observe (63PPM/ 19PPF) | Wide | 15.0m(49.27ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.5m(24.63ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.8m(12.32ft) |
